LM220WE4-SLB2 LG LCD Pane 22.0 inch with 473.76×296.1 mm Active Area
LM220WE4-SLB2 LG LCD Pane 22.0 inch with 473.76×296.1 mm Active Area
Specifications
Brand Name :
LG
Model Number :
LM220WE4-SLB2
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
21.5 inch
Resolution :
1680(RGB)×1050 , WSXGA+
Display Mode :
TN, Normally White, Transflective
Active Area :
473.76×296.1 mm
Outline :
493.7×320.1×17 mm
Description

LM220WE4-SLB2 LG LCD Pane 22.0 inch with 473.76×296.1 mm Active Area

LM220WE4-SLB2 Detail

Panel Size :22.0 inch
Dot Resolution :1680(RGB)×1050 (WSXGA+)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :90 PPI
Aspect Ratio :16:10 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.094×0.282 mm (H×V)
Pixel Pitch :0.282×0.282 mm (H×V)
Weight :2.37/2.49Kgs (Typ./Max.)
Surface :Antiglare, Hard coating (3H)
Active Area :473.76×296.1 mm (H×V)
Bezel Area :477.8×300.1 mm (H×V)
Outline Dimension :497.7×320.1 mm (H×V)
Outline Depth :35.7 (Typ.) mm
Holes & Brackets :Side mounting holes (9-M3)
Landscape or Portrait :Landscape type
Touch Panel :Without


Competitive Advantage:
1. We are a leading vendor & distributor for the LCD panels for more than 6 years.
2. We got the ISO9001 quality management system certification.
3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.
4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.
5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.
6. 1-year warranty is offered.
7. All LCD Panel will be tested before shipment.
8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.

Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

Here comes our other LCD panels stock for your easy reference:
Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
LH500M01-SH02LG Display5.0"540×960
LH500WX5-SH01LG Display5.0"720×1280
LH500WX9-SH01LG Display5.0"720×1280
LH550WX1-SH03LG Display5.5"720×1280
LC550DUK-SGK2LG Display55"1920×1080
LH400WV8-SH01LG Display4.0"480×800
LH500WF3-SH01LG Display5.0"1080×1920
LC550DPY-SHA1LG Display55"1920×1080
LC420DUJ-FFE2LG Display42"1920×1080
LH470WX3-SH05LG Display4.7"720×1280
LC550DUY-SHA2LG Display55"1920×1080
LC650EGY-SHM1LG Display65"3840×2160

Display Mode :IPS, Normally Black, Transmissive
Brightness :300 cd/m² (Typ.)
Contrast Ratio :1000 : 1 (Typ.) (Transmissive)
Display Color :16.7M (8-bit)
Color Gamut :72% NTSC (CIE1931)
Response Time :6 (Typ.)(G to G)
Viewing Angle :89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :Symmetry
White color Chromaticity :Wx:0.313; Wy:0.329
White Variation :1.33 (Max.)(9 points)
Sunlight Readable :N

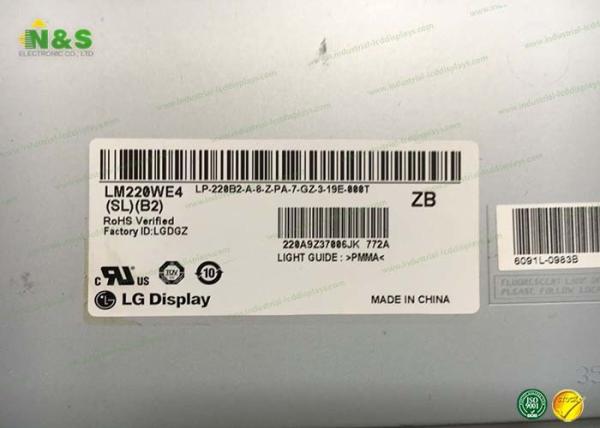

LM220WE4-SLB2 Picture

LM220WE4-SLB2 LG LCD Pane 22.0 inch with 473.76×296.1 mm Active Area
