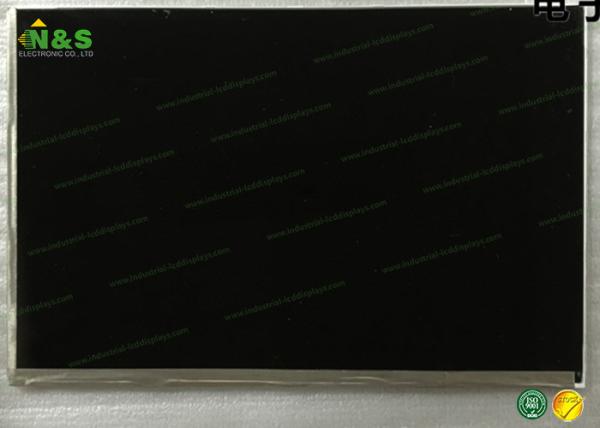

CLAA101WJ01 TFT LCD Module CPT Normally Black 10.1 inch LCM 1366×768 450 with 223.341×125.568 mm
CLAA101WJ01 TFT LCD Module CPT Normally Black 10.1 inch LCM 1366×768 450 with 223.341×125.568 mm
Specifications
Brand Name :
CPT
Model Number :
CLAA101WJ01
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
Western Union, T/T, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
10.1 inch
Resolution :
1366(RGB)×768 , WXGA
Display Mode :
HFFS, Normally Black, Transmissive
Active Area :
223.341×125.568 mm
Outline :
234.53×138.97×4.6 mm
Description

CLAA101WJ01 TFT LCD Module CPT Normally Black 10.1 inch LCM 1366×768 450 with 223.341×125.568 mm

CLAA101WJ01 Information

Panel Size : 10.1 inch
Dot Resolution : 1366(RGB)×768 (WXGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 155 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0545×0.1635 mm (H×V)
Pixel Pitch : 0.1635×0.1635 mm (H×V)
Weight : 115g (Max.)
Surface : Hard coating
Active Area : 223.341×125.568 mm (H×V)
Outline Dimension : 234.53×138.97 mm (H×V)
Outline Depth : 2.4/4.6 (Typ./Max.) mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel : Without
Display Mode : HFFS, Normally Black, Transmissive
Brightness : 450 cd/m² (Typ.)
Contrast Ratio : 800 : 1 (Min.) (Transmissive)
Display Color : 16.7M (8-bit)
Color Gamut : 50% NTSC (CIE1931)
Response Time : 30 (Typ.)(Tr+Td)
Viewing Angle : 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction : Symmetry
White color Chromaticity : Wx:0.313; Wy:0.329
White Variation : 1.25/1.33 (Max.)(5/13 points)
Sunlight Readable : N

Quality Control:

1.Visual Inspection

Make sure No damage, No Scratches, No dusty, No light leakage.

2. Function Inspection

Make sure all functions are 100% tested ok

FAQ

1. Q: Where can I get the price?

A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.

2. Q: How can I get a sample to check your quality?

A: After price confirmation, you can require for samples to check our quality.

3. Q: What about the lead time for mass production?

A: It depends on your order quantity and the season you place the order.

4. Q: What are your terms of payment?

A: We accept T/T, Western Union, MoneyGram, PayPal.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
CLAN070NQ06 CPT 7.0" 1024×600
CLAN060WA41 2XB CPT 6.0" 720×1280
CLAN089WA02 XN CPT 8.9" 800×1280
CLAF050WH41 CPT 5.0" 720×1280
CLAN089WA02 XN CPT 8.9" 800×1280
CLAN089WA02 XN CPT 8.9" 800×1280
