Normally Black M236HNJ-L55 Innolux LCD Panel 23.6 inch with 521.28×293.22 mm
Normally Black M236HNJ-L55 Innolux LCD Panel 23.6 inch with 521.28×293.22 mm
Normally Black M236HNJ-L55 Innolux LCD Panel 23.6 inch with 521.28×293.22 mm
Normally Black M236HNJ-L55 Innolux LCD Panel 23.6 inch with 521.28×293.22 mm
Normally Black M236HNJ-L55 Innolux LCD Panel 23.6 inch with 521.28×293.22 mm
Normally Black M236HNJ-L55 Innolux LCD Panel 23.6 inch with 521.28×293.22 mm
Normally Black M236HNJ-L55 Innolux LCD Panel 23.6 inch with 521.28×293.22 mm
Normally Black M236HNJ-L55 Innolux LCD Panel 23.6 inch with 521.28×293.22 mm
Normally Black M236HNJ-L55 Innolux LCD Panel 23.6 inch with 521.28×293.22 mm
Normally Black M236HNJ-L55 Innolux LCD Panel 23.6 inch with 521.28×293.22 mm
Specifications
Brand Name :
Innolux
Model Number :
M236HNJ-L55
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
Innolux
Panel Model :
M236HNJ-L55
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
23.6 inch
Resolution :
1920(RGB)×1080 , FHD
Display Mode :
MVA, Normally Black, Transmissive
Description

Normally Black M236HNJ-L55 Innolux LCD Panel 23.6 inch with 521.28×293.22 mm

M236HNJ-L55 Product Information

Panel Brand : INNOLUX
Panel Model : M236HNJ-L55
Panel Type : a-Si TFT-LCD , LCM
Panel Size : 23.6 inch
Resolution : 1920(RGB)×1080 , FHD
Display Mode : MVA, Normally Black, Transmissive
Active Area : 521.28×293.22 mm
Outline : 544.8×320.5×11.5 mm
Surface : Antiglare (Haze 25%), Hard coating (3H)
Brightness : 250 cd/m² (Typ.)
Contrast Ratio : 3000:1 (Typ.)
Display Colors : 16.7M (8-bit) , CIE1931 95%
Response Time : 16/5 (Typ.)(Tr/Td)
Viewing Angle : 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D)
Frequency : 60Hz
Lamp Type : 4 strings WLED Without Driver
Signal Interface : LVDS (2 ch, 8-bit) , 30 pins
Input Voltage : 5.0V (Typ.)

What is Our Advantage?

1. We are the professional supplier of the industrial LCD Screen Replacements, located in the biggest components center of the world.

2. We can provide the one-stop purchase service.

3. Our clients can grow their business by focusing on their sales, ware-housing and distribution while we take care of their China buying.

4. Client relationship and production management are the key factors that ensure successful China buying. Your account will be managed by our professional project managers.

5. Fast delivery.

6. Reasonable price.

FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

Panel Size : 23.6 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 93 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0905×0.2715 mm (H×V)
Pixel Pitch : 0.2715×0.2715 mm (H×V)
Weight : 2.19/2.30Kgs (Typ./Max.)
Surface : Antiglare (Haze 25%), Hard coating (3H)
Active Area : 521.28×293.22 mm (H×V)
Bezel Area : 525.22×297.22 mm (H×V)
Outline Dimension : 544.8×320.5 mm (H×V)
Outline Depth : 11.5 (Max.) mm
Landscape or Portrait : Landscape type
Touch Panel : Without

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
P079ZCZ-3Z2 Innolux 7.9" 768×1024
M315DJJ-Q01 Innolux 31.5" 3840×2160
V320BJ6-Q01 Innolux 31.5" 1366×768
V650DK2-QS2 Innolux 65" 3840×2160

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

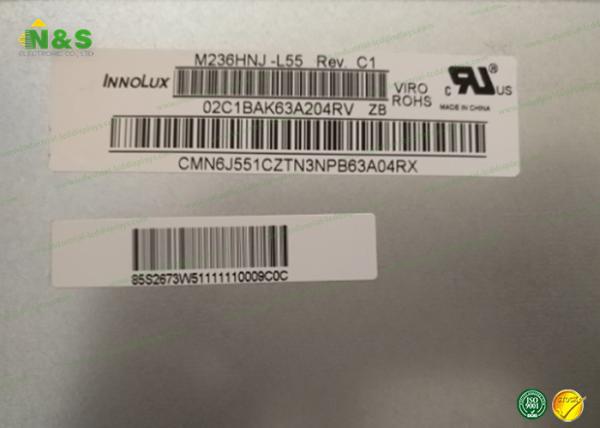

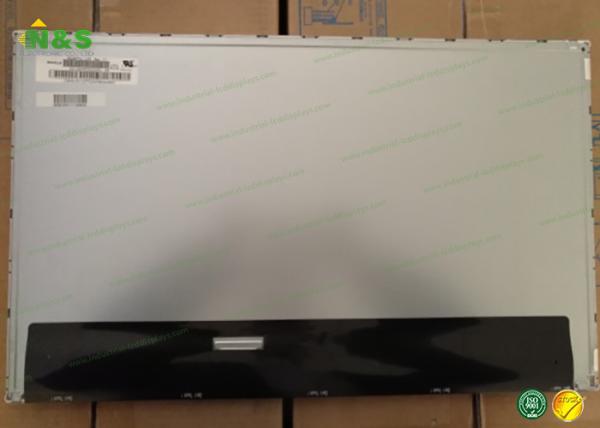

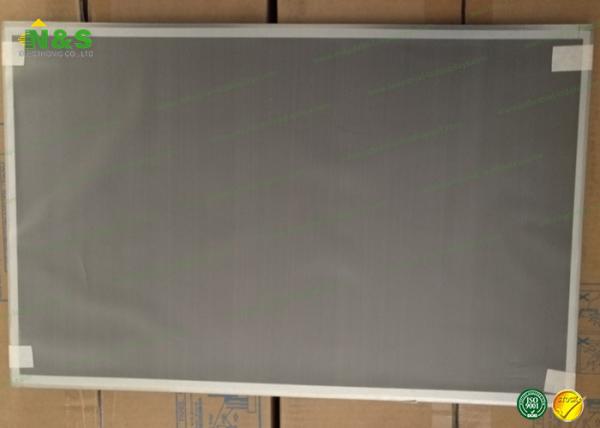

M236HNJ-L55 Picture
