Specifications
Brand Name :
Samsung
Model Number :
LTM230HP01
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size : :
23.0 inch
Active Area : :
509.76×286.74 mm
Outline : :
534×311.7 mm
Display Colors : :
16.7M (6-bit + Hi-FRC) , CIE1931 72%
Description

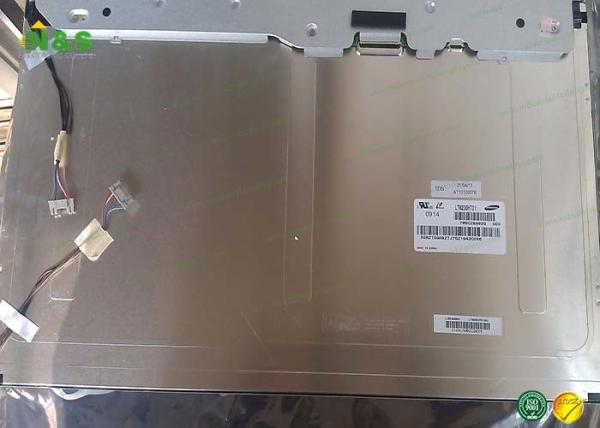

LTM230HP01 Samsung 23.0 inch with Normally Black a-Si TFT-LCD

LTM230HP01 Information

Panel Size : 23.0 inch
Dot Resolution : 1920(RGB)×1080 (FHD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 95 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0885×0.2655 mm (H×V)
Pixel Pitch : 0.2655×0.2655 mm (H×V)
Weight : 3.00Kgs (Max.)
Surface : Antiglare (Haze 44%), Hard coating (3H)
Active Area : 509.76×286.74 mm (H×V)
Bezel Area : 513.8×290.8 mm (H×V)
Outline Dimension : 534×311.7 mm (H×V)
Outline Depth : 18.9 (Max.) mm
Holes & Brackets : Side mounting holes
Landscape or Portrait : Landscape type
Touch Panel : Without

Our service

1. Agent Brand:

* Our sourcing line contained but not limited to Samsung, LG, Sharp, AUO, Tianma, Chimei, Hannstar, Innolux, BOE and more bands tft lcd moulds from 2010, you can get the most competitive price for real products;

2. Quality to be guaranteed:

* All the panels are 100% original and brand new, no fake panels exists.Take the lcd screen from us, you can enjoy the real panels directly from original factory;

* Original package and Seal for batch orders, all the products are in original package from original factory directly, and all the LCD panels packages have labels and serial number, you can check them;

3. Quickly delivery:

* We also have international logistic center in Hongkong to support your batch orders to be delivered from Hongkong directly.

4. long-term partner:

* Products are sold to more than 20 countries.

5. Super After-Sale service:

* One year warranty .

6. The best TFT LCD solution:

*more tft lcd model detail information for the LCD screens including size, resolution, brightness, operating temperature or life time etc in our web site.

FAQ

Q1: How do we place an order?

A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.

Q2: How do we make the payment?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: What's the delivery time?

A3: The delivery time is normally 1-3 working days after payment.

Q4: How would the goods be shipped?

A4: We ship via DHL, UPS, TNT and others.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AMS465GS01 Samsung 4.7" 720×1280
AMS529HA01 Samsung 5.3" 800×1280
AMS397GE02 Samsung 4.0" 480×800
AMS427GL03 Samsung 4.3" 480×800
AMS395GB01 Samsung 4.0" 360×640
AMS395GB02 Samsung 4.0" 360×640
AMS353FD09-0 Samsung 3.5" 480×800
AMS369FG06-0 Samsung 3.7" 480×800
LSC550FN19-W Samsung 55" 3840×2160

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk

LTM230HP01 Information

Lamp Position : Edge light type (Top and Bottom)
Lamp Type : CCFL
Lamp Amount : 4 pcs
Lamp Shape : Straight
Lamp Life Time : 50K(Min.) (Hours)
Lamp Voltage : 750/840/890V (Min./Typ./Max.)
Lamp Current : 3.0/6.5/8.0mA (Min./Typ./Max.)
Lamp Operating Frequency : 40/60/80KHz (Min./Typ./Max.)
Lamp Startup Voltage : 1400/1700V (Max.)(Ta=+25/0℃)
Interface Type : Connector
Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
JST BHSR-02VS-1 3.5 mm 2 pins 4 pcs BLL-2PINS-HL
Lamp Driver Board : No
