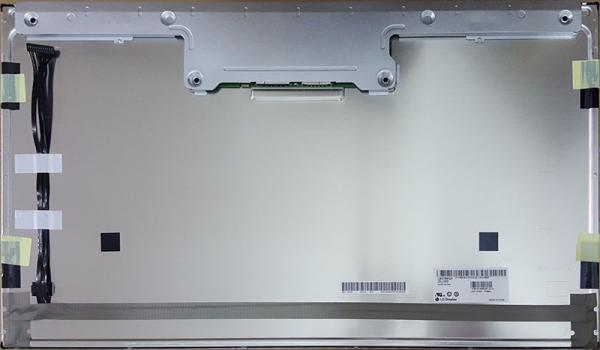

LTM270DL02 Samsung 27.0 inch LCM 2560×1440 with 596.736×335.664 mm
LTM270DL02 Samsung 27.0 inch LCM 2560×1440 with 596.736×335.664 mm
Specifications
Brand Name :
Samsung
Model Number :
LTM270DL02
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1 Piece
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size : :
27.0 inch
Resolution : :
2560(RGB)×1440 , Quad-HD
Active Area : :
596.736×335.664 mm
Outline : :
630×368.2×16.1 mm
Surface : :
Antiglare (Haze 42%), Hard coating (3H)
Brightness : :
300 cd/m² (Typ.)
Description

LTM270DL02 Samsung 27.0 inch LCM 2560×1440 with 596.736×335.664 mm

LTM270DL02 Specification

Panel Size : 27.0 inch
Dot Resolution : 2560(RGB)×1440 (Quad-HD)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 108 PPI
Aspect Ratio : 16:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0777×0.2331 mm (H×V)
Pixel Pitch : 0.2331×0.2331 mm (H×V)
Weight : 3.20Kgs (Max.)
Surface : Antiglare (Haze 42%), Hard coating (3H)
Active Area : 596.736×335.664 mm (H×V)
Bezel Area : 601.7×340.7 mm (H×V)
Outline Dimension : 630×368.2 mm (H×V)
Outline Depth : 13.6/16.1 (Typ./Max.) mm
Holes & Brackets : Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait : Landscape type
Touch Panel : Without

LTM270DL02 Specification

Lamp Position : Edge light type (Bottom side)
Lamp Type : WLED
Lamp Amount : 16S4P
Lamp Shape : 4 strings
Lamp Life Time : 30K(Min.) (Hours)
Lamp Voltage : 66/70V (Typ./Max.)
Lamp Current : 440/480mA (Typ./Max.)
Lamps Power Consumption : 25.34W (Typ.)
Interface Type : Connector
Interface Position :
Backlight Interface Brand Model Pin Pitch Pins Amount Configuration
molex 104078-0610 1.25 mm 6 pins 1 pcs BLE-6PINS-CCAACC
Lamp Driver Board : No

FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

The reasons you choose us

1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
AMS302AK03 Samsung 3.0" 720×480
AMS353FD01-0 Samsung 3.5" 480×800
AMS499QP89-0 Samsung 5.0" 1080×1920
AMS529BY03 Samsung 5.3" 1080×1920
SDC 1.63 320×320 Samsung 1.63" 320×320
AMS499QP42-0 Samsung 5.0" 1080×1920

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
