LQ201U1LW31 SHARP Medical LCD Displays a-Si TFT-LCD 20.1 inch 1600×1200 Antiglare Surface
LQ201U1LW31 SHARP Medical LCD Displays a-Si TFT-LCD 20.1 inch 1600×1200 Antiglare Surface
LQ201U1LW31 SHARP Medical LCD Displays a-Si TFT-LCD 20.1 inch 1600×1200 Antiglare Surface
LQ201U1LW31 SHARP Medical LCD Displays a-Si TFT-LCD 20.1 inch 1600×1200 Antiglare Surface
LQ201U1LW31 SHARP Medical LCD Displays a-Si TFT-LCD 20.1 inch 1600×1200 Antiglare Surface
LQ201U1LW31 SHARP Medical LCD Displays a-Si TFT-LCD 20.1 inch 1600×1200 Antiglare Surface
Specifications
Brand Name :
SHARP
Model Number :
LQ201U1LW31
Certification :
ISO9001
Place of Origin :
Japan
MOQ :
1
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
LQ201U1LW31
Panel Brand :
SHARP
Descrition :
1600×1200
Panel Type :
a-Si TFT-LCD
Active Area :
408×306 mm
Outline :
436×335×21.2 mm
Description

LQ201U1LW31 SHARP a-Si TFT-LCD ,20.1 inch, 1600×1200 for 60Hz

LQ201U1LW31 Basic Information

Panel Model LQ201U1LW31
Panel Brand SHARP
Descrition a-Si TFT-LCD ,20.1 inch, 1600×1200
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 60 °C
Storage Temperature -25 ~ 60 °C

Packaging & Delivery

Packaging: Safety Package For all of our LCD Screen Panel Replacements.

Details: 1. Antistatic bag

2. Layers of cartons

3. Foam Box

4. Carton Box.

LQ201U1LW31 Mechanical Features

Dot Resolution 1600(LCR)×1200 (UXGA)
Pixel Configuration LCR Vertical Stripe
Pixel Density 99 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.085×0.255 mm (H×V)
Pixel Pitch 0.255×0.255 mm (H×V)
Weight 2.4Kgs (Max.)
Surface Antiglare, Hard coating (2H)
Active Area 408×306 mm (H×V)
Bezel Area 413.2×311.2 mm (H×V)
Outline Dimension 436×335 mm (H×V)
Outline Depth 21.2 (Max.) mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

Our Services

1. Quick and accurate reply with best service attidue to our business

2. Pofessional advise

3. Quick PI confirmation

4. Close production follow up and production process feedback

LQ201U1LW31 Optical Features

Display Mode ASV, Normally Black, Transmissive
Brightness 1000 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (Transmissive)
Display Color Grayscale (8-bit)
Response Time 30 (Typ.)(Tr+Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.300; Wy:0.320
White Variation 1.25 (Max.)(5 points)
Sunlight Readable Y

Packing& Shipping:
Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).
Guarantee:
(1) All items will be strictly tested and shipped with strong package.
(2) We have 3~6months warranty for every item, depend on the different item.
(3) We will do our best to solve any possible problem for your after sale. Please contact with us.

LQ201U1LW31 Electronics Feature

Vertical Frequency 60Hz
Reverse Scan No

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
LM121VB1T02 SHARP 12.1" 640×480
LM121VB1T01 SHARP 12.1" 640×480
LM32015T SHARP 5.7" 320×240
LM8V302D SHARP 7.7" 640×480
LM104VC1T51 R SHARP 10.4" 640×480
LM104VC1T51 SHARP 10.4" 640×480
LM7M632R SHARP 6.5" 640×240
LM64P30R SHARP 9.4" 640×480

We also have other industrial LCD panels, pls contact to us for the further information

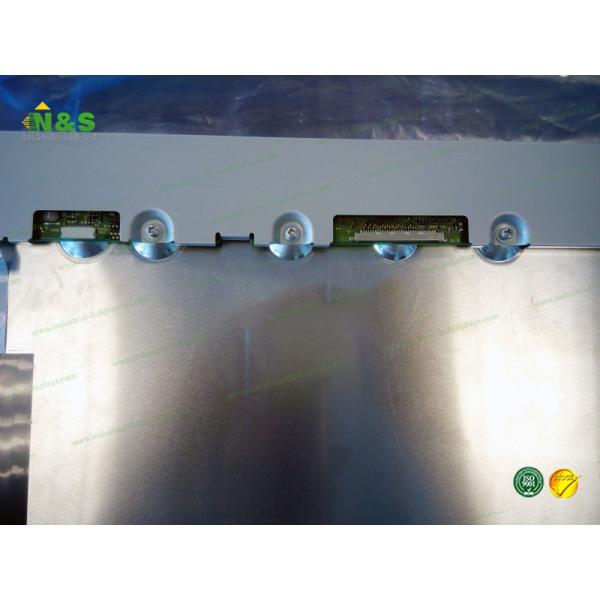

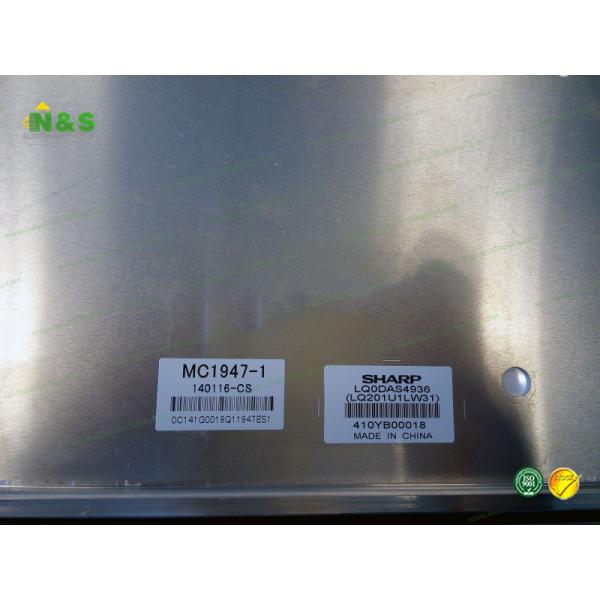

LQ201U1LW31 pictures
