Specifications
Brand Name :
IVO
Model Number :
M140NWR2 R1
Certification :
ISO9001
Place of Origin :
korea
MOQ :
1
Payment Terms :
Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 Working Days after order confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Brand :
IVO
Panel Model :
M140NWR2 R1
Panel Type :
a-Si TFT-LCD
Outline :
323.5×192×5.2 mm
Frequency :
60Hz
Input Voltage :
3.3V (Typ.)
Description

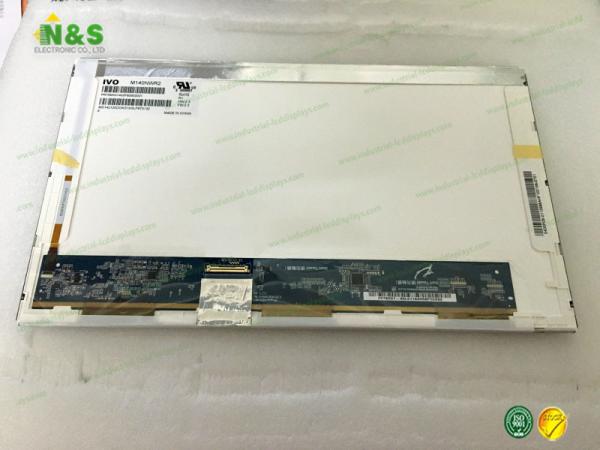

Normally Black M140NWR2 R1 resoluton 1366×768 Outline 323.5×192×5.2 mm Frequency 60Hz

M140NWR2 R1 Basic Information

Panel Model M140NWR2 R1
Panel Brand IVO
Descrition a-Si TFT-LCD ,14.0 inch, 1366×768
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C
Remarks Dynamic Backlight

M140NWR2 R1 Mechanical Features

Dot Resolution 1366(RGB)×768 (WXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 112 PPI
Aspect Ratio 16:9 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0755×0.2265 mm (H×V)
Pixel Pitch 0.2265×0.2265 mm (H×V)
Weight 355g (Max.)
Surface Glare (Haze 0%), Hard coating
Active Area 309.399×173.952 mm (H×V)
Bezel Area 312.40×176.95 mm (H×V)
Outline Dimension 323.5×192 mm (H×V)
Outline Depth 5.2 (Max.) mm
Shape Style Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets Side mounting holes (6-M2) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without

M140NWR2 R1 Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Color Gamut 45% NTSC (CIE1931)
Response Time 8 (Typ.)(Tr+Td)
Viewing Angle 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.49 (Max.)(5/13 points)
Sunlight Readable N

We Can Do for You:

1) One-to-one service with efficient & professional support;

2) Protection of your design and all your private information;

3) We could supply different hard disk for you.

4) Quality stability, can to provide certification of products;

5) Convenient payment methods: PayPal, T/T and Western Union;

6) Speedy shipment: we could arrange the shipment within 1-3 business days.

7) Quality & Service: Our priority has always been providing our clients with great quality products and superior customer service.

8) Unbeatable Prices: We continuously strive to find ways of reducing our production costs, and passing the savings to you.

Our Advantage

As one of the biggest multiple electronic components & LCD panel distributors in China, we are expert in plenty of branded LCD panels, products include but not limited to:

  1. AUO LCD Screen
  2. Samsung LCD Display
  3. LG LCD Screen replacements
  4. Sharp LCD panels &Chimei LCD Parts.
  5. Innolux LCD Modules & BOE LCD Screen.

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel Model Brand Size Resolution
C050SWZ9 R1 IVO 5.0" 540×960
C050SWY2-3 IVO 4.9" 480×854
C050SWY2-1 IVO 4.9" 480×854
C045SWY2-0 IVO 4.5" 480×854
C046SWN1-0 IVO 4.6" 480×854
C028SN21-1 IVO 2.8" 240×320
C020SN91 IVO 2.0" 176×220
C054SWZ5 IVO 5.4" 540×960
