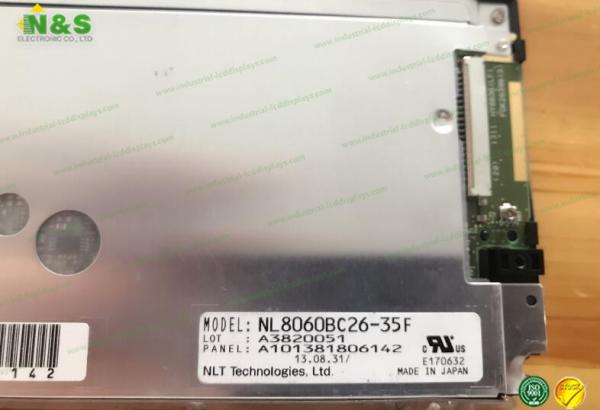

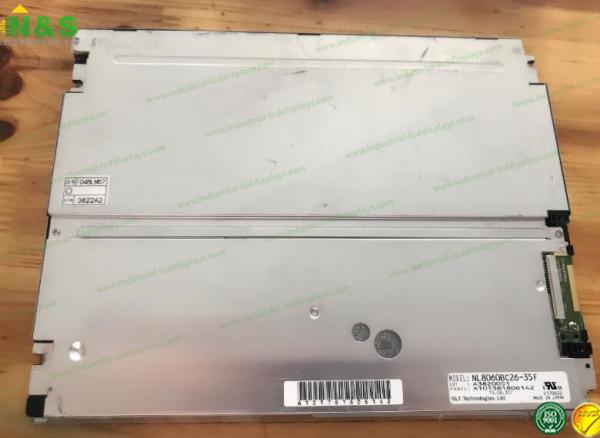

NL8060BC26-35f 800*600 TFT LCD MODULE Normally White 10.4 inch Surface Clear, Hard coating (3H)
NL8060BC26-35f 800*600 TFT LCD MODULE Normally White 10.4 inch Surface Clear, Hard coating (3H)
NL8060BC26-35f 800*600 TFT LCD MODULE Normally White 10.4 inch Surface Clear, Hard coating (3H)
NL8060BC26-35f 800*600 TFT LCD MODULE Normally White 10.4 inch Surface Clear, Hard coating (3H)
Specifications
Brand Name :
NLT
Model Number :
NL8060BC26-35f
Certification :
ISO9001
Place of Origin :
Korea
MOQ :
1
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
100 PCS / DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size :
10.4 inch
Resolution :
800*600
Aspect Ratio :
4:3 (H:V)
Dot Pitch :
0.088×0.264 mm (H×V)
Description

NL8060BC26-35f 800*600 TFT LCD MODULE Normally White 10.4 inch Surface Clear, Hard coating (3H)

NL8060BC26-35F Basic Information

Panel Model NL8060BC26-35F
Panel Brand NEC
Descrition a-Si TFT-LCD ,10.4 inch, 800×600
Panel Type a-Si TFT-LCD
Operating Temperature -30 ~ 80 °C
Storage Temperature -30 ~ 80 °C
Vibration Resistance 2.0G (19.6 m/s²)
Remarks ColorXcell

NL8060BC26-35F Optical Features

Display Mode TN, Normally White, Transmissive
Brightness 800 cd/m² (Typ.)
Contrast Ratio 900 : 1 (Typ.) (Transmissive)
Display Color 262K/16.7M (6-bit / 6-bit + Hi-FRC)
Color Gamut 40% NTSC (CIE1931)
Response Time 3/15 (Typ.)(Tr/Td)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction 6 o'clock
White color Chromaticity Wx:0.313; Wy:0.329
White Variation 1.25/1.40 (Typ./Max.)(5 points)
Sunlight Readable Y

NL8060BC26-35F Electronics Feature

Vertical Frequency 60Hz
Reverse Scan Yes (180°)
Total Power Consumption 6.3W (Typ.)

FAQ

Q1: Can I place sample order first?

A1: Yes, we will quote you different prices for small, medium and large qty. You can order with different price for different qty.

Q2: How could I pay them?

A2: We accept T/T, Western Union, MoneyGram, Paypal.

Q3: How to place the order?

A3: Please send us your purchase order by e-mail, whatsapp or Skype or you can ask us to send you a Proforma Invoice for your order.

Q4: How long can I get my order?

A4: For samples, we will finish production and ship within 1-3 working days. For bulk orders, that will base on the order quantity.

Q5: How to send us the products?

A5: We usually use DHL, UPS, FedEx to ship our LCD screen replacements to our clients.

Packaging & Delivery

Packaging Details: Safe & Professional packing or as requirement for the LCD Screen replacements.

Delivery Detail: 2-3 days after receipt of payment

Payment terms: We accept T/T, PayPal, Western Union and others.

Below are our other LCD panels stock for your easy reference:

We also have other industrial LCD panels, pls contact to us for the further information:

Panel Model Brand Size Resolution
H500TLB01.0 AUO 5.0" 720×1280
AMS302AK03 Samsung 3.0" 720×480
AMS353FD01-0 Samsung 3.5" 480×800
X546DLB01.0 AUO 5.5" 1080×1920
H546DLB01.1 AUO 5.5" 1080×1920
E499HAM1 EDO 5.0" 720×1280
H429ALN01 V0 AUO 4.3" 540×960
AE320480C0FET00 AMPIRE 3.5" 320×480
H139BLN01.1 AUO 1.39" 400×400
