Long Backlight Life 2.7 Inch NL2432HC17-04B NEC Lcd Panel Edge Light Type Lamp Position
Long Backlight Life 2.7 Inch NL2432HC17-04B NEC Lcd Panel Edge Light Type Lamp Position
Specifications
Brand Name :
NEC
Model Number :
NL2432HC17-04B
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, Paypal, Western Union, MoneyGram
Supply Ability :
500PCS/DAY
Delivery Time :
2-3 working days after payment confirmation
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Model :
NL2432HC17-04B Compatible model
Panel Size :
2.7 inch
Resolution :
240(RGB)×320 , QVGA
Display Mode :
UA-SFT, Normally Black, Transmissive
Contrast Ratio :
150:1 (Typ.)(Transmissive) 15:1 (Typ.)(Reflective)
Brightness :
120 cd/m² (Typ.)
Description

Long Backlight Life 2.7 Inch NL2432HC17-04B NEC Lcd Panel Edge Light Type Lamp Position

Technical parameters for NL2432HC17-04B:

1. Panel Type : a-Si TFT-LCD , Panel
2. Display Mode : TN, Normally White, Transflective
3. Active Area : 41.04×54.72 mm
4. Outline : 50.54×68.62 mm
5. Surface : Clear, Hard coating (3H)
6. Display Colors : 262K (6-bit) , CIE1931 40%
7. Response Time : 7/23 (Typ.)(Tr/Td)
8. Viewing Angle : 30/30/35/30 (Typ.)(CR＞5) (L/R/U/D)
9. Frequency : 60Hz
10. Lamp Type : 4S1P WLED Without Driver
11. Signal Interface : CMOS (1 ch, 6-bit) + SPI , 45 pins
12. Input Voltage : 3.0V (Typ.)

Descriptions for NEC NL2432HC17-04B:

<

Panel Model: NL2432HC17-04B Compatible model
Brightness : 120 cd/m² (Typ.)
Contrast Ratio : 150 : 1 (Typ.) (Transmissive)
Contrast Ratio : 15:1 (Typ.) (Reflective)
Display Color : 262K (6-bit)
Color Gamut : 40% NTSC (CIE1931)
Response Time : 7/23 (Typ.)(Tr/Td)
Viewing Angle : 30/30/35/30 (Typ.)(CR＞5) (L/R/U/D)
Viewing Direction : 12 o'clock
White color Chromaticity : Wx:0.310; Wy:0.330
White Variation : 1.43/1.67 (Typ./Max.)(9 points)
Reflectance Ratio : 25/35% (Min./Typ.)
Sunlight Readable : Sunlight Readable

Backlight System:

Industrial standard- and semi-custom panels also available as complete display-kit solution including Display Solutions developed high quality and long-term available TFT LCD panel or Touch Screen.

<

Lamp Position : Edge light type
Lamp Type : WLED
Lamp Amount : 4S1P
Lamp Shape : 1 string
Lamp Voltage : 12.8/14.0V (Typ./Max.)
Lamp Current : 20/22mA (Typ./Max.)
Lamps Power Consumption : 256mW (Typ.)
Interface Type : Included in panel signal interface
Lamp Driver Board : No

NEC NL2432HC17-04B Electronics Feature:

Vertical Frequency : 60Hz
Reverse Scan : No
Total Power Consumption : 301mW (Typ.)
Time Controller (T-CON) : Embedded T-CON

LCD panels are sourced directly from manufacturers, OEM/CM's and worldwide business partners spanning five continents that include 40 countries, United States, Italy, Singapore, Korea, Taiwan, Germany, Thailand, Malaysia, Japan, etc. There are more than 540 enterprises. With our strong sourcing team and sufficient stock in our warehouse, and our professional Quality Control team and professional testing instruments, we can offer reliable quality panels at competitive price.

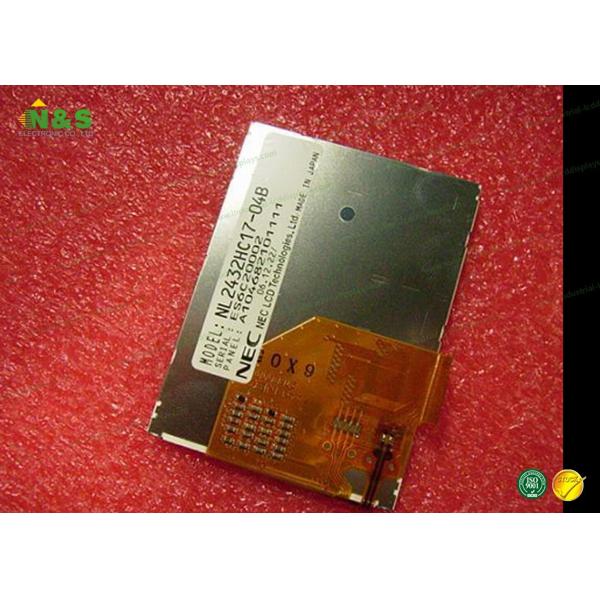

Picture of NEC NL2432HC17-04B :

Long Backlight Life 2.7 Inch NL2432HC17-04B NEC Lcd Panel Edge Light Type Lamp Position
