All-Aluminum Industrial Fanless Box PC, IBC6
All-Aluminum Industrial Fanless Box PC, IBC6
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD-MNPC-J1900-ITX06FL
Certification :
CE, FCC, RoHS Compliance
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T,PayPal(173515844@qq.com)
Processor :
Intel i3/i5/i7 All Generations U&Intel Celeron J series CPU
System memory :
Default 128G SSD, Max. up to 1TB mSATA SSD; Support 2.5 inch SSD and HDD
Storage Temperature :
-40～75℃
Operating Temperature :
-20～70℃(-30 ～85℃ optional)
Power Supply :
Standardized 12V@5A adapter
Description

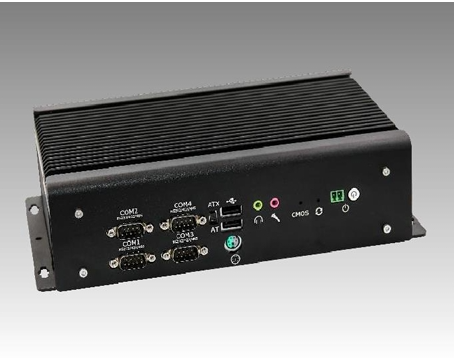

All-Aluminum Industrial Fanless Box PC, IBC6

INTRODUCTION:


All-Aluminum Industrial Fanless Box PC, Supporting Soldered Onboard Intel i3/i5/i7 All Generations U&Intel Celeron J series CPU, 2×LAN,6× COM(RS232/RS422/RS485,6×USB


FEATURES

▶Optional Intel 4th / 5th / 6th / 7th / 8th / 10th generation Core i3 / i5 / i7 CPUs
▶4th / 5th gen – DDR3L SODIMM x1, up to 8GB memory 6th / 7th / 8th / 10th gen – DDR4 SODIMM x2, up to 32GB memory
▶6 × RS-232 serial ports (4 of which support RS485/RS422)
▶2 × Intel i210/i211 Gigabit Ethernet ports
▶One-key recovery, watchdog, diskless boot
▶Low-power, fanless design


Specification

system

Processor Optional Intel 4th / 5th / 6th / 7th / 8th / 10th generation Core i3 / i5 / i7
CPUs
System RAM

4th / 5th gen – DDR3L SODIMM ×1, up to 8GB memory

6th / 7th / 8th / 10th gen – DDR4 SODIMM x2, up to 32GB memory


Ethernet 2 × GbE RJ45 Intel i211/i210
I/O

4 × USB3.0, 2 × USB2.0 6 × DB9 COM ports (4 of which support RS485/RS422)
1 × HDMI, 1 × VGA
1 × PS/2 port (combined keyboard and mouse)
14 × GPIO (7 inputs, 7 outputs)
1 × Power Button, 1 × Reset Button, 1 × Clear CMOS Button
1 × 3-pin Phoenix terminal for power, supporting 9–36V DC input
1 × Headphone jack, 1 × Microphone jack

1 × DIP switch for ATX/AT power-on mode selection
2 × Antenna connectors for Wi-Fi / 3G / 4G
Storge

1× MSATA, 1× M.2 NVME 2280(6/7/8/10 Gen. Supported, 1× HDD/SSD)
Expansions

Mini-PCIe × 1 half-size slot, supporting Wi-Fi and Bluetooth

Mini-PCIe × 1 full-size slot (with SIM card holder), supporting 3G/4G modules,
Wi-Fi, and Bluetooth

Expansion I/O × 1, supporting LPC, USB, and PCIe
OS support Windows® 7/8/10,WES 7/10,LINUX
Others One-key recovery, watchdog, diskless boot supported
Power 9-36V
Mechanical

Construction Die-Casting Aluminum Chassis
Mounting Deskop, Wall-Mounting, Embedded Mounting via Side Brackets
Dimension 240 × 150 × 65 mm
Net Weight 2Kg
Working Environment


Storage Temp. Range		 -30℃ to +70℃
Working Temp. Range -20℃ to + 60℃
Storage Humidity 10%~90% @30℃(Non-condensing)
