Specifications
Brand Name :
ITD/OEM
Model Number :
ITD156PPCT*IPS*-69K
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T,PayPal(173515844@qq.com)
Supply Ability :
10000PCS/Month
Delivery Time :
20 Business Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Active Area :
476.64(W) × 268.11(H)
Brightness :
250cd/m2
View angle :
89/89/89/89
Input Voltage :
DC12V
Touch screen :
Resistive Touch, AR/AG/AF Tempered Glass, Optical Bonding
Mount :
VESA,Yoke mount
CPU :
RK3399/3568/3588,Intel J1900,6412,i3,i5,i7
Description

15.6" IP69K Stainless Steel Yoke-Mount VESA mount Waterproof Panel PC Industrial Rugged Touchscreen Computer for Harsh Environments


The ITD Full IP69K panel PCs series is high-performance ARM based or x86 based PC system integrated that meets all hygiene regulation standards in the food, beverage, chemical processing, biotechnology process manufacturing and other industrial applications. This waterproof IP69K PCs series has a wide range of sizes option, with complete stainless-steel chassis and anti-corrosive. This HMI system features fan-less design and IP69k sealing standards that ensure reliable operation in most hazardous environments, resisting high levels of dust, dirt, grease, moisture, shock and vibration, high-pressure water jets and steam cleaning while meeting required EMI/RFI resistance compliance.



Specifications:


Panel

Cell Type/Glass Surface

TFT

Size/ Aspect Ratio

15.6” 16:9

Active Area/ Pixel Pitch

344.16(W) × 193.59(H)/0.17925× 0.17925mm

Native Resolution/ Colors

1920 × 1080 /16.2M

Brightness/ Contrast

350cd/㎡(500~1000cd/㎡optional)/800:1

Response Time/ Viewing Angle(Typical)

13/12ms/85/85/85/85

Light Source

LED Backlight with 50000Hours’Lifetime


System

Item

ARM Solution

X86 Solution 1

X86 Solution 2

CPU

ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional)

Intel® Celeron J1900/J4125/J6412 2.0GHz

Intel® Core i3/i5/i7

(4th~12th Generation optional)

Chipset

Rockchip

Intel Bay Trail SoC

Intel SoC Chipset

Memory

2GB; 4GB/8GB Optional

Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412)

2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB

DDR4 SODIMM ×2 (8th~12th gen.)

Storage

8GB; 16GB/32GB/64GB/128G Optional

1×mSATA, 1×SATA

1×M.2 (not available for J1900) Default to 64GB SSD

1×mSATA, 1×SATA

1×M.2 Default to 64GB SSD

Graphics

Supports max. 4K resolution

Intel HD/UHD Graphics (By CPU)

Intel HD/UHD Graphics (By CPU)

Default Waterproof M12 I/O

2 × USB, 1 × RJ45, 1 × DC

More Waterproof I/Os optional

2 × USB, 1 × COM, 1 × RJ45, 1 × DC

More Waterproof I/Os optional

2 × USB, 1 × COM, 1 × RJ45, 1 × DC

More Waterproof I/Os optional

LAN

1×10/100/1000Mbps Ethernet

1× 10/100/1000Mbps Ethernet( Dual LAN optional)

1×10/100/1000Mbps Ethernet( Dual LAN optional)

OS

Android 7.1/8/10/11/12, etc.

Linux Ubuntu(optional)

Win 7/10, Linux

Win 11(available for J4125/J6412)

Win 7/10, Linux

Win 11(available for 7th gen. or above)

General


Power

Input Voltage

DC 12V 2.0

Operation/Power Saving

20~40W

Environmental Considerations

Operating Temperature

-10~60℃

Storage Temperature

-20~70℃

Relative Humidity

10%~90%(Non-Condensing)

Order Information

15.6” IP69K Stainless Steel Android Panel PC with Resistive Touch: ITD156PPCT1IPSEx-69K

15.6” IP69K Stainless Steel Android Panel PC with PCAP Touch: ITD156PPCT5IPSEx-69K

15.6” IP69K Stainless Steel J1900 Panel PC with Resistive Touch: ITD156PPCT1IPSJ1-69K

15.6” IP69K Stainless Steel J1900 Panel PC with PCAP Touch: ITD156PPCT5IPSJ1-69K

15.6” IP69K Stainless Steel J4125 Panel PC with Resistive Touch: ITD156PPCT1IPSJ4-69K

15.6” IP69K Stainless Steel J4125 Panel PC with PCAP Touch: ITD156PPCT5IPSJ4-69K

15.6” IP69K Stainless Steel J6412 Panel PC with Resistive Touch: ITD156PPCT1IPSJ6-69K

15.6” IP69K Stainless Steel J6412 Panel PC with PCAP Touch: ITD156PPCT5IPSJ6-69K

15.6” IP69K Stainless Steel i3 Panel PC with Resistive Touch: ITD156PPCT1IPSI3-69K

15.6” IP69K Stainless Steel i3 Panel PC with PCAP Touch: ITD156PPCT5IPSI3-69K

15.6” IP69K Stainless Steel i5 Panel PC with Resistive Touch: ITD156PPCT1IPSI5-69K

15.6” IP69K Stainless Steel i5 Panel PC with PCAP Touch: ITD156PPCT5IPSI5-69K

15.6” IP69K Stainless Steel i7 Panel PC with Resistive Touch: ITD156PPCT1IPSI7-69K

15.6” IP69K Stainless Steel i7 Panel PC with PCAP Touch: ITD156PPCT5IPSI7-69K

15.6” IP69K Stainless Steel Panel PC with Tempered Glass No Touch: ITD156PPCG1IPSxx-69K

15.6” 1000nits IP69K Stainless Steel Panel PC with Touch: ITD156PPCG1HBIPSxx-69K

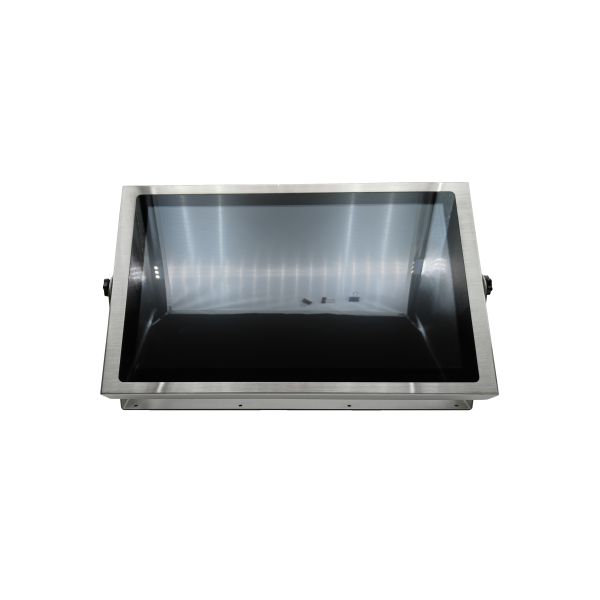

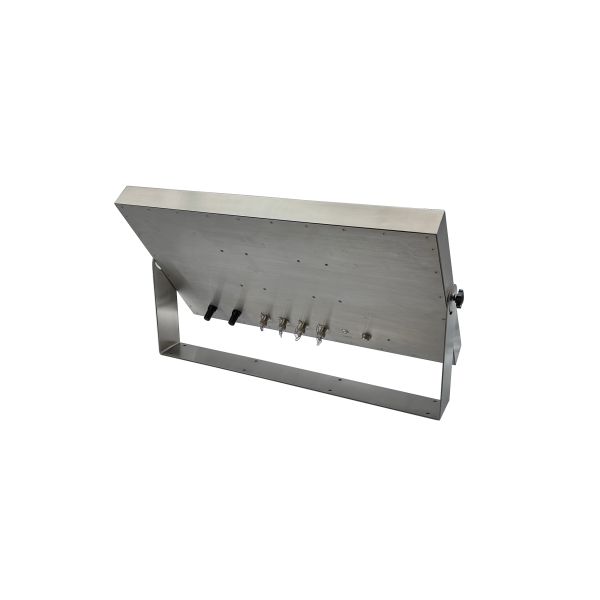

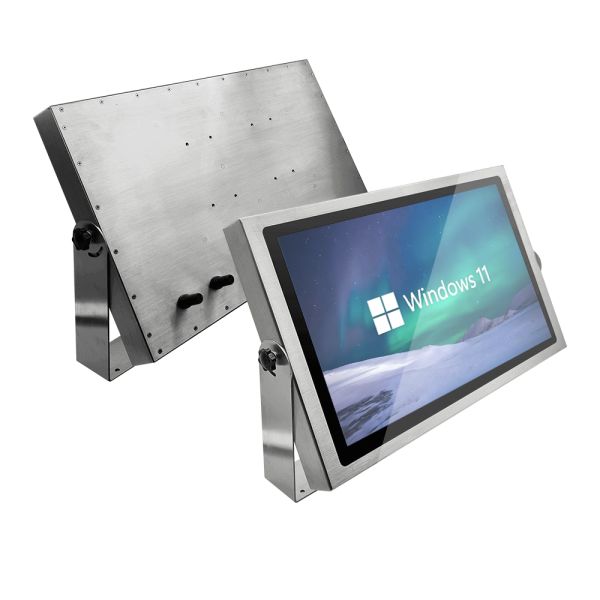

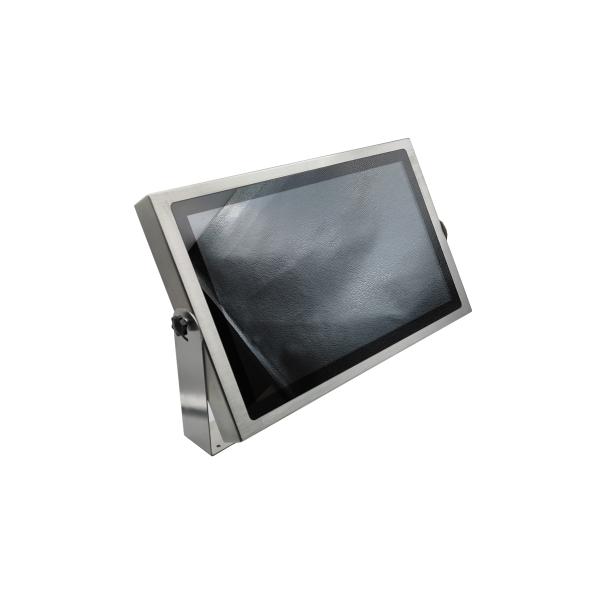

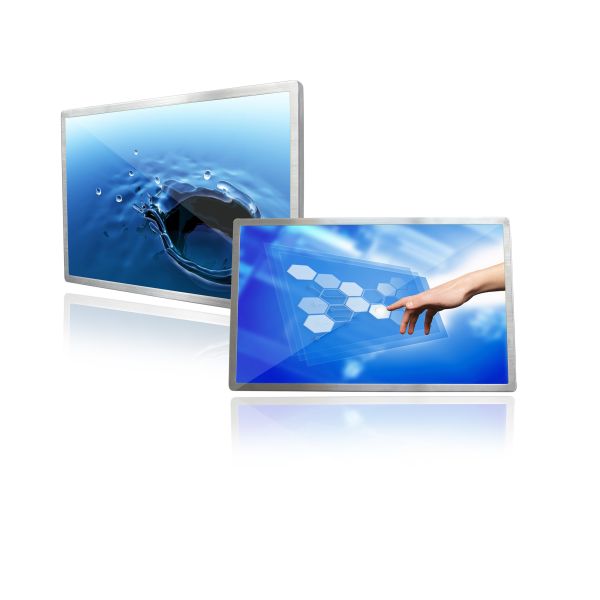

Product Display
