15.6 zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
15.6 zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
15.6 zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
15.6 zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
15.6 zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
15.6 zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
15.6 zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
15.6 zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
15.6 zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
15.6 zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
15.6 zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
15.6 zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel industrial touch screen for POS/Kiosk/automation
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD156OFT5K2
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T,PayPal(173515844@qq.com)
Supply Ability :
10000PCS/Month
Delivery Time :
3-5 Business Days
Packaging Details :
1-5pcs/CTN, Safe, Firm
Aspect Ratio :
16:9
Native Resolution/Colors :
1920*1080
Brightness :
350-400 nits
Input signals :
VGA,DVI,HDMI
Power source :
External power supply DC12V input
Touch screen :
10 points pcap touch
active area :
344.16(W)×193.59(H)mm
casing :
steel/aluminum
Description

15.6" zero bezel pcap touch monitor VGA/DVI/HDMI input IP65 front panel for POS/Kiosk/automation


ITD 15.6” Open Frame PCAP Touch Monitor is a fully-integrated, ready-to-use solution designed for industrial and commercial applications. Featuring Projected Capacitive multi-touch technology in a high-quality LCD panel, it offers a true flat front surface with an open frame design, making it ideal for integration into kiosks, machines, or custom enclosures.


BENEFITES

  • All steel/aluminum construction provides rugged frame for public use environments
  • Ten independent touch points, plug and play
  • Eliminates dust and debris build-up at the edge and corners of the display
  • Provides improved power efficiency and reduced consumption
  • Responds to a light touch in activating response
  • Easy-to-clean surface without bezels
  • Long lasting product cycle for continuity thru all phases of project

Specifications:


Panel

Cell Type/Glass Surface

TFT

Size/ Aspect Ratio

15.6” 16:9

Active Area/Pixel Pitch

344.16(W)×193.59(H)mm/0.17925×0.17925mm

Native Resolution/Colors

1920×1080/262K

Brightness/Contrast

400cd/㎡/800:1

Response Time/ Viewing Angle

30ms/85/85/85/85

Light Source

LED Backlight with 30000Hours’Lifetime

Input Signals

VGA, DVI, HDMI

Touch Panel

Projected Capacitive Touch Panel, USB Port

Power Source

External Power Supply with Universal/Auto-Sensing, DC12V Input

Power Consumption

Operation/Power Saving

Below 10W

Environmental Condition

Operating Temperature Range

0~50℃

Storage Temperature Range:

-20~60℃

Operating/Storage Humidity:

10%~90%(Non-Condensing)

Vibration

50 ~ 500 Hz, 1.5G, 0.15mm peak to peak(optional)

Shock

10G/Peak (11ms) (optional)

Key Control

Power on/off with LED, Menu, Select, Adjustment (Right/Left)

Order Information

15.6” Open Frame Monitor with Tempered Glass No Touch /ITD156OFG1K2

15.6” Open Frame PCAP Touch Monitor/ITD156OFT5K2



Images:

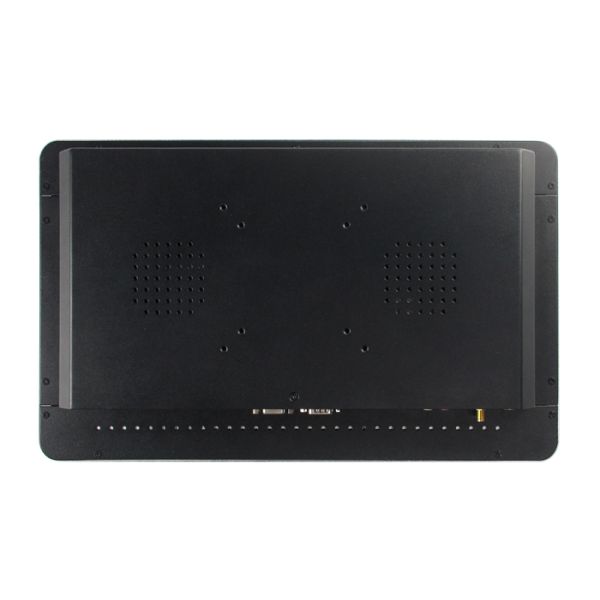

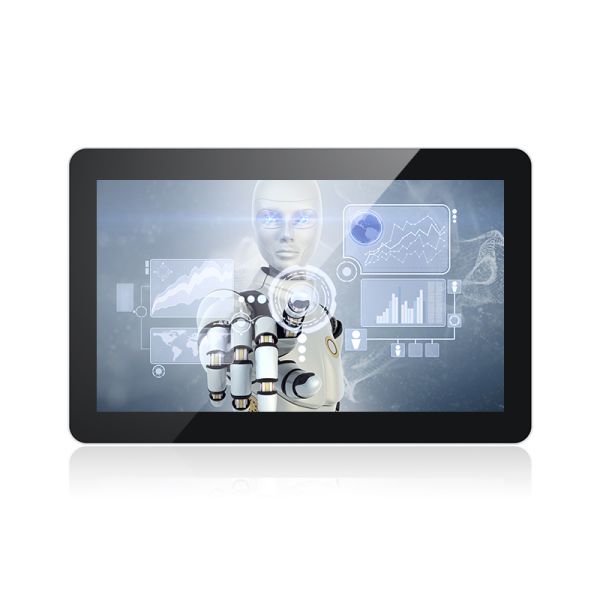

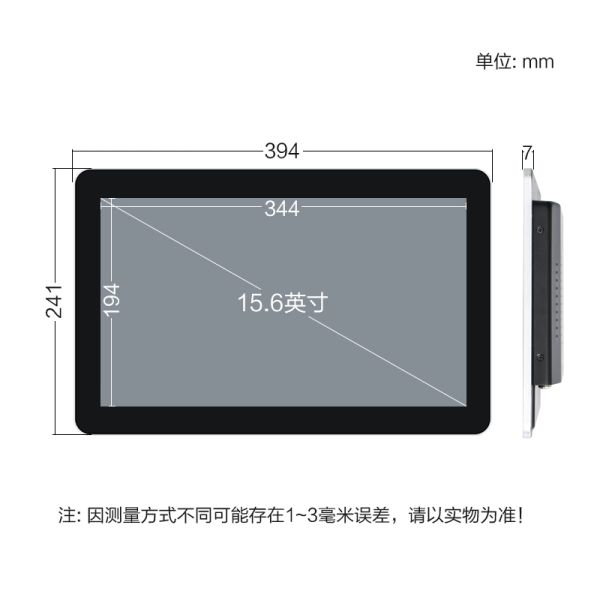

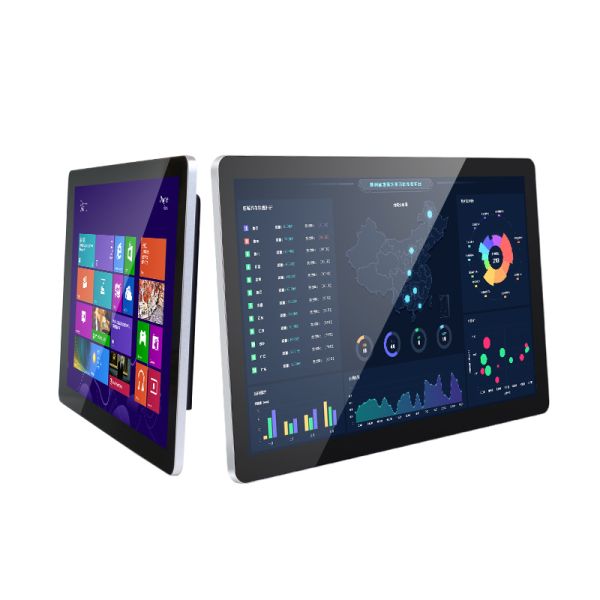

15.6
