19 embedded mounting VGA HDMI industrial touchscreen high brightness panel mount monitor for kiosk HMI machine
19 embedded mounting VGA HDMI industrial touchscreen high brightness panel mount monitor for kiosk HMI machine
19 embedded mounting VGA HDMI industrial touchscreen high brightness panel mount monitor for kiosk HMI machine
19 embedded mounting VGA HDMI industrial touchscreen high brightness panel mount monitor for kiosk HMI machine
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD7PMT5X1**_V2
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T,PayPal(173515844@qq.com)
Supply Ability :
10000PCS/Month
Delivery Time :
3-5 Business Days
Packaging Details :
1-5pcs/CTN, Safe, Firm
Housing material :
Aluminum, SGCC
Outline Dimensions :
440.0 x 364.0 x 45.0 mm
Power input :
12V/3A
Brightness :
250 cd/m2 (350~1500cd/m2 optional)
Touch panel :
5-wire Resistive, pcap touch
Operating Temperature Range :
-20℃~70℃
IP Level :
Front IP65
Resolution :
1280*1024
Description

19" embedded mounting VGA HDMI industrial touchscreen high brightness panel mount monitor for kiosk HMI machine


Features of 19" embedded mounting


◼Front panel compliant with IP65 protection rating, offering stability and durability
◼ Supports VGA and HDMI interfaces
◼ Optional resistive or capacitive touch screen
◼ Optional 12V or 9~28V power input
◼ Supports panel mount, wall mount, desktop mount, or VESA arm mount


Specifications of 19" embedding mounting monitor

Inputs

VGA,HDMI

Housing Material

Aluminum, SGCC

Outline Dimensions

440.0 x 364.0 x 45.0mmmm

Weight

TBD

Power Input

12V/3A

OS Supported

Windows®7/8/10/11,WES 7,Linux

OSD Menu

Brightness and contrast adjustable; supports one-touch auto adjustment for optimal display.

Mounting Method

Panel mount, wall mount, desktop mount, or VESA arm mount

LCD Panel

LCD Type

TFT-LCD

Resolution

1280 x 1024

Colors

16.2M

Brightness

250 cd/m2 (350~1500cd/m2 optional)

Viewing Angles(CR>=10)

-89°～89°(H),-89°~89° (V)

Backlight

LED 30,000h

Contrast Ratio

1000:1

Touch Panel

Type

5-wire Resistive

Projected Capacitive Touch

Interface

USB2.0

USB2.0

Transparency

85%

﹥85%

Lifecycle

10 million touches at 250g activation force

≥50 millions per click

Environmental Condition

Operating Temperature Range

-20℃~70℃

Storage Temperature Range

-20℃～70℃

Storage Humidity

10~90%@30℃,Non-condensing

IP Level

Front IP65

Vibration resistance

5~500 Hz,1Grms (operating, random)

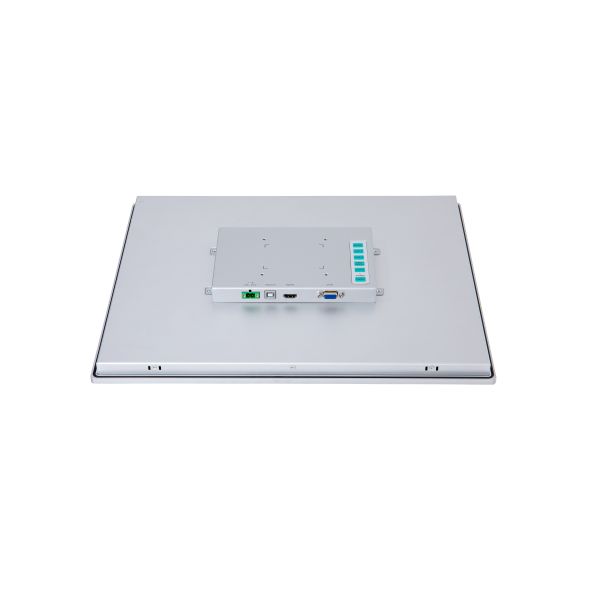

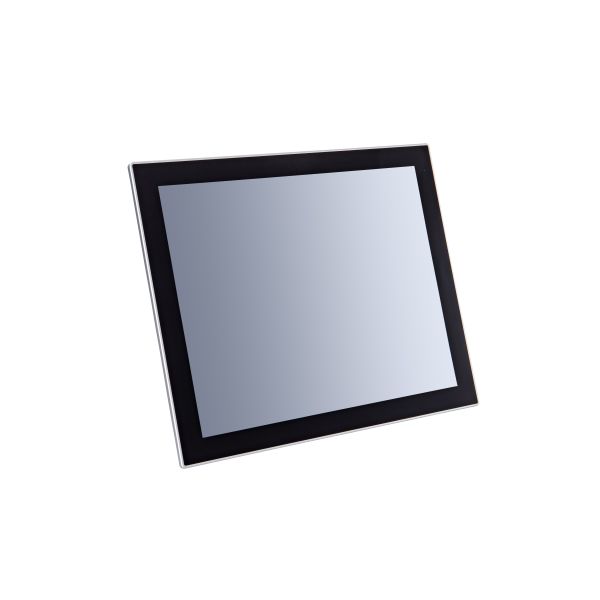

Product Display
