7 Embedded Mount IP65 Front Industrial Touchscreen High Brightness Monitor
7 Embedded Mount IP65 Front Industrial Touchscreen High Brightness Monitor
7 Embedded Mount IP65 Front Industrial Touchscreen High Brightness Monitor
7 Embedded Mount IP65 Front Industrial Touchscreen High Brightness Monitor
7 Embedded Mount IP65 Front Industrial Touchscreen High Brightness Monitor
7 Embedded Mount IP65 Front Industrial Touchscreen High Brightness Monitor
7 Embedded Mount IP65 Front Industrial Touchscreen High Brightness Monitor
7 Embedded Mount IP65 Front Industrial Touchscreen High Brightness Monitor
7 Embedded Mount IP65 Front Industrial Touchscreen High Brightness Monitor
7 Embedded Mount IP65 Front Industrial Touchscreen High Brightness Monitor
Specifications
Certification :
CE, FCC, RoHS
Backlight :
LED
Model Number :
ITD07PMT*X*_V2
Resolution :
1026*600
Payment Terms :
T/T,PayPal(173515844@qq.com)
Power Input :
External Power Supply with Universal/Auto-Sensing
Price :
TBA
Input Signal Connectors :
VGA, HDMI
Supply Ability :
10000PCS/Month
Brightness :
250nits, (1000~1500 nits optional)
MOQ :
1PCS
Delivery Time :
5-7 Business Days
Mount Interface :
VESA 75×75/Panel Mounting via Clamps
Brand Name :
ITD/OEM
Inch :
7
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Place of Origin :
China
Operating Temperature :
-10~60℃
Description

7" Embedded Mount IP65 Front Industrial Touchscreen High Brightness Monitor

ITD industrial panel mount LCD monitors are purpose-built for continuous, dependable performance in harsh industrial environments where reliability is critical. Featuring a heavy-duty steel enclosure paired with a precision-machined aluminum front bezel, these monitors deliver exceptional resistance to shock, vibration, and mechanical stress commonly found in factories, production lines, and processing plants. The front-facing IP65 / NEMA 4 protection, reinforced by high-durability tempered glass, effectively shields the display from dust, moisture, splashes, and industrial pollutants, helping ensure stable operation even in challenging conditions. The flat, flush-front mechanical design supports both resistive and projected capacitive (PCAP) touch options, making the surface easy to clean and well suited for applications requiring frequent interaction or compliance with hygiene standards. With their rugged construction, flexible configuration, and industrial-grade reliability, these monitors are ideal for industrial automation, HMI terminals, machine control systems, self-service kiosks, food and beverage processing equipment, transportation and vehicle-mounted systems, as well as marine and offshore applications—delivering consistent performance where downtime is not an option.

Specifications:

Panel Mount Touch Screen Monitor
Model Name ITD07PMT5X1_V2
IP Rating IP65 Front Panel

LCD Panel
Screen Diagonal (Inch) 7”
Aspect Ratio 16:9
Physical Resolution 1924×600
Pixel Pitch(mm) 0.2928×0.2928
Colors 16.7M
Response Time 8/8ms
Brightness (cd/m2) 250 (450~1500 optional)
Contrast Ratio 1000:1
View Angels 89/89/89/89
Backlight/Backlight Lifetime LED Backlight with 50000Hours'Lifetime

Touch Panel
Touch Options PCAP, Resistive
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Input / Output
Video Input 1 × VGA
1 × DVI-I, 1 × Display Port(optional)
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB
Power Connector 1 × Phoenix Connector

Operation
Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power
Power Indicator Green LED
Power Input DC9~28V input
Power Consumption 18W

Order Information
7”Panel Mount LCD Monitor with Resistive Touch ITD07PMT1X1_V2
7”Panel Mount LCD Monitor with PCAP Touch ITD07PMT5X1_V2
7”Panel Mount LCD Monitor with Tempered Glass ITD07PMG1X1_V2
7”1000nits Panel Mount LCD Monitor with Resistive Touch ITD07PMT1HBX2_V2
7”1000nits Panel Mount LCD Monitor with PCAP Touch ITD07PMT5HBX2_V2
7”1000nits Panel Mount LCD Monitor with Tempered Glass ITD07PMG1HBX2_V2
7”1500nits Panel Mount LCD Monitor with Resistive Touch ITD07PMT1HBX1_V2
7”1500nits Panel Mount LCD Monitor with PCAP Touch ITD07PMT5HBX1_V2
7”1500nits Panel Mount LCD Monitor with Tempered Glass ITD07PMG1HBX1_V2

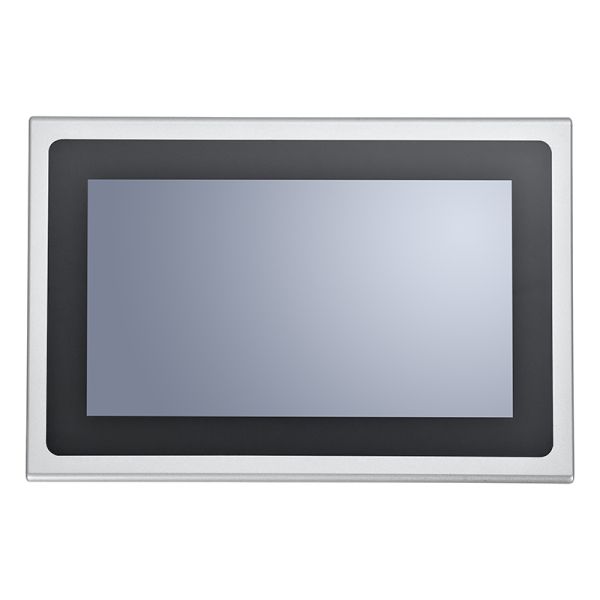

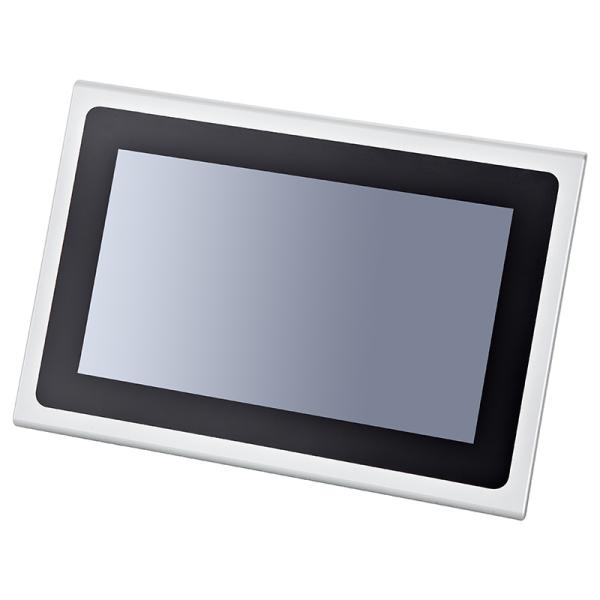

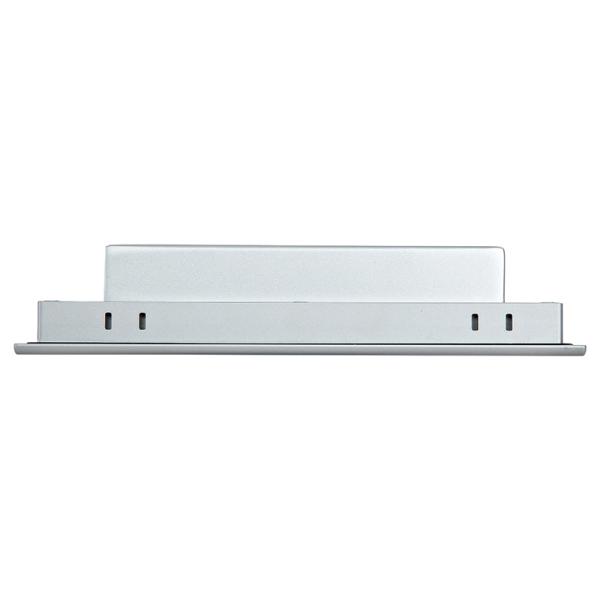

Product Image

7

7

7

APPLICATION

7
7
7
