12.1 IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen
12.1 IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen
12.1 IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen
12.1 IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen
12.1 IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen
12.1 IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen
12.1 IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen
12.1 IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen
12.1 IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen
12.1 IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen
Specifications
Model Number :
ITD12PPCT5IPSW*-69K
CPU :
Intel J1900,J6412,J4125,i3,i5,i7,Android
Supply Ability :
1000pcs/month
Humidity :
10% To 90% RH
Payment Terms :
T/T,PayPal(173515844@qq.com)
Storage :
64GB SSD,128GB,256GB,512GB,1TB
Delivery Time :
a month
resolution :
1280 × 800
Brand Name :
ITD
Touch Screen :
10-point Capacitive Touch
MOQ :
1
Packaging Details :
foam,master carton
Product Name :
waterproof Panel PC
Certification :
CE,ROHS,FCC
Protection Level :
IP65/IP66/IP67/IP69K
Place of Origin :
China
Working Temperature :
-10℃ To 60℃
Description

12.1" IP69K Stainless Steel Touch Panel PC, Waterproof Industrial Computer with PCAP Touch Screen

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 12.1” 16:10
Active Area/ Pixel Pitch 262.565(W) × 164.16(H)/0.2052 × 0.2052mm
Native Resolution/ Colors 1280 × 800 /16.7M
Brightness/ Contrast 350cd/㎡(500~1000cd/㎡optional)/1000:1
Response Time/ Viewing Angle(Typical) 30ms/85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item ARM Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17 RK3288, 1.8GHz (RK3399/RK3568/RK3588 optional) Intel® Celeron J1900/J4125/J6412 2.0GHz

Intel® Core i3/i5/i7

(4th~12th Generation optional)
Chipset Rockchip Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB/8GB Optional

Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB; DDR4 SODIMM×1(Intel J4125/J6412)

2×DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB

DDR4 SODIMM ×2 (8th~12th gen.)
Storage

8GB; 16GB/32GB/64GB/128G Optional

1×mSATA, 1×SATA

1×M.2 (not available for J1900) Default to 64GB SSD

1×mSATA, 1×SATA

1×M.2 Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD/UHD Graphics (By CPU) Intel HD/UHD Graphics (By CPU)
Default Waterproof M12 I/O

2 × USB, 1 × RJ45, 1 × DC

More Waterproof I/Os optional

2 × USB, 1 × COM, 1 × RJ45, 1 × DC

More Waterproof I/Os optional

2 × USB, 1 × COM, 1 × RJ45, 1 × DC

More Waterproof I/Os optional
LAN 1×10/100/1000Mbps Ethernet 1× 10/100/1000Mbps Ethernet( Dual LAN optional) 1×10/100/1000Mbps Ethernet( Dual LAN optional)
OS

Android 7.1/8/10/11/12, etc.

Linux Ubuntu(optional)

Win 7/10, Linux

Win 11(available for J4125/J6412)

Win 7/10, Linux

Win11(available for 7th gen. or above)

GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 15~30W
Environmental Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%(Non-Condensing)
Order Information 12.1” 16:10 IP69K Stainless Steel Android Panel PC with Resistive Touch: ITD12PPCT1IPSExW-69K
12.1” 16:10 IP69K Stainless Steel Android Panel PC with PCAP Touch: ITD12PPCT5IPSExW-69K
12.1” 16:10 IP69K Stainless Steel J1900 Panel PC with Resistive Touch: ITD12PPCT1IPSJ1W-69K
12.1” 16:10 IP69K Stainless Steel J1900 Panel PC with PCAP Touch: ITD12PPCT5IPSJ1W-69K
12.1” 16:10 IP69K Stainless Steel J4125 Panel PC with Resistive Touch: ITD12PPCT1IPSJ4W-69K
12.1” 16:10 IP69K Stainless Steel J4125 Panel PC with PCAP Touch: ITD12PPCT5IPSJ4W-69K
12.1” 16:10 IP69K Stainless Steel J6412 Panel PC with Resistive Touch: ITD12PPCT1IPSJ6W-69K
12.1” 16:10 IP69K Stainless Steel J6412 Panel PC with PCAP Touch: ITD12PPCT5IPSJ6W-69K
12.1” 16:10 IP69K Stainless Steel i3 Panel PC with Resistive Touch: ITD12PPCT1IPSI3W-69K
12.1” 16:10 IP69K Stainless Steel i3 Panel PC with PCAP Touch: ITD12PPCT5IPSI3W-69K
12.1” 16:10 IP69K Stainless Steel i5 Panel PC with Resistive Touch: ITD12PPCT1IPSI5W-69K
12.1” 16:10 IP69K Stainless Steel i5 Panel PC with PCAP Touch: ITD12PPCT5IPSI5W-69K
12.1” 16:10 IP69K Stainless Steel i7 Panel PC with Resistive Touch: ITD12PPCT1IPSI7W-69K
12.1” 16:10 IP69K Stainless Steel i7 Panel PC with PCAP Touch: ITD12PPCT5IPSI7W-69K
12.1” 16:10 IP69K Stainless Steel Panel PC with Tempered Glass No Touch: ITD12PPCG1IPSxxW-69K
12.1” 16:10 1000nits IP69K Stainless Steel Panel PC with Touch: ITD12PPCG1HBIPSxxW-69K

Support and Services:

We provide technical support and service for our IP65 Panel PC. Our technical support team is available 24/7 to help you with installation, troubleshooting, and other inquiries.
We also offer extended warranty plans to cover up to 5 years of repair and replacement. Our dedicated team of engineers and technicians are ready to provide support and help you get the most from your IP65 Panel PC.

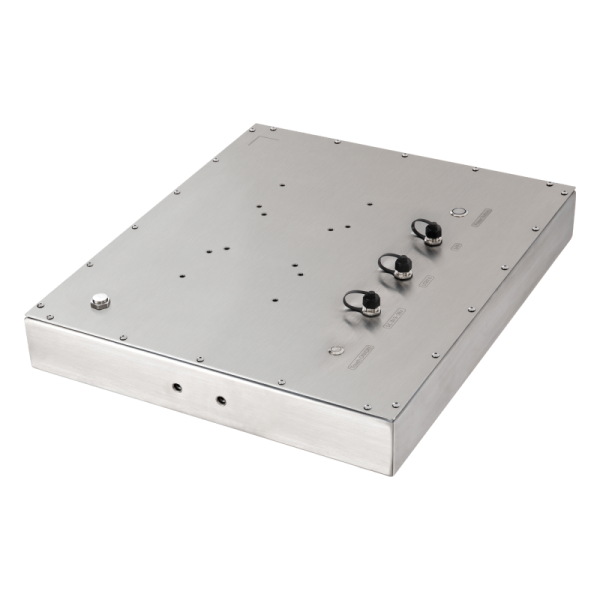

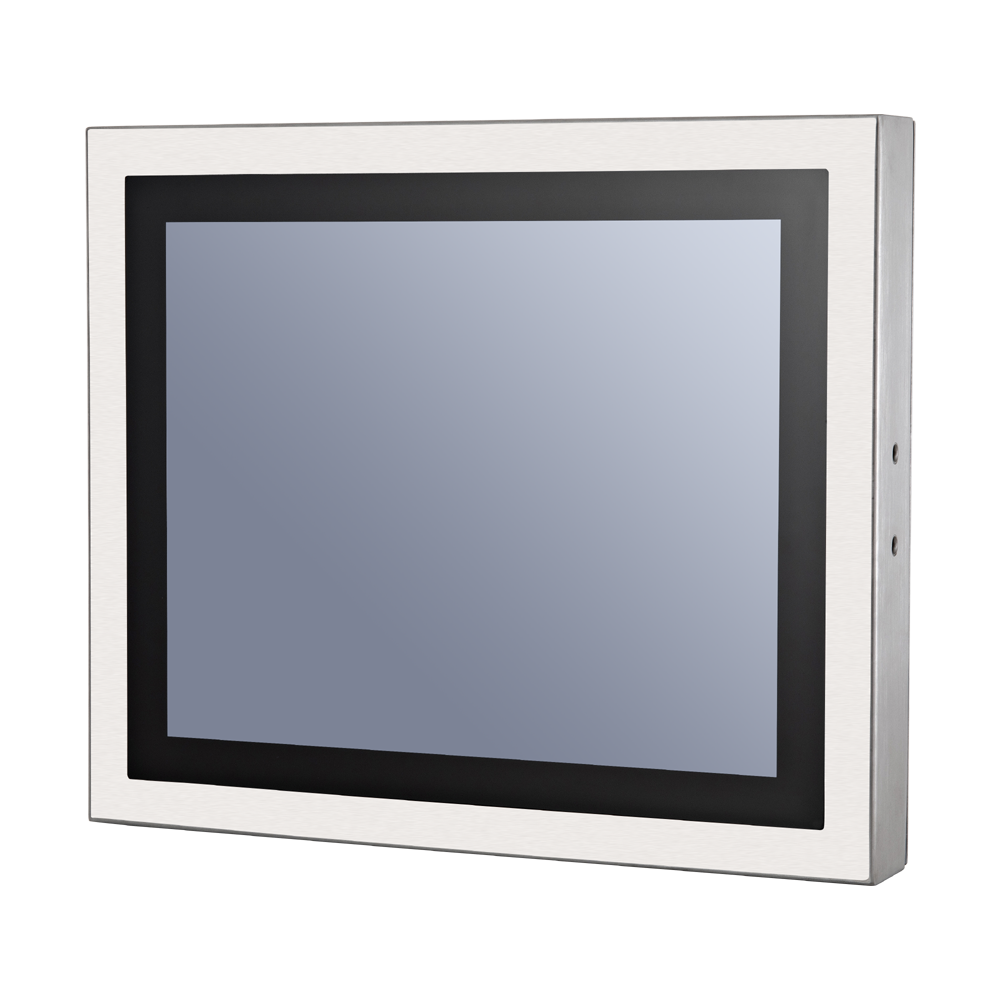

Product Display:

12.1

12.112.112.1
