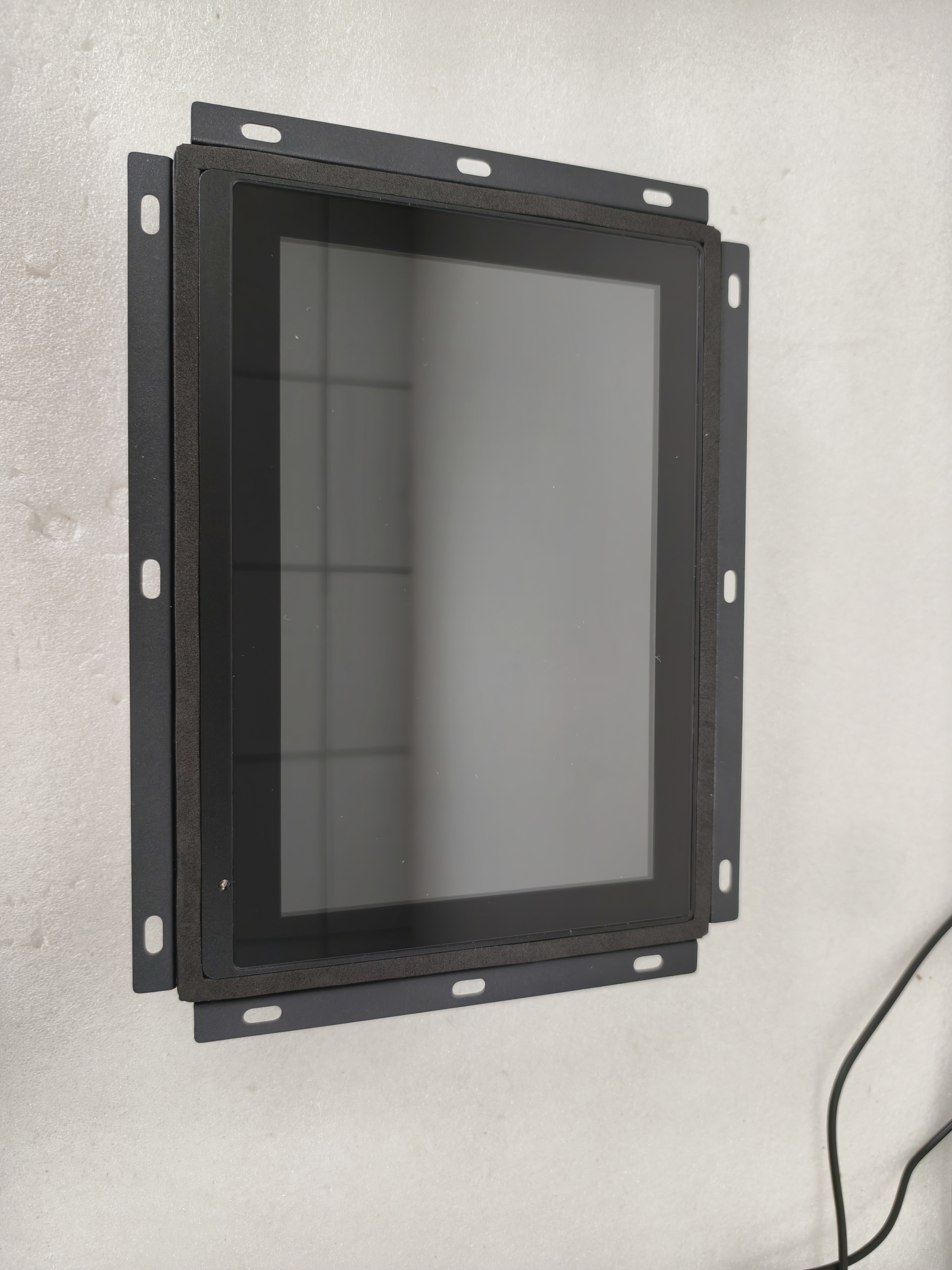

Open Frame Flush Mount PCAP Touch Monitor, Sunlight Readable LCD Display for HMI, Automation and Embedded Systems
Open Frame Flush Mount PCAP Touch Monitor, Sunlight Readable LCD Display for HMI, Automation and Embedded Systems
Open Frame Flush Mount PCAP Touch Monitor, Sunlight Readable LCD Display for HMI, Automation and Embedded Systems
Open Frame Flush Mount PCAP Touch Monitor, Sunlight Readable LCD Display for HMI, Automation and Embedded Systems
Open Frame Flush Mount PCAP Touch Monitor, Sunlight Readable LCD Display for HMI, Automation and Embedded Systems
Open Frame Flush Mount PCAP Touch Monitor, Sunlight Readable LCD Display for HMI, Automation and Embedded Systems
Specifications
MOQ :
1PCS
Delivery Time :
15-20 Business Days
VESA mount :
75*75
Model Number :
ITD13OFT5HBY1
Flush mount :
supported
Brand Name :
ITD/OEM
Viewing angles :
178/178
Payment Terms :
T/T,PayPal(173515844@qq.com)
Operating temperature :
-10~60°C,-20~70°C
Touch screen :
10 points pcap touch,resistive touch
Price :
TBA
Input signals :
VGA,HDMI
Supply Ability :
10000PCS/Month
Native Resolution/Colors :
1920*1080
Packaging Details :
1-5pcs/CTN, Safe, Firm
Power source :
External power supply DC12V input
Certification :
CE, FCC, RoHS
Place of Origin :
China
Description

Open Frame Flush Mount PCAP Touch Monitor, Sunlight Readable LCD Display for HMI, Automation and Embedded Systems

A rugged industrial touch monitor featuring a 13.3-inch high-brightness sunlight readable LCD display and responsive PCAP multi-touch technology. The open frame flush mount design enables seamless integration into kiosks, industrial equipment, automation systems, and outdoor applications. With excellent visibility, durable construction, and reliable 24/7 operation, it is ideal for HMI control, self-service terminals, digital signage, and embedded display solutions.

2. 1 General

Model ITD13OFT5HBYx
IP IP65(for front panel only)
Outline Dimensions TBA
Weight(N.W/G.W) TBA
Packing Dimension TBA
LCD Type 13.3＂Active matrix TFT-LCD
Video Input VGA/HDMI
Recommend Resolution 1920×1080@60Hz,75Hz
OSD controls Allow On-Screen Adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Power Supply Type: External Brick
Input (line) Voltage: 100-240 VAC, 50-60 Hz
Output Voltage/Current: 12V at 4A Max.
Power Consumption 30W
Mount Interface

1)VESA 75mm and 100mm

2)Rear Mounting Brackets
Regular Warranty 1 Year for TFT Panel, 2 Years for others
Agency Approval FCC,CE,RoHS Certified
13.3” 1000nits Flush Mount PCAP Touch Monitor/ITD13OFT5HBY2
13.3” 1500nits Flush Mount PCAP Touch Monitor/ITD13OFT5HBY1

2.2 LCD Specification

Active Area(mm) 293.42(H)x 164.97(V)
Resolution 1920X1080
Pixel Pitch(mm) 0.2235×0.2235
Nominal Input Voltage VDD +3.3V(Typ)
Viewing angle (L/R/T/B) 89°/89°/89°/89°
Contrast 700:1
Luminance(cd/m2) 1000
Response Time(Rising/Falling) 7.7/10.8ms
Support Color 16.2M/262K
Screen Scanning 60Hz
Backlight MTBF(hr) 50000h

2.3 Touch Screen Specification

Type Projected Capacitive Touch Screen (anti-glare optional)
Resolution 4096×4096
Light Transmission 85%±5%
Touch Life Cycle 50 millions times
Touch Response time 5ms
Touch System Interface USB A type (USB B optional)
Operating System Support

Plug and Play for Win 7/8/10,Linux Kernel 3.18.12 or above

Drivers for Win CE/XP, Android, Mac

2.4 External AC Power Adapter

Output 12V DC/4A (24V DC, 9-36V DC optional)
Input 100-240 VAC, 50-60 Hz
MTBF 50000 hr at 25°C

2.5 Environment

Operating Temp. -10～60°C (-20～70°C optional)
Storage Temp. -20～70°C
Operating RH: 10%～90% (Non Condensing)
Storage RH: 10%～90%

APPLICATION

Open Frame Flush Mount PCAP Touch Monitor, Sunlight Readable LCD Display for HMI, Automation and Embedded Systems

OUR FACTORY
Open Frame Flush Mount PCAP Touch Monitor, Sunlight Readable LCD Display for HMI, Automation and Embedded Systems
