15 Pure Flat Stainless Steel Industrial Touch Screen PC Resistive Capacitive HMI Linux
15 Pure Flat Stainless Steel Industrial Touch Screen PC Resistive Capacitive HMI Linux
15 Pure Flat Stainless Steel Industrial Touch Screen PC Resistive Capacitive HMI Linux
15 Pure Flat Stainless Steel Industrial Touch Screen PC Resistive Capacitive HMI Linux
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD15PPCT5KXE31
Certification :
CE/ROHS/FCC
Place of Origin :
China
MOQ :
1PCS
Payment Terms :
T/T, PayPal(173515844@qq.com)
Supply Ability :
10000 unit per month
Delivery Time :
7-12 work days
Packaging Details :
Foam,gift box,master carton,wooden case,pallet
Deliver rich media including :
Multiple video and audio formats, RSS feeds and image slide shows
Size :
15"
Contrast Ratio :
700:1
Viewing Angle(Typical) :
80/80/60/80
Light Source :
LED Backlight with 50000Hours’Lifetime
OS :
Android 5.1/6.0
Bluetooth :
Optional
Price :
TBA
Description

Industrial panel PC 15”Flat Bezel Android all in one multi-touch screen HMI

Specs:

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 15”/4:3
Active Area/ Pixel Pitch 304.12(H)x 228.09(V)mm /0.297 × 0.297mm
Native Resolution/ Colors 1024 x 768/ /16.2M
Brightness/ Contrast 250cd/㎡/700:1
Response Time 30ms
Viewing Angle(Typical) 80/80/60/80
Light Source LED Backlight with 50000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Quad Core RK3288,Main CPU frequency:1.8GHz

GPU: Mali-T764 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 5.1/6.0; Bluetooth: Optional

Video Decoder: 4K VP8 and 4K 10bits H265/H264

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG; 4 × COM;

1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);
Operating Temperature -10~60℃ (-20~70℃ Optional)
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 15”Flat Bezel Android Panel PC with PCAP Touch/ITD15PPCT5KXE31
15”Flat Bezel Android Panel PC with Resistive Touch/ITD15PPCT1KXE31
15”Flat Bezel Android Panel PC with Tempered Glass/ITD15PPCG1XE31

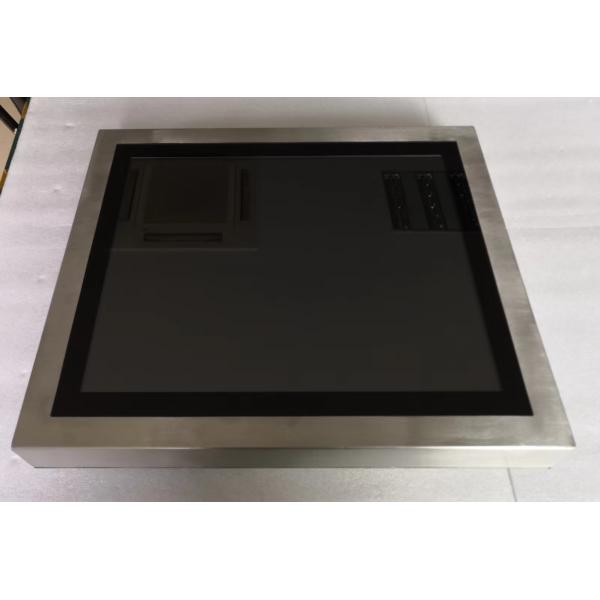

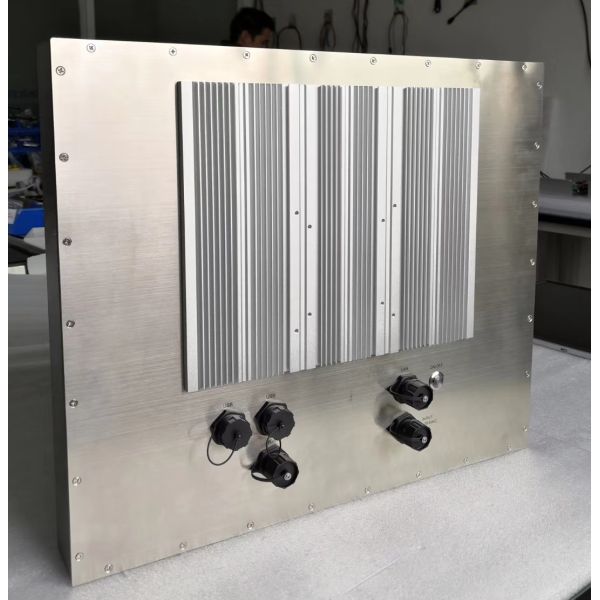

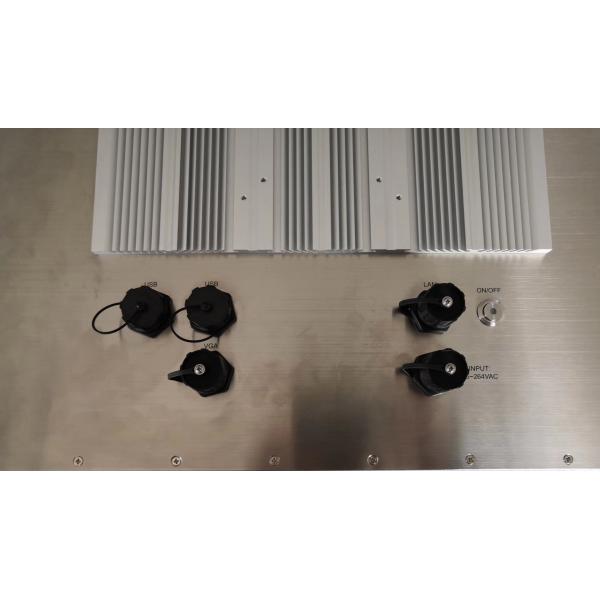

Image:

15

15

15

FEATURES

• Centralized server controls content distribution;

• Combined hardware and software solution for fast, reliable delivery of digital signage content and continuous operation;

• Easy WIFI network system installation without the need for extra IT, firewall or security configurations;

• Simple content scheduling and updating for each display;

• Restart and update digital signage players remotely;

• Create and update separate schedules for each display, al owing for targeted ads at each terminal or different locations;

• Deliver rich media including: Multiple video and audio formats, RSS feeds and image slide shows;

• Transfer schedules and contents to one or more displays;

• Control, monitor and design screen layouts remotely by the admin software;

• Support Multi-zone terminal display and flexible screen layout;

• Local review of multi-zone display layout once the content is stored in the server PC;


15
