1000nits 1024x768 Industrial Hmi Touch Panel VESA With GPIO Windows
1000nits 1024x768 Industrial Hmi Touch Panel VESA With GPIO Windows
1000nits 1024x768 Industrial Hmi Touch Panel VESA With GPIO Windows
1000nits 1024x768 Industrial Hmi Touch Panel VESA With GPIO Windows
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD10PPCTxB-xxxx
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T, PayPal(173515844@qq.com)
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Business Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Native resolution :
800x600 or 1024x768
Brightness :
350 ,1000nits optional
Processor :
Intel J1900, Intel i3/i5/i7
touch panel :
capacitive/resistive
Mounting method :
panel mounted,VESA
I/O :
USB, COM, HDMI, Audio, LAN, GPIO
Operating Temperature :
-20~60℃
Humidity :
10%~90% non condensing
Material :
Aluminum Housing, HeatSink
Warranty :
2 years
MTBF :
50000hours
Description

10 panel pc industrial hmi touch panel with GPIO Windows CE

Features

  • Onboard Intel Celeron J1900/4th/6th/7th/8th Gen.Core i3/i5/i7 CPU
  • Onboard DDR3 4GB Memory / Optional SODIMM SKU
  • LCD+HDMI Output, Support Dual view/Simultaneous display
  • Fanless Operation, Super Slim design
  • IP65 Front Panel
  • Wide DC Support 9 ~ 36V
  • GPIO Port
  • All Aluminum Housing with Heatsink
  • Edge to edge design, flat surface, easy-to-clean
  • Embedded Mounting and VESA Mounting
  • Anti-Shock and Anti Vibration

Applications

  • Automation
  • Transportation&Vehicle
  • Oil&Gas
  • Medical
  • IoT&AI
  • HMI

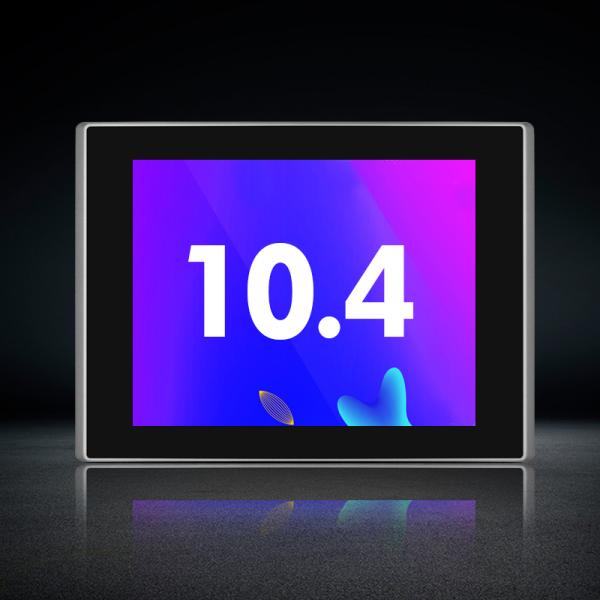

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 10.4”/4:3
Active Area/ Pixel Pitch 211.2(W) x 158.4(H)mm/0.264 × 0.264mm
Native Resolution/ Colors 800 x 600 (1024 x 768 optional)/ 262K/16.2M
Brightness/ Contrast 1000cd/㎡ (1500cd/㎡ optional)/ 700:1
Response Time/ Viewing Angle(Typical) 30ms/70/70/60/70
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional

Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage

8GB: 16GB/32GB/64GB Optional

 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)

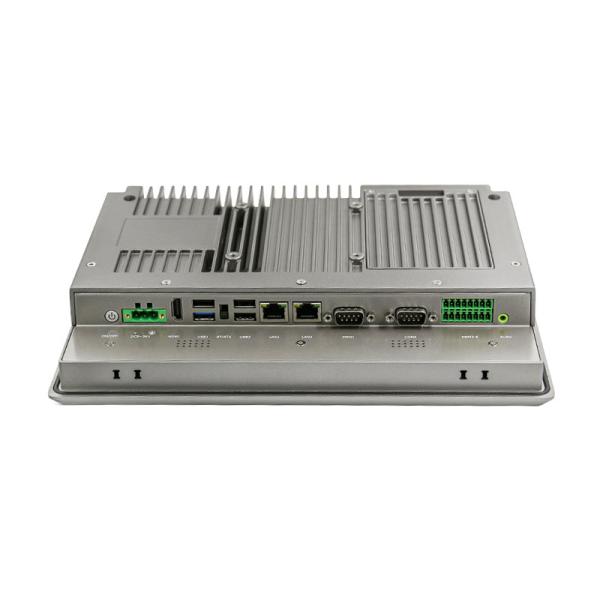

I/O

1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 1 × COM(Optional);

1 × TF Card Support 8~128GB

3xUSB2.0, 1xUSB3.0, 1xUSB 2.0 dongle; 2xDB-0 COM1&COM 2, RS232/422/485, 2x3-Wire COM3&COM 4 RS232/485 with terminal block, 1xAudio Line-out, 2x8 1W Audio AMP out 1x Remote Switch with terminal block , 1x AT/ATX Switch, 1xHDMI, 1x14bit GPIO

3xUSB2.0, 1xUSB3.0, 1xUSB 2.0 dongle; 2xDB-0 COM1&COM 2, RS232/422/485, 2x3-Wire COM3&COM 4 RS232/485 with terminal block, 1xAudio Line-out, 2x8 1W Audio AMP out 1x Remote Switch with terminal block , 1x AT/ATX Switch, 1xHDMI, 1x14bit GPIO
LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 20~50W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%

1000nits 1024x768 Industrial Hmi Touch Panel VESA With GPIO Windows1000nits 1024x768 Industrial Hmi Touch Panel VESA With GPIO Windows
