DC 12V 8 Rugged All In One Pc Pass Management Temperature Detection Face Recognition
DC 12V 8 Rugged All In One Pc Pass Management Temperature Detection Face Recognition
DC 12V 8 Rugged All In One Pc Pass Management Temperature Detection Face Recognition
DC 12V 8 Rugged All In One Pc Pass Management Temperature Detection Face Recognition
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD08PPCG1LEC
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
7-10 Business Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Camera resolution :
2 million pixels
Focusing distance :
50-150cm
Photo flood light :
LED and IR dual photo flood light
Screen size :
8.0 inch IPS LCD screen
Touch :
Not supported (optional support)
CPU :
RK3288 quad-core (optional RK3399 six-core, MSM8953 eight-core)
Storage :
EMMC 8G
Wired network :
1 RJ45 Ethernet socket
Temperature detection :
Support
Temperature detection distance :
1 meter (optimal distance 0.5 meter)
Thermal field of view :
32 X 32℃
Description

8" pass management temperature detection face recognition web camera access system rugged panel pc

Function

 Credit card reader None (optional IC card reader, ID card, ID card)
Face Detection Supports detection and tracking of multiple people at the same time
Face library Up to 30,000
1: N face recognition Support
1: 1 face comparison Support
Stranger detection Support
Identify distance configuration Support
UI interface configuration Support
Upgrade remotely Support
Interface

Interfaces include device management, personnel

/ photo management, record query, etc.
Deployment method Support public cloud deployment, privatized deployment, LAN use, stand-alone use

Infrared thermal imaging module

 Temperature detection Support
Temperature detection distance 1 meter (optimal distance 0.5 meter)

Temperature measurement

accuracy

 ≤ ±0.5℃
Temperature measurement range 10℃~42℃
Thermal field of view 32 X 32℃

Visitors' temperatu- re is normal and

released directly

 Support
Abnormal tem- perature alarm Support (temperature alarm value can be set)

General parameters

 Power DC12V(±10%)
Operating temperature 0℃~60℃

It can be used with access gates and attendance for communi- ties, office buildings, schools, hotels, scenic spots, transporta- tion hubs and other public service places.

Function

 Credit card reader None (optional IC card reader, ID card, ID card)
Face Detection Supports detection and tracking of multiple people at the same time
Face library Up to 30,000
1: N face recognition Support
1: 1 face comparison Support
Stranger detection Support
Identify distance configuration Support
UI interface configuration Support
Upgrade remotely Support
Interface

Interfaces include device management, personnel

/ photo management, record query, etc.
Deployment method Support public cloud deployment, privatized deployment, LAN use, stand-alone use

Infrared thermal imaging module

 Temperature detection Support
Temperature detection distance 1 meter (optimal distance 0.5 meter)

Temperature measurement

accuracy

 ≤ ±0.5℃
Temperature measurement range 10℃~42℃
Thermal field of view 32 X 32℃

Visitors' temperatu- re is normal and

released directly

 Support
Abnormal tem- perature alarm Support (temperature alarm value can be set)

General parameters

 Power DC12V(±10%)

General parameters

 Storage temperature -20℃~60℃
Power consumption 13.5W(Max)
Installation method Gate bracket installation

Size

 Standard:274.24*128*21.48(mm)
IC card / ID card:296.18*132.88*25(mm)
Packing list Machine * 1, power adapter * 1, manual * 1, certificate of conformity * 1

Care and Maintenance

  1. During the installation and use of the product, all electrical safety regulations must be strictly observed.
  2. Please use the power adapter provided by the regular manufacturer. For specific requirements of the power adapter, see the product parame- ter table.
  3. When installing on the gate, please make sure that the product is installed firmly.
  4. If the product does not work properly, please contact the after-sales service personnel. Do not disassemble or modify the product in any way. (The company does not assume any responsibility for problems caused by unauthorized modification or repair.
  5. Do not immerse the product in water. When the product is installed outdoors, try to use it with the rain cover provided by our company.
  6. Please understand that you are responsible for properly configuring all passwords and other related product security settings, and keeping your username and password properly.
  7. If the equipment does not work properly, please do not disassemble it for repair, otherwise it will affect the equipment warranty.
  8. Avoid extreme or extreme environments such as extreme high temperature (or low temperature), high humidity, vibration, radiation, and chemical corrosion during installation and use.

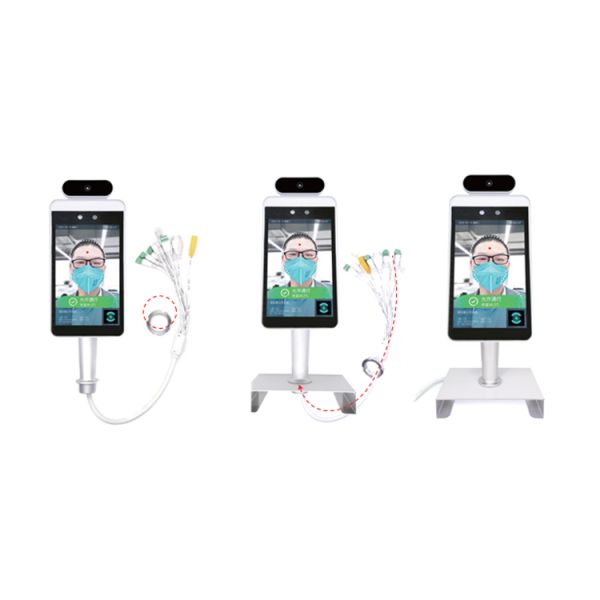

Product Image

DC 12V 8

DC 12V 8

DC 12V 8
DC 12V 8
DC 12V 8
