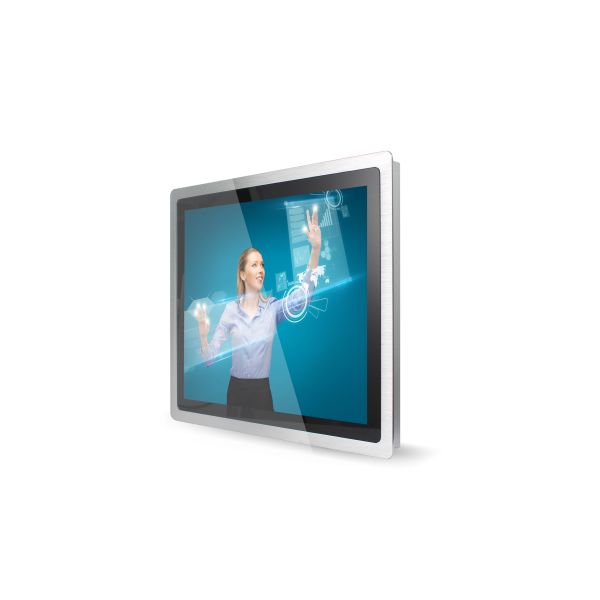

Panel Mount Industrial Touch Screen Monitor 12.1 Inch 800×600 Physical Resolution
Panel Mount Industrial Touch Screen Monitor 12.1 Inch 800×600 Physical Resolution
Panel Mount Industrial Touch Screen Monitor 12.1 Inch 800×600 Physical Resolution
Panel Mount Industrial Touch Screen Monitor 12.1 Inch 800×600 Physical Resolution
Specifications
Brand Name :
ITD/OEM
Model Number :
ITD12PMT5X31
Certification :
CE, FCC, RoHS
Place of Origin :
China
MOQ :
1PCS
Price :
TBA
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
10000PCS/Month
Delivery Time :
5-15 Business Days
Packaging Details :
1-5pcs/CTN, Safe, Firm, suitable for international shipping
Housing Material :
Steel Chassis, aluminum front bezel
Housing Type :
Panel/Embedded Mount, VESA Mounting
Operating Temperature :
-10~60℃(-20~70℃ optional)
Operating Humidity :
10%-90% (Non Condensing)
24/7/365 Use :
Supported
Resolution :
1024*768
Aspect Ratio :
4:3
name :
industrial grade touch screen monitor
Description

12.1 inch industrial flat bezel panel mount PCAP multi touch screen monitor display with IP65 front , anti-vandalism

ITD Flat Bezel Multi-Touch Panel Mount LCD Monitors feature Projected Capacitive (PCAP) Touchscreen with 10 multi touch points, vandal proof, water proof and dust proof. Our Multi-Touch Panel Mount LCDs come in different sizes and easily integrates into your enclosure, cabinet, console, wall, kiosks or other applications.

Flat Bezel Panel Mount LCD Monitor
Model Name ITD12PMN1X1
IP Rating N/A

LCD Panel
Screen Diagonal (Inch) 12.1”
Display Active Screen Size (cm) 246.0(H)×184.5(V)
Aspect Ratio 4:3
Physical Resolution 800×600
Maximum Resolution Supported 1920×1080
Colors 16.7M
Brightness (cd/m²) 300
Contrast Ratio 700:1
View Angels 80/80/70/70
Backlight/Backlight Lifetime LED Backlight with 50000Hours’Lifetime

Touch Panel
Touch Options Resistive, PCAP
Touch Drivers Windows, Linux, Android, Mac, Raspberry Pi

Input / Output
Video Input 1 × VGA
1 × DVI-I
1 × HDMI
Audio 1 × PC-Audio
Touch Connector 1 × USB
Power Connector 1 × DC2.0

Operation
Operating Temperature Range -10~60°C (-20~70°C Optional)
Humidity Range (RH) 10-90%
24/7/365 Use Supported

Power

Power Indicator Green LED
Power Input DC 12V
Power Consumption 21.9W

Order Information

12.1”Panel Mount LCD Monitor with Resistive Touch ITD12PMT1X1
12.1”Panel Mount LCD Monitor with PCAP Touch ITD12PMT5X1
12.1”Panel Mount LCD Monitor with Tempered Glass ITD12PMG1X1

BENEFITES

- Sealed Front Panel Design to NEMA 4/IP65

- Multi-Touch (PCT / PCAP) Touchscreen

- Rugged aluminum front bezel and aluminum alloy back chassis

- VGA/HDMI/DVI video connectors

- Easy to Service & Maintain in the field

- LED Backlight with 50000h

Panel Mount Industrial Touch Screen Monitor 12.1 Inch 800×600 Physical ResolutionPanel Mount Industrial Touch Screen Monitor 12.1 Inch 800×600 Physical Resolution

APPLICATION

Panel Mount Industrial Touch Screen Monitor 12.1 Inch 800×600 Physical Resolution
OUR FACTORY
Panel Mount Industrial Touch Screen Monitor 12.1 Inch 800×600 Physical Resolution
