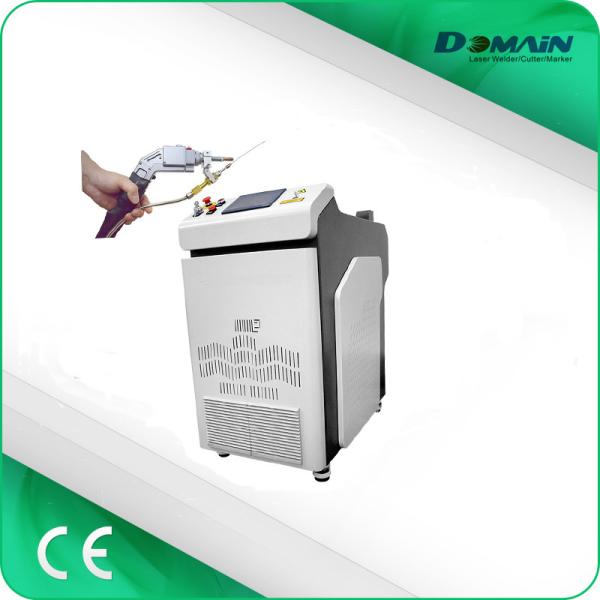

Handheld Wobble Head Fiber Laser Welding Machine For Aluminum
Handheld Wobble Head Fiber Laser Welding Machine For Aluminum
Handheld Wobble Head Fiber Laser Welding Machine For Aluminum
Handheld Wobble Head Fiber Laser Welding Machine For Aluminum
Specifications
Brand Name :
DOMAINLASER
Model Number :
CY-W1000FS/CY-W1500FS/CY-W2000FS
Certification :
CE,ISO9001,ROHS,GS
Place of Origin :
CHINA
MOQ :
1 unit
Price :
2999-12999usd
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100sets/per month
Delivery Time :
3-7 working days
Packaging Details :
Plywood cases
Voltage :
220V/380V
Condition :
New
Warranty :
2 years
After-sales service provided :
Engineers available to service machinery overseas,Overseas service center available,Free spare parts,Video technical support
Usage :
Welding,Carbon Steel welding,outdoor work with power source,weld materials of stainless steel
Laser wavelength :
1070nm
Application material :
Metal Stainless Steel Aluminum
fiber laser name :
Fiber Welding Machine
Laser power :
1000W /1500w
Applicable industry :
Building Material Shops, Machinery Repair Shops, Farms,
Guiderail Brand :
HIWIN
Description

Handheld automatic fiber laser welding machine for stainless steel iron aluminum copper brass with Wobble head

Handheld Wobble Head Fiber Laser Welding Machine For Aluminum

Fiber handheld laser welder Specification:

Model No. CY-W1000FS
Product Name Hand-held fiber laser welding machine
Wavelength 1070+/-10 nm
Laser power 800W,1000W,1500W
Power adjustment 10~100%
Laser spot diameter QBH
Fiber length Standard 10m or specify
Working methods CW/ Pulse/QCW mode
Speed range 0~120mm
Weld thickness 0.5-6mm
Welding gap requirement <=1mm
Modulation frequency 20Khz
Turn on/off time 20Us
Working temperature 15-35℃
Power supply 220V/50Hz/30A
Chilling methods Water chilled inbuilt
Machine size 990X540X1030mm
Net weight 180kg

Handheld 1000w Raycus channel letter optical fiber welder aluminum ss laser welding machine for saw blades chair table

Dowin laser welder welding machine adopts the latest generation of fiber laser and is equipped with self-developed welding head. It has the advantages of simple operation, beautiful weld seam, fast welding speed and no consumables. It can perfectly replace the traditional metal materials such as thin stainless steel plate, iron plate and galvanized plate.Argon arc welding, electric welding and other processes. The equipment has high reliability and can be continuously and stably processed in 24 hours. The compact design ensures a minimum floor space and is easy to move.

1000watt fiber laser welder Applied materials

1. Stainless steel: 316/304/430/201 two pieces stacked together can be up to 1mm thick each direct breakdown welding, butt welding can be two pieces together can be up to 5mm thick direct welding, sealing welding thickness in the range of 0.3mm-5mm can be welded, the welding tension can be up to 2 tons, sealing pressure test can be up to 20 kg.
2. Iron: The process and parameters are the same as those of stainless steel.
3. Steel: The process and parameters are the same as stainless steel.
4. Copper: 59/62 except copper, all other copper can be welded.
5. Aluminum: 1 series, 2 series, 3 series, 4 series, 5 series, 6 series and 7 series can be easily welded.
6. Titanium and molybdenum: can be welded.
7. Tungsten: Not weldable.
8. All other metals can be welded, not to mention.
9. Mixed weldable: copper and stainless steel, galvanized, nickel plated, etc.
Applicable industry: for mobile phone case, bracket, electronic communication, hardware, medical equipment, instrumentation, jewelry, sports supplies.Including mobile phone shield, mobile phone housing, MP4 housing, sensors, metal electrical housing, hard disk, micromotor, optical fiber coupler, lithium battery, clocks, glasses, electronic components, handicrafts and other products.
