1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation
1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation
1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation
1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation
1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation
1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation
1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation
1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation
Specifications
Brand Name :
Speedy Laser
Model Number :
SL-6060F
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
30 sets / month
Delivery Time :
15-20 days
Packaging Details :
plywood packing
name :
fiber laser cutting
cutting thickness :
6mm stainless steel

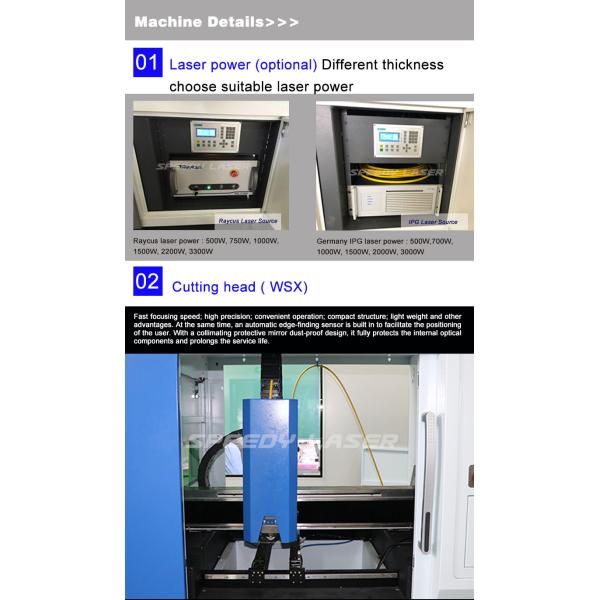

Laser source :
Raycus / IPG / Max

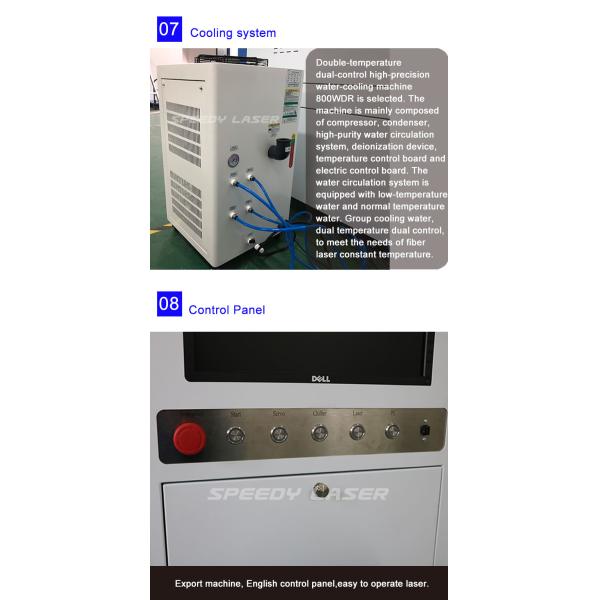

cooling :
water cooling
application :
metal steel cutting
Description

1500W Raycus Max IPG metal CNC fiber laser cutting machine for cutting 6mm steel

Machine features:

1. Excellent beam quality: Smaller focus diameter and high work efficiency.

2.High cutting speed: Cutting speed is more than 30m/min

3. Stable running: Adopting the top world Raycus fiber lasers, stable performance, key parts can reach

80,000 – 100,000 hours;

4. Low cost & Low maintenance: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%.

5. Low electric power consumption. Fiber line transmission no need reflect lens, save maintenance cost;

6. Easy operations: fiber line transmission, no adjustment of optical path;

7.Super flexible optical effects: Compact design, easy to flexible manufacturing requirements.

Fiber laser cutting Technical parameters:

NO Item Name Technical Parameter
1 Model SL-6060F-1000W
2 Laser generator Raycus fiber laser
3 Laser power 1000W
4 Laser wavelength 1064nm
5 Cutting table size 600mm*600mm
6 X axis travel 600mm
7 Y axis travel 600mm
8 Z axis travel 50mm
9 X Y Z axis repositioning accuracy ±0.02mm
10 X Y axis max position speed 80m/min
11 X Y axis max acceleration 1.0 G
12 Cutting speed 20m/min (materials thickness)
13 Notch gap width 0.1-0.6 mm
14 Cutting accuracy ± 0.1mm
15 Installed capacity 12KVA
16 Rated power voltage 380V/ 50-60Hz

1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation


Fiber laser cutting machine cutting samples:
1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation
1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation
Fiber laser cutting machine packing photo:
1500W Raycus Max IPG Small Fiber Laser Cutter Water Cooling Easy Operation
