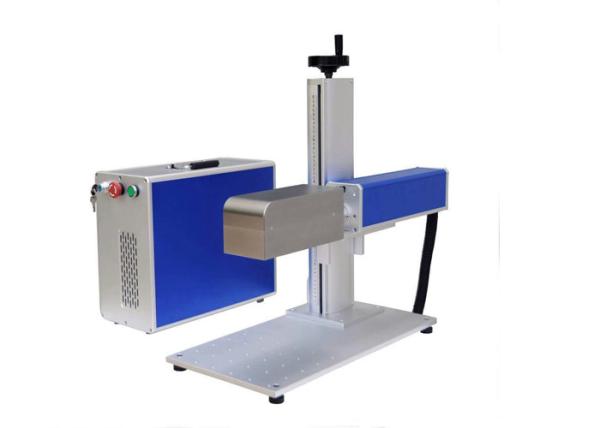

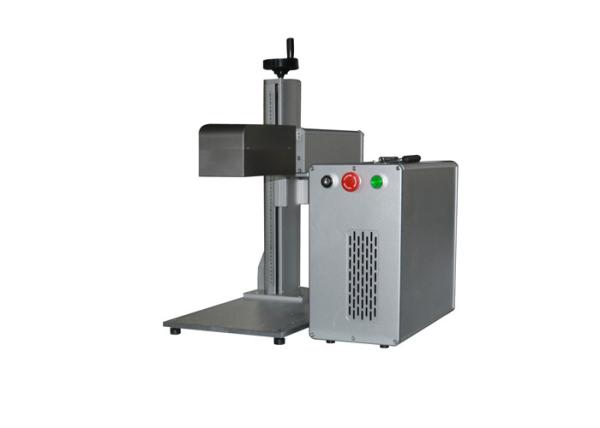

Feeltek Fiber Laser Marking Machine Curve Laser Engraving Machine
Feeltek Fiber Laser Marking Machine Curve Laser Engraving Machine
Feeltek Fiber Laser Marking Machine Curve Laser Engraving Machine
Feeltek Fiber Laser Marking Machine Curve Laser Engraving Machine
Feeltek Fiber Laser Marking Machine Curve Laser Engraving Machine
Feeltek Fiber Laser Marking Machine Curve Laser Engraving Machine
Specifications
Brand Name :
Speedy Laser
Model Number :
SL-FC 30W 50W
Certification :
CE FDA
Place of Origin :
China
MOQ :
1 sets
Price :
Negotiable
Payment Terms :
T/T,, Western Union
Supply Ability :
50 sets /month
Delivery Time :
10-15 days after payment
Packaging Details :
Standard wooden case packing
Laser source :
Raycus / IPG fiber laser
Laser power :
30W 50W

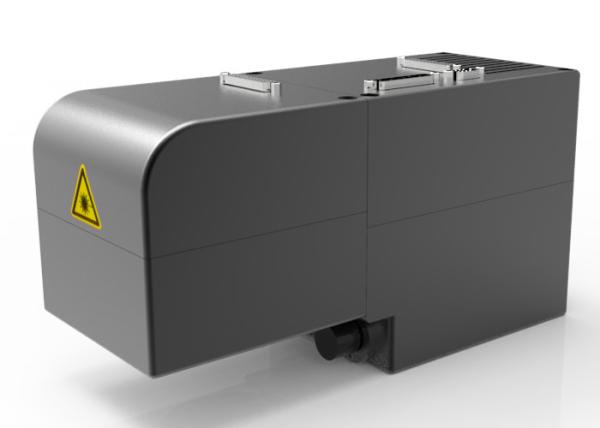

3D Scanner system :
Feeltek
Application :
Curve laser engraving
Software :
Lenmarking
Warranty :
2 year
3D Galvo :
FeelTEK
training :
accept
Description

Feeltek fiber laser marking machine metal curve laser engraving machine

Machine introduction:

SL-FC serial fiber laser marking machine adopt imported core components, with high-speed, high

precision Feeltek galvo scanner system, and with our 3D specified software Lenmark and control

system, it can engrave on any curved workpieces in a fine process, there is no off-focus problem. It can

also adjust focus length any time for deep engraving, which makes process efficiency and marking

quality much better than traditional 2D fiber laser marking machine. we make real 3D marking function

come true, leading a new era of laser processing.

Machine features:

Support 3D Application,support importing of STL model,self-developed model,etc,support 3D data

editing, rapid realization of 3D surface marking,relief processing.Self-developed software,support

further development,support multi-languages for better user experiencing.Optimization for

application,open interface,can be customized according to requirement.Provide production line

marking,visual positioning marking,automation marking and other solutions to meet the diverse needs

of customers.Dynamic compensation algorithm, ensure wide focus consistency, better effect.Support

multi file formats and coding,support importing of drawing softwares, vector graphic,text,bar code etc.

Technical parameters:

Item Name Technical Parameters
Model

SL-FC 30W

Laser Power

30W

Laser wavelength 1064nm
Laser type Raycus fiber laser
Beam diameter 7mm±1
Repeat frequency

20KHz-80KHz

Pulse width

131ns

Marking depth 0.01-0.5mm
Marking area 100×100mm / 200*200mm
Rated power consumption 800W
Operating voltage 110V- 240V/50-60 Hz/15A
Cooling Air Cooling
Packing size 91*43*86cm (L*W*H)
Gross weight 75 KG
Package Standard export wooden case

3d laser marking machine samples:
