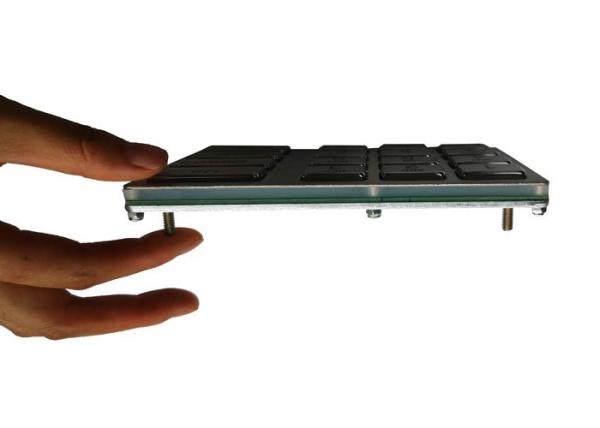

24 Bit Encryption And Decryption Security Keypad With 16 FDK Keys

ATM machine Keypad​ Main Features:

• 4x4 16 keys top panel mounted IP65 stainless steel metal keypad for ATM machine
• Suporting DES/TDES, AES. SM2, SM3, SM4
• Vandal proof keypad with skort key trip of 0.45mm
• Stainless steel buttons, water&vandal proof design, customized for free
• Password feature: PIN encryption, MAC calculation, data encryption and decryption
• Support non-encryption Model
• Encryption model: hardware encryption
• Advanced professional security chip
• Support 2*4 Function keys (FDK)
• Encryption support MAC,DES(3EDS) and Sm4
• Password length: 4~12
• Bit Key length: 8/16/24 bit
• Voltage: 5V
• Currency: <100mA
• Switch life: more than 3 million of operations
• Key size: big size
• Operating temperature: -30℃ ~+70℃
• Storage temperature: -40℃ ～ +80 ℃
• Keypad front panel: 145 x 100mm
• Overall: 145 x 100mm
• Front panel is with IP65 protection
• Gross Weight: 0.5kg
• Mainly for ticket vending machine, kiosk, bank machine, petrol station, parking system, other industrial fields

Metal Keypad Advantages:

• Our vandalism proof metal / stainless steel keypad is the ideal for the industrial applications.
• We have the full range of the metal keypad, by material, by size, by keys, by applications, by mount solution.
• Generally, 12 keys, 16 keys, 24 keys; stainless steel or zinc alloy,
• Front panel mount, rear panel mount or the desk top
• For ATM bank machine or standard keypad
• Long key stroke of 2.0mm or the short key stroke of 0.45mm
• The professional bank PCI keypad is aslo available, Encryption support MAC, DES(3EDS) and Sm4
• It is flexible to laser different language layout on the metal keypad to support global market.
• Durable quaility for less after sale problems.
• We can make the metal keypad delivery on due time.

Metal Trackballl Keypad Spec:

Metal Keypad FAQs:

Q1. Is it possible to label the customs's company information/logo/part number/SN?

Yes, it is no problem, we can make the personalization for customers.

Q2. Why the metal numeric keypad for the professional applications?

The traditional plastic keyboard goes dirty very easily, and is not rugged enough for the industrial app.

The metal keypad is vandal proof, dust proof.

Q3. Hoe to buy the stainless steel RS232 Pinpad?

Please email or call us with your detailed request, and then we will make the professional suggestions.

Q4. How to make the metal keypad delivery?

For the small quantity metal keypad, usually delivery by express courier like DHL, UPS, TNT, FedEx

For the big quantity metal keypad, usually by LCL sea shipping or air shipping.

Q5. What is the warranty for the metal keypad?

Standard 1-year, but the metal keypad warranty can be exteneded with extra cost.

Q6. Is it possible to make the customs Encryption pinpad?

Yes, we have the R&D engineers to make the customs pinpad for various projects.
