Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time
Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time
Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time
Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time
Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time
Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time
Specifications
Brand Name :
CBFI
Model Number :
BBI
Certification :
CE
Place of Origin :
Guangzhou,China
MOQ :
1 set
Price :
$100,000
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Delivery Time :
30 days after payment
Packaging Details :
International Standard Wooden Case
Compressor :
Germany
Cooling way :
Water Cooling
Size of Ice :
5kg,10kg,15kg,20kg……
Evaporator :
Coil pipe
daily capacity :
1ton to 120ton
Refrigerant :
R507 or R404a or R507
Packing :
International standard wooden case
Electrical components :
South Korea LG
Description

CBFI Long Life Time Stainless Steel 304 Ice Mold Block Ice Making Machine 1 Year Warrenty

1. Application:

  • Ice factory of the ports and docks,
  • Fressh for aquatic products
  • Distance transportation
  • Fishery
  • Food preservation
  • Special areas of cooling
  • Ice sculpture.

Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time

2. Machine details:

  • Capacity: 1 ton to 100 ton per 24 hours
  • Power consumption: 75kw.h per ton
  • Working condition: environmental temperature 32℃,water supply temperature 20℃

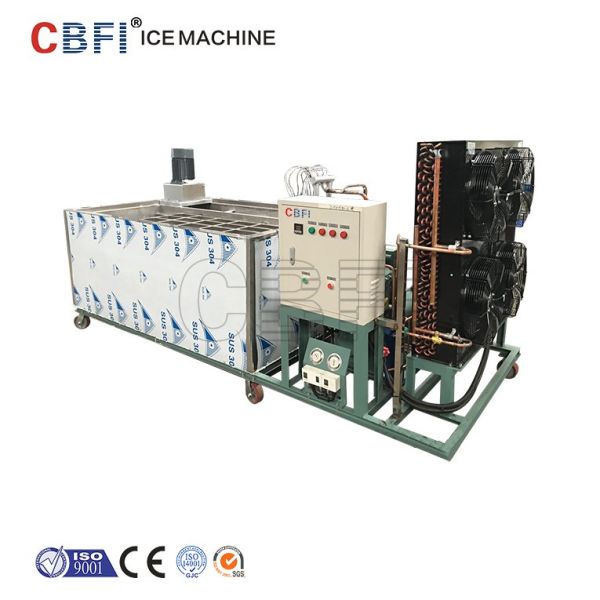

1 ton block ice machine

Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time

5 ton block ice machine

Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time

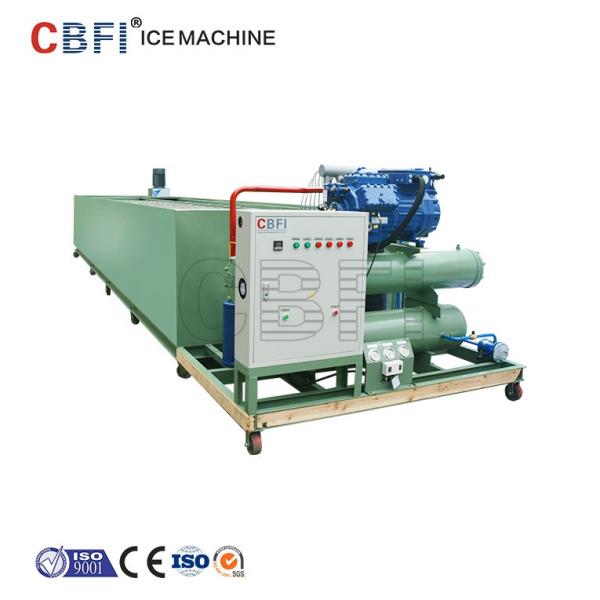

10 ton block ice machine

Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time

3. Machine model:

Model Ice Making
Capacity		 Rated
Power		 Agitator
Power		 Cooling Pump
Power		 Cooling Fan
Power		 Machine
Dimension		 Weight
NO. Ton/24h KW KW KW KW L*W*H(mm) KG
BBI-01-s2 1 3.92 1.5 1..1 0.18 2600*1400*830 990
BBI-02-s2 2 6.42 1.5 1.5 0.37 3600*1700*795 1100
BBI-03-s2 3 8.66 2.2 1.5 0.56 4320*1670*795 1300
BBI-04-s2 4 11.19 2.2 2.2 0.75 2000*800*1600
/3110*1470*1075		 1500
BBI-05-s2 5 13.07 2.2 2.2 0.75 6690*1880*800 1700
BBI-06-s2 6 16.79 3 2.2 0.75 2000*800*1600
/5340*1380*1150		 1900
BBI-08-s2 8 19.61 4 4 1.5 8490*2000*1370 2300
BBI-10-m2 10 24 4 4 1.5 2500*1200*2000
/6360*3710*1565		 2700
BBI-15-m2 15 47.54 8 7.5 1.5 3100*1200*2000
/9280*2260*1560		 3700
BBI-20-l2 20 71.5 8 7.5 2.2 3500*1500*2200
/11560*4200*1565		 4700
BBI-30-l2 30 107.7 16 15 4 3500*1500*2200
/11560*5430*1600		 6700
BBI-40-l2 40 156 16 15 4.4 2*3500*1300*2200
/11560*7080*1600		 8700
BBI-50-l2 50 183.5 16 11 3 2*3500*1300*2200
/14170*7080*1600		 10700
BBI-100-l2 100 274.8 30 30 15 4*3500*1300*2200
/12000*13500*1450		 21400

4. Customer project:

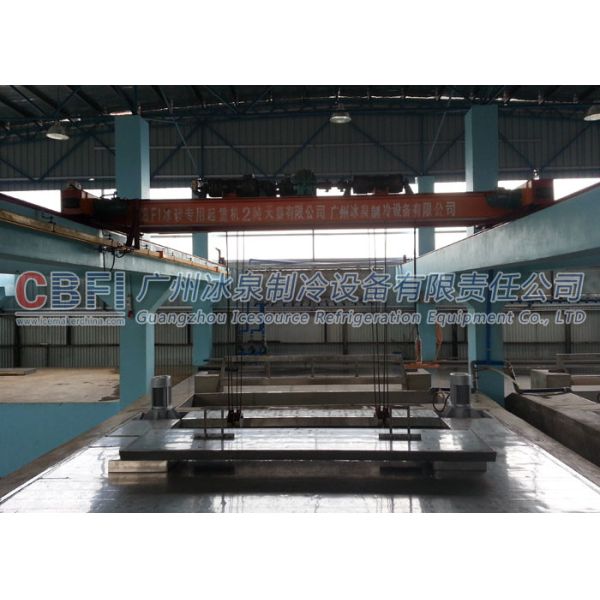

CBFI 60 ton Block Ice Machine in Malaysia

Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time

CBFI container block ice machine for Chad

Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time

CBFI 12 ton block ice machine in Philippines

Stainless Steel 304 Ice Mold Block Making Machine 1 Year Warrenty Long Life Time
