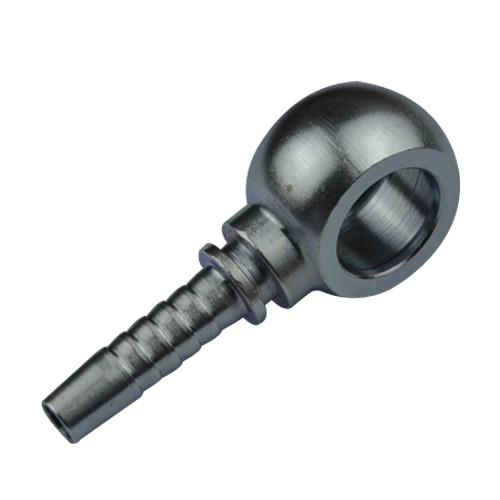

BSP BANJO Metric Hydraulic Hose Fittings DIN 7642 Forged Technics
BSP BANJO Metric Hydraulic Hose Fittings DIN 7642 Forged Technics
Specifications
Brand Name :
XD
Model Number :
72011
Place of Origin :
NINGBO CHINA
MOQ :
negotiable
Price :
negotiable
Payment Terms :
D/P, L/C, T/T
Supply Ability :
100000 Piece/Pieces per Month hydraulic reducer pipe reducing fitting
Delivery Time :
wihtin 30 days or as percustomers' requlement.
Packaging Details :
export carton, wood pallet
Material :
Stainless Steel, Brass, stainless steel, carbon steeL
technics :
Forged
Type :
Coupling
Connection :
BSP BANJO
Color :
ucp
Surface treatment :
Cr+3, Cr+6, Zn-Ni, Zinc plated
Products :
BSP BANJO Hydraulic Hose Fittings
Brand Name: :
XD
Shape :
Equal
Description

BSP BANJO Hydraulic Hose Fittings DIN 7642

  • DIN Hydraulic Fittings
  • BSP Thread Adapter
  • JIC Hydraulic Adapters
  • Metric Hydraulic Adapters
  • SAE Flange Adapter
  • Hydraulic Hose Fittings JIC
  • BSP Hydraulic Fittings
  • Metric Hydraulic Hose Fittings
  • SAE Flange Fittings
  • Reusable Hose Fittings
  • Interlock Hose Fittings
  • Socketless Hose Fittings
  • Hydraulic Hose Ferrule

BSP BANJO Metric Hydraulic Hose Fittings DIN 7642 Forged Technics

PART NO. THREAD E HOSE BORE DIMENSIONS
DN DASH A d D H
72011-02-03 G1/8"X28 5 3 18 9.9 24 16
72011-02-04 G1/8"X28 6 4 18.5 9.9 24 16
72011-04-03 G1/4"X19 5 3 19 13.3 24 15
72011-04-04 G1/4"X19 6 4 19.5 13.3 24 15
72011-04-05 G1/4"X19 8 5 19.5 13.3 24 15
72011-04-06 G1/4"X19 10 6 19.5 13.3 24 15
72011-06-04 G3/8"X19 6 4 22 16.7 29 20
72011-06-05 G3/8"X19 8 5 22 16.7 29 20
72011-06-06 G3/8"X19 10 6 22 16.7 29 20
72011-06-08 G3/8"X19 12 8 23 16.7 29 20
72011-08-05 G1/2"X14 8 5 27.5 21 38 25
72011-08-06 G1/2"X14 10 6 27.5 21 38 25
72011-08-08 G1/2"X14 12 8 28 21 38 25
72011-08-10 G1/2"X14 16 10 29 21 38 25
72011-10-10 G5/8"X14 16 10 28 23 40 27
72011-12-10 G3/4"X14 16 10 32 26.5 48 31
72011-12-12 G3/4"X14 20 12 32 26.5 48 31
72011-16-08 G1"X11 12 8 40 33.3 60 42
72011-16-12 G1"X11 20 12 40 33.3 60 42
72011-16-16 G1"X11 25 16 41 33.3 60 42

Note: 1.For use with braided hoses.

2.If use with spiral hoses, hose fitting series number is 72012-XX-XX.

We are specialized in all kinds of hydraulic hose fittings, adapters, ferrules, flanges.

We can provide OEM service and develop new products according to customer's drawings and samples.

  1. Material: carbon steel, stainless steel, brass, etc.
  2. Surface treatment: Zinc plated, Zn-Ni plated, Cr3, Cr6 plated
  3. Standard:SAE, DIN, ISO, BS.
  4. Thread: metric, bsp, bspt, npt, jic, sae, orfs, npsm, etc.
