• Motor wheelbase: 1200mm
• Image transmission distance: 10~15km
• HD Camera: 1080P
• Payload: 0~5kg
• Max takeoff weight: 25kg
• Wind resistance: 6
• Working time: 30~50min
• Horizontal speed: 0～15m/s

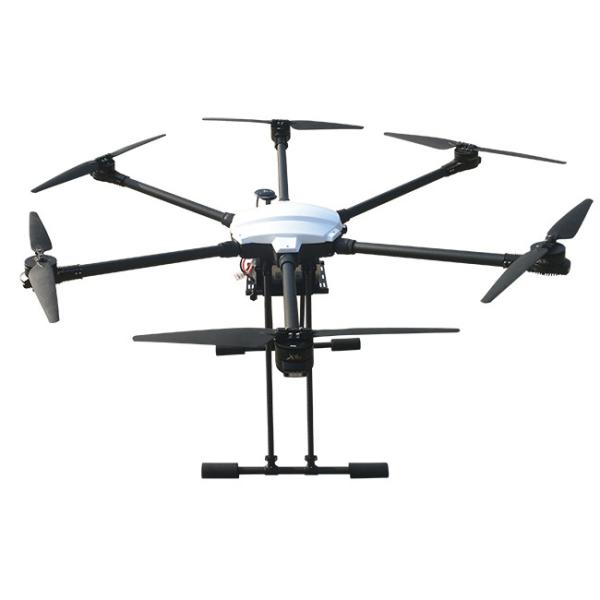

Chassis of Drone

• Fully waterproof fuselage: The fuselage adopts the integrated waterproof design, supports washing (Excluding motor and battery parts), and the shell surface adopts the star-bright white or black coating, with beautiful shape and eye-catching color.
• The whole machine adopts the classic umbrella-shaped folding method, which minimizes the size after folding, and is convenient for storage.

• 3D Sand Table Modeling of Emergency Disaster
• Aerial emergency surveillance patrol
• Emergency communication network relay
• Road patrol
• Power inspection
• River conservancy inspection

Suspension components

N3TC-T320

10x optical zoom +320Thermal imaging +1500m range measuring three-light pod

• N3TC-T320 is an integrated 10x optical zoom camera, 320 thermal imager and 1500m laser ranging high-precision special three-axis stabilization pod.
• The pod adopts compact design and has the characteristics of high stability, small size, light weight and low power consumption.
• Visible light camera adopts HD sensor with 4 million effective pixels; thermal imaging adopts imported 320x240 resolution detector and Built-in baffle; 1500 meters high precision ranging function.
• Provide software ground station, support picture-in-picture display dual-channel video, control PTZ and camera directly via network, support local TF storage and network file read and write operation, support dual-channel synchronous video, support a variety of picture-in-picture mode and false color switch.

N2TC-T640-4K

20x optical zoom 4K +640Thermal imaging two-light pod

• N2TC-T640-4K is a 3-axis high-precision gimbal with 20x optical zoom SONY RGB camera, it integrated with 20x optical zoom EO sensor which provides not only 4K IP output but also 4K picture & video storage and with a 25mm lens 640*480 IR thermal sensor.
• It supports IR thermal and visible PIP switch, IR color palette switch, photographing and video, target tracking, thermal digital zoom.
• When the external GPS and time input, GPS coordinate and shooting time can be saved in image file, OSD can display GPS and real-time as well.
• It features aluminum alloy housing and anti-interference.
• The 3 axis gimbal can achieve stabilization in yaw, roll and pitch.
• The integrated design of damping system and gimbal can greatly reduce mechanical vibration.
• It is widely used in UAV industries of public security, electric power, fire fighting, zoom aerial photography and other industrial applications.
