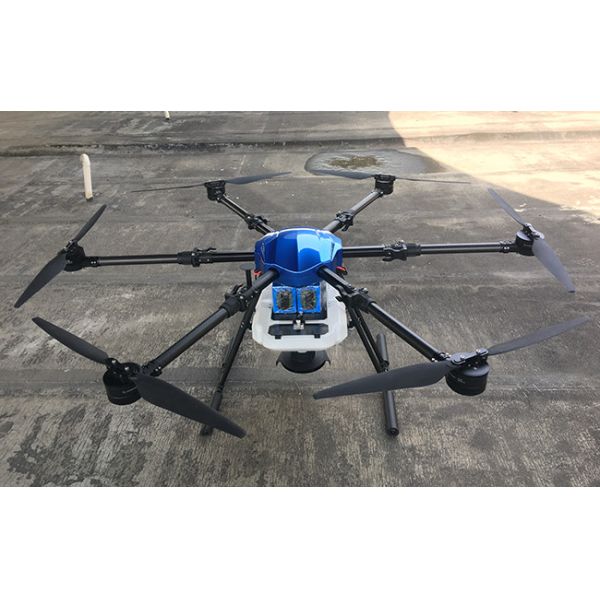

NSA - 622 Fertilizer Spraying Drone 22L Motor RTK Centimeter Positioning
NSA - 622 Fertilizer Spraying Drone 22L Motor RTK Centimeter Positioning
NSA - 622 Fertilizer Spraying Drone 22L Motor RTK Centimeter Positioning
NSA - 622 Fertilizer Spraying Drone 22L Motor RTK Centimeter Positioning
Specifications
Brand Name :
NLD
Model Number :
NSA-622
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Aluminum Box
Type :
Fertilizer Spraying Drone With RTK Centimeter Positioning
Feed Tank :
22L
Material :
Carbon Fiber + Aviation Aluminum
Charger (NFC15) :
650w 15A dual channel
Foldable propeller :
6*3090
Wheelbase :
1648mm
Description

NSA-622 Fertilizer Spraying Drone With 6*100KV Motor And RTK Centimeter Positioning

Model NSA610 NSA622
Rotor 6 6
Take-off Capacity 30kg 42kg

Hovering accuracy

horizontal

 +/- 1.5m +/- 1.5m

Hovering accuracy

vertical

 +/- 0.5m +/- 0.5m
Wind resistance 4～5 4～5
Motor 6*180KV 6*100KV
Electronic Speed Control 80A 80A
Flying Speed 0~10m/s 0~10m/s
Motor applicable temperature -20～50℃ -20～50℃
Paddle 2388 3090
Feed Tank 10L 22L

Flight Controller

2 CPU + 3 IMU

2 CPU + 3 IMU
Flying Time (with payload) 10~15min 10~15min

Charger (NFC15)

 650w 15A dual channel

650w 15A dual channel
Flying distance 5000m 5000m
Folded Size 945*848*562mm 1102*979*600mm
Spreading Width 3~6m 3~6m
Spread Distance 2~5m 2~5m

Material

Carbon Fiber + Aviation Aluminum

Carbon Fiber + Aviation Aluminum
Solid particles 0.5~6mm 0.5~6mm
Expand Size 1992*1992*562mm 2428*2428*600mm

Spreading System

Motor + door opening + lack of material detection

Motor + door opening + lack of material detection
Wheelbase 1407mm 1648mm
Working distance 2000m 2000m
Battery / Quantity 6S/22000mAh / 2pcs 6S 22000mAh / 2pcs

Remote Controller

Remote control + digital transmission 5.5” screen + Android + ground workstation

Remote control + digital transmission 5.5” screen + Android + ground workstation
FPV Camera Optional Optional
Terrain following radar Optional Optional
RTK centimeter positioning Optional Optional
Obstacle avoidance radar Optional Optional

Flight Controller (RC)

 YES YES

GPS Dot Device

 YES YES

Aluminum Case

 YES YES

NSA - 622 Fertilizer Spraying Drone 22L Motor RTK Centimeter Positioning

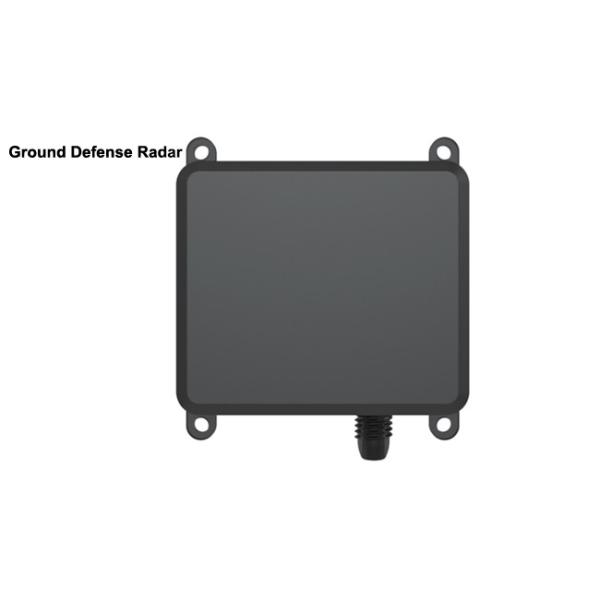

Ground Defense Radar

Characteristic:

1. Strong penetration, not affected by light.

2.Strong anti-interference ability and good environmental applicability.

3. Stable performance with detection range of 15m.

4. Power saving and efficient, total power consumption is only 1.5W 4. 5. All day work.

6. Small in size and light in weight.

Ground defense radar uses millimeter-wave radar technology.

Through the continuous scanning of the radar, the drone can sense the terrain change of the flight direction and adjust the flight height in time according to the terrain and the crop height to realize the ground defense flight and ensuring uniform spraying in flight.

Ground defense radar has stable detection performance and good environment practicality, strong anti-interference ability, not affected by light, far detection distance, with all-weather and all-day characteristics.

NSA - 622 Fertilizer Spraying Drone 22L Motor RTK Centimeter Positioning
