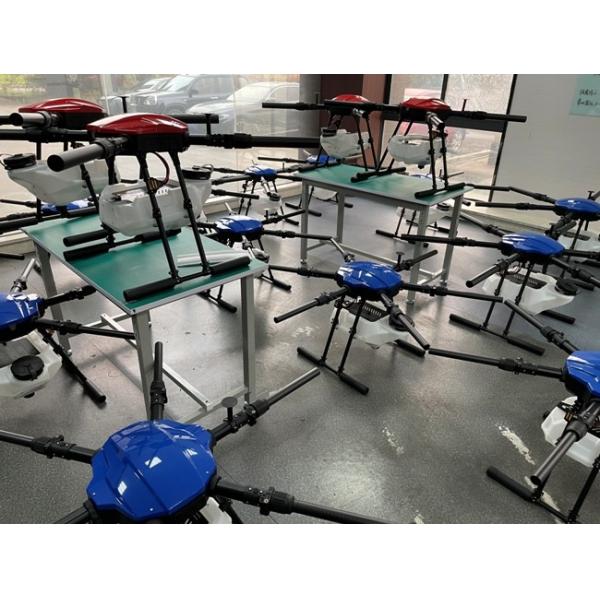

Carbon Fiber Fertilizer Spraying Drone 120A Aviation Aluminum With Remote Controller
Carbon Fiber Fertilizer Spraying Drone 120A Aviation Aluminum With Remote Controller
Carbon Fiber Fertilizer Spraying Drone 120A Aviation Aluminum With Remote Controller
Carbon Fiber Fertilizer Spraying Drone 120A Aviation Aluminum With Remote Controller
Specifications
Brand Name :
NLD
Model Number :
NSA-422
Certification :
ISO9001 CE FCC
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
100sets/month.
Delivery Time :
15~25 days
Packaging Details :
Aluminum Box
Type :
NSA-422 Fertilizer Spraying Drone
Take-off Capacity :
38kg
Electronic Speed Control :
120A
Wheelbase :
1416mm
Folded Size :
648*671*628mm
Expand Size :
1848*1848*628mm
Description

Carbon Fiber And Aviation Aluminum NSA-422 Fertilizer Spraying Drone With Remote Controller

Model NSA422
Rotor 4

Spreading System

Motor + door opening + lack of material detection

Hovering accuracy

horizontal

 +/- 1.5m

Hovering accuracy

vertical

 +/- 0.5m
Wind resistance 4～5
Feed Tank 22L
Motor 4*110KV
Working distance 2000m
Battery / Quantity 6S/22000mAh / 2pcs
Paddle 3411

Remote Controller

Remote control + digital transmission 5.5” screen + Android + ground workstation
Electronic Speed Control 120A
Take-off Capacity 38kg
Flying Time (with payload) 10~15min

Charger (NFC15)

650w 15A dual channel
Flying Speed 0~10m/s
Motor applicable temperature -20～50℃
Spread Distance 2~5m
Solid particles 0.5~6mm
Spreading Width 3~6m
Wheelbase 1416mm
Folded Size 648*671*628mm
Expand Size 1848*1848*628mm
Flying distance 5000m

Flight Controller (RC)

 Yes

GPS Dot Device

 Yes
FPV Camera Optional
Obstacle avoidance radar Optional
Terrain following radar Optional
RTK centimeter positioning Optional

Carbon Fiber Fertilizer Spraying Drone 120A Aviation Aluminum With Remote Controller

Other accessories

Ground Defense Radar
  • Ground defense radar uses millimeter-wave radar technology. Ground defense radar has stable detection performance and good environment practicality, strong anti-interference ability, not affected by light, far detection distance, with all-weather and all-day characteristics.

Obstacle Avoidance Radar
  • Obstacle avoidance radar is mainly used to measure the relative distance between the UAV and the obstacle in front of the flight, so as to effectively avoid the obstacle. Its sensitivity is high, the detection distance is long, the signal transmission is fast and stable, and it can detect a diagonal pull of more than 1cm Electric wires, small trees with 10cm trunks, 1.7m high people and 15cm electric poles, have a good obstacle avoidance function for high-speed running drones, and are very suitable for plant protection drones to operate in complex outdoor environments.

J-RTK centimeter-level precision positioning system

  • J-RTK is a new generation of high-precision navigation and positioning system. It uses real-time dynamic differential technology to improve the three-dimensional positioning accuracy from meters to centimeters. J-RTK has the characteristics of high positioning accuracy and strong anti-magnetic interference. It can also ensure reliable operation in the environment of strong magnetic interference such as high-voltage lines and metal buildings.

Product tags

fertilizer spraying drone

,

agriclture drone for spraying

,

agricultare sprayer drone
