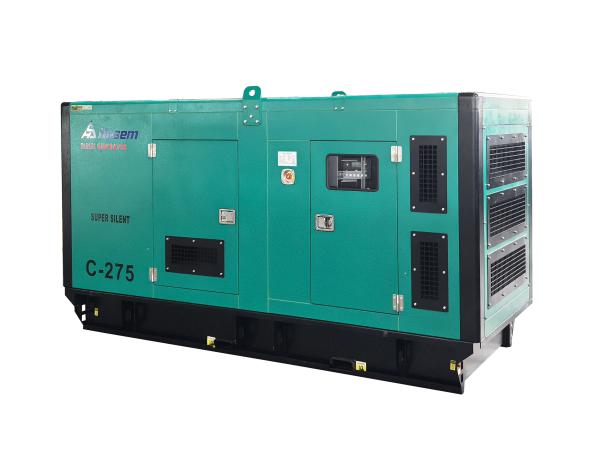

Cummins 250kVA Soundproof Diesel Genset With 6LTAA8.9-G2 Engine For for Commercial Backup Use
Cummins 250kVA Soundproof Diesel Genset With 6LTAA8.9-G2 Engine For for Commercial Backup Use
Cummins 250kVA Soundproof Diesel Genset With 6LTAA8.9-G2 Engine For for Commercial Backup Use
Cummins 250kVA Soundproof Diesel Genset With 6LTAA8.9-G2 Engine For for Commercial Backup Use
Specifications
Brand Name :
Hosem
Model Number :
A-C275S
Certification :
CE
Place of Origin :
Fuzhou, China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Delivery Time :
30-35days
Packaging Details :
Wooden Package or Plastic Foam Package
Prime Power :
250kVA
Standby Power :
275kVA
Frequency :
50Hz
Rate Current :
360.9A
Engine Model :
Cummins 6LTAA8.9-G2
No. of Cylinder :
6 Cylinder in line
Governor :
Electric
Alternator :
Hosem ASF 274K
AVR :
SX460
Controller Brand :
Smartgen HGM6120
Description

Cummins 250kVA Soundproof Diesel Genset With 6LTAA8.9-G2 Engine For for Commercial Backup Use

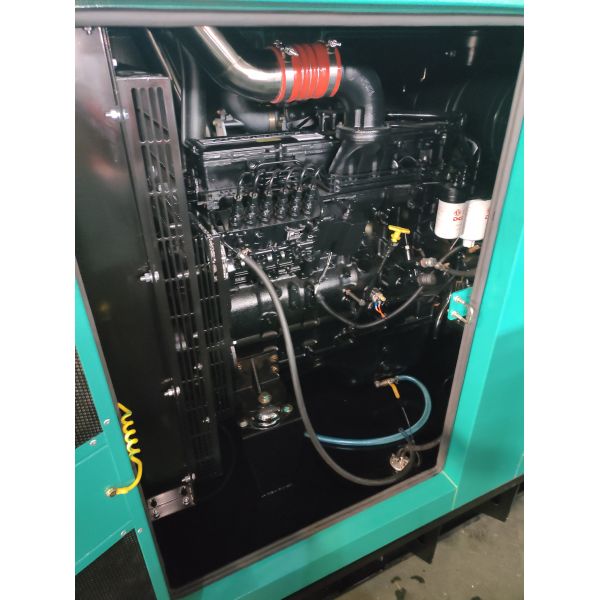

250kVA Cummins soundproof diesel generator set is designed for commercial and industrial backup power. It features a reliable Cummins 6LTAA8.9-G2 6-cylinder inline turbocharged engine, ensuring stable power and excellent performance.

Our company diesle generator set is equipped with a high-quality Hosem alternator, with Leroy Sommer and Stamford alternator also available as options. It is equipped with an automatic voltage regulation function (AVR SX460) to ensure stable power supply even under varying loads.

Equipped with Smartgen HGM6120 control panel, it provides comprehensive protection and monitoring functions, including automatic start and stop, high coolant temperature alarm, low oil pressure alarm, low oil level alarm, overload alarm and battery voltage abnormality alarm , etc., ensuring safe and reliable operation of the diesel genset.

Cummins 250kVA Soundproof Diesel Genset With 6LTAA8.9-G2 Engine For for Commercial Backup Use

Specification

Generator Set Specification
Model A-C275S
Max. Power kVA 275
kW 220
Rate Power kVA 250
kW 200
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 360.9
Fuel Tank Capacity L 450
Dimension For Open-type Genset mm 2654 X 1156 X 1595
Weight For Open-type Genset kg 1750
Dimension For Soundproof Genset mm 3650 X 1140 X 1700
Weight For Soundproof Generator kg 2200
Noise Level for Soundproof Generator at 7M dBA 75
Battery Two of Free Maintenance Battery

Datasheet​--Engine

Engine Specification
Engine Manufacturer Dongfeng Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model 6LTAA8.9-G2
No. of Cylinder 6 Cylinder in line
Aspiration Turbocharged and Air to Air Aftercooled
Governor Electric
Engine Max. Output Power kW 242
Displacement L 8.9
Compression Ratio 16.6 : 1
Starting Voltage V 24
Bore mm 125
Stroke mm 136
Lubrication Oil Capacity L 36
Intake Air Flow M3/Min 18.7
Fuel Consumption at 100% Load L/H 53

Datasheet​--Alternator

Alternator Specification
Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
Alternator Model ASF 274 K
Alternator Brand Hosem
Rate Output kVA 250
Frequency Hz 50Hz
Altitude M ≤1000
Insulation Class H
Phase 3 Phase
Working Temperature without power decrease ≤40℃
Working Altitude without power decrease ≤1000m
Automatic Voltage Regulation SX460
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Datasheet​--Controller

Control Panel Specification
Controller Brand Smartgen
Controller Model HGM6120
Breaker Brand Delixi
Breaker Capacity (A) 400
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

FAQ:

Q1: What is the price?

A: The price of our diesel generator is based on several factors, including the brand, power capacity, order quantity, payment terms(such as FOB, EXW, CIF) and the customer’s specific requirements etc. For an accurate quotation, please feel free contact me for quotation.

Q2: How long does it take to deliver this diesel generator set?

A: The delivery time for diesel generators is usually around 30 days.

Q3:What is the packaging of diesel generator?

A: The packaged in a wooden package or plastic foam package.

Q4:What is the lead time?

A: 30-35 workings days.
