100kVA Cummins Diesel Genset with 6BT5.9-G2 Engine 80kW Prime Power
100kVA Cummins Diesel Genset with 6BT5.9-G2 Engine 80kW Prime Power
100kVA Cummins Diesel Genset with 6BT5.9-G2 Engine 80kW Prime Power
100kVA Cummins Diesel Genset with 6BT5.9-G2 Engine 80kW Prime Power
100kVA Cummins Diesel Genset with 6BT5.9-G2 Engine 80kW Prime Power
100kVA Cummins Diesel Genset with 6BT5.9-G2 Engine 80kW Prime Power
Specifications
Brand Name :
Hosem
Model Number :
A-C110S
Certification :
CE
Place of Origin :
Fuzhou, China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
500 Units Per Month
Delivery Time :
30-35days
Packaging Details :
Wooden Package or Plastic Foam Package
Prime Power :
80kW
Standby Power :
88kW
Frequency :
60Hz
Rate Voltage :
220V
Engine Model :
Cummins 6BT5.9-G2
No. of Cylinder :
6 Cylinder in line
Governor :
Electric
Alternator Model :
Hosem ASF 224G
Insulation :
Class H
Protection Grade :
IP 23
Description

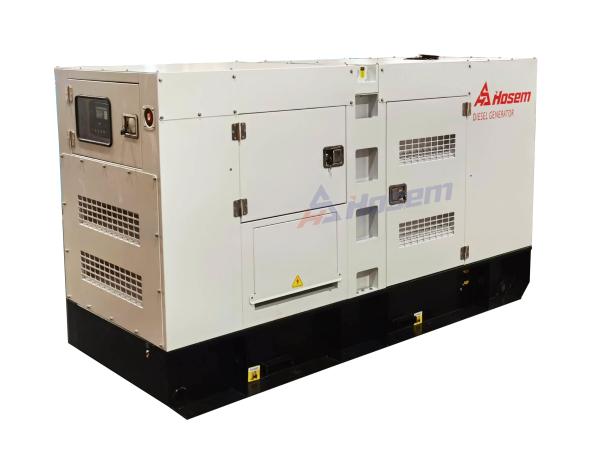

Slient 100kVA Cummins Diesel Genset High Efficiency With Reliable 6BT5.9-G2 Engine

This silent 100 kVA diesel generator set is based on the proven Cummins 6BT5.9-G2 engine and features an electronic speed governor for precise frequency regulation. It delivers 80kW of prime power (100kVA) and 88kW of standby power (110kVA).

Advanced control and protection features further enhance performance and safety. The 100kVA diesel generator set is equipped with a Deep Sea DSE6120 controller, whose LCD panel displays key parameters (voltage, current, frequency, engine status, etc.).

Each generator set will undergo rigorous factory load testing to verify performance, and only high-quality products will be provided to customers.

100kVA Cummins Diesel Genset with 6BT5.9-G2 Engine 80kW Prime Power

Specification

Generator Set Specification
Model A-C110HS
Max. Power kVA 110
kW 88
Rate Power kVA 100
kW 80
Frequency Hz 60
Rate Voltage V 220
Rate Current A 262.4
Dimension For Open-type Genset mm 2180 X 820 X 1450
Weight For Open-type Genset kg 2900 X 1080 X 1500
Dimension For Soundproof Genset mm 75
Weight For Soundproof Generator kg 411

Datasheet​--Engine

Engine Specification
Engine Manufacturer Chongqing Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model 6BT5.9-G2
No. of Cylinder 6 Cylinder in line
Aspiration Turbocarged
Governor Electric
Engine Max. Output Power kW 110
Displacement L 5.9
Starting Voltage V 24
Bore mm 102
Stroke mm 120
Lubrication Oil Capacity L 16.4

Datasheet​--Alternator

Alternator Specification
Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
Alternator Model ASF 274CS
Alternator Brand Hosem
Rate Output kVA 103
Frequency Hz 60Hz
Altitude M ≤1000
Insulation Class H
Voltage Regulation AVR Model SX460
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Datasheet​--Controller

Control Panel Specification
Controller Brand Deepsea
Controller Model DSE6120
Breaker Brand Delixi
Breaker Capacity 80A
Battery Charger Supply
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

FAQ:

Q1: What is the price?

A: The price of our diesel generator is based on several factors, including the brand, power capacity, order quantity, payment terms(such as FOB, EXW, CIF) and the customer’s specific requirements etc. For an accurate quotation, please feel free contact me for quotation.

Q2: What is your MOQ of this item?

A: 1 unit.

Q3:What is the packaging of diesel generator?

A: The packaged in a wooden package or plastic foam package.

Q4:What is the lead time?

A: 30-35 workings days.
