Specifications
Brand Name :
Hosem
Model Number :
A-SH124S
Certification :
CE/ ISO
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set / Months
Delivery Time :
30 days
Packaging Details :
Plastic films or ply-wood
Model :
A-SH124S
Engine Brand :
SDEC
Max. Power :
99kW/124kVA
Engine Model :
4HTAA4.3-G23
Rate Power :
90kW/113kVA
Alternator Brand :
Hosem
Frequency :
50Hz
Alternator Model :
ASF274DS
Rate Voltage :
400/230V
Rate Current :
163.1A
Description

Soundproof Diesel Generator Set Powered by SDEC 4HTAA4.3-G23 Engine

The Soundproof Diesel Generator Set powered by the SDEC 4HTAA4.3-G23 engine is designed to provide dependable, efficient, and low-noise power for a wide range of commercial and industrial applications. With its advanced acoustic enclosure and proven engine technology, this generator set ensures stable electricity supply while maintaining reduced operating noise.

The 4HTAA4.3-G23 diesel engine is known for its durability, strong load capacity, and fuel-efficient performance. Combined with a high-quality alternator and intelligent control system, this generator set delivers reliable three-phase power suitable for both prime power and standby power operation.

Built with heavy-duty materials and precision engineering, the generator set is suitable for installation in environments where stable power and controlled noise levels are essential.

Key Features

  • Reliable SDEC Diesel Engine

Powered by the SDEC 4HTAA4.3-G23 engine, the generator offers excellent durability, smooth operation, and efficient fuel consumption, making it suitable for long-term operation.

  • Low-Noise Soundproof Canopy

The generator is enclosed in a heavy-duty soundproof canopy with sound-absorbing materials that significantly reduce operating noise, making it suitable for commercial areas and urban installations.

  • Stable Power Output

A high-quality alternator ensures stable voltage and frequency output, protecting electrical equipment and supporting continuous operation.

  • Efficient Cooling System

The advanced radiator and airflow design allow the generator to operate reliably even in high ambient temperatures.

  • Easy Maintenance Design

Wide access doors and a practical internal layout provide easy access to key components, simplifying routine inspection and servicing.

Specification of Soundproof Diesel Generator with SDEC Engine 4HTAA4.3-G23

Generator Set Specification
Model A-SH124S
Max. Power kVA 124.0
kW 99.2
Rate Power kVA 113.0
kW 90.4
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 163.1
Dimension For Open-type Genset mm 2150 X 900 X 1420
Weight For Open-type Genset kg 1200
Dimension For Soundproof Genset mm 2900 X 1080 X 1500
Weight For Soundproof Generator kg 1800
Noise Level at 7 Meters dBA 75
Fuel Tank Capacity Liters 250
Battery Two of Free Maintenance Battery

Engine Specification
Engine Manufacturer Shanghai Diesel Engine Co., Ltd.
Engine Brand SDEC
Engine Model 4HTAA4.3-G23
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged and Air to Air Aftercooled
Governor Electric
Engine Max. Output Power kW 125
Displacement L 4.300
Starting Voltage V 24
Bore mm 105
Stroke mm 124
Lubrication Oil Capacity L 11-13
Compression Ratio 16 : 1
Intake Air Flow M3/Min 8
Fuel Consumption at 100% Load L/H 28.3

Alternator Specification
Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
Alternator Model ASF 274DS
Alternator Brand Hosem
Rate Output kVA 112
Frequency Hz 50Hz
Current A 161.7
Insulation Class H
Voltage Regulation SX460
Protection Grade IP23
Working Temperature without Output Decrease ≤1000m
Phase 3 Phase
Temperature Rise 125 Degree Celsius
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

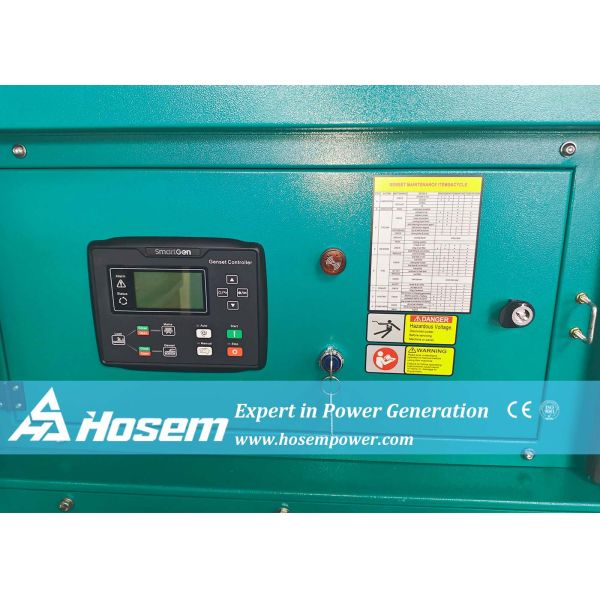

Control Panel Specification
Controller Brand Smartgen
Controller Model HGM6120
Breaker Brand Delixi
Breaker Capacity A 250
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with AMF Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Soundproof Diesel Generator Set Powered by SDEC 4HTAA4.3-G23 Engine

Typical Applications

This SDEC soundproof diesel generator is ideal for:

  • Industrial facilities and factories
  • Commercial buildings and offices
  • Construction sites
  • Hospitals and healthcare facilities
  • Backup power for critical infrastructure
  • Remote locations with unstable grid supply

FAQ – Soundproof Diesel Generator with SDEC Engine

Q1: Is this generator suitable for noise-sensitive environments?

A: Yes. The generator is equipped with a soundproof canopy and industrial muffler that significantly reduce operating noise, making it suitable for urban areas, commercial buildings, and residential surroundings.

Q2: Can the generator operate for long hours continuously?

A: Yes. When properly maintained and operated within recommended load limits, the generator can run for extended periods as prime or standby power.

Q3: Can the generator be customized for specific project requirements?

A: Yes. Hosem Power offers customization options such as ATS (Automatic Transfer Switch), remote monitoring systems, different alternator brands, and voltage or frequency configurations.

Q4: What warranty does Hosem Power provide?

A: We provide a one-year or 1,000 running hours warranty, whichever comes first. During the warranty period, replacement parts for quality issues are supplied free of charge.

Q5: Is technical support available after purchase?

A: Yes. Hosem Power provides technical assistance, spare parts support, and maintenance guidance to ensure reliable generator operation.

If you are looking for a cost-effective, reliable soundproof diesel generator powered by a proven SDEC engine, this model offers excellent performance and value.

Contact Hosem Power today to get a competitive quotation and professional technical support.


Click here to explore more SDEC-powered diesel generator sets and find the right solution for your project.
