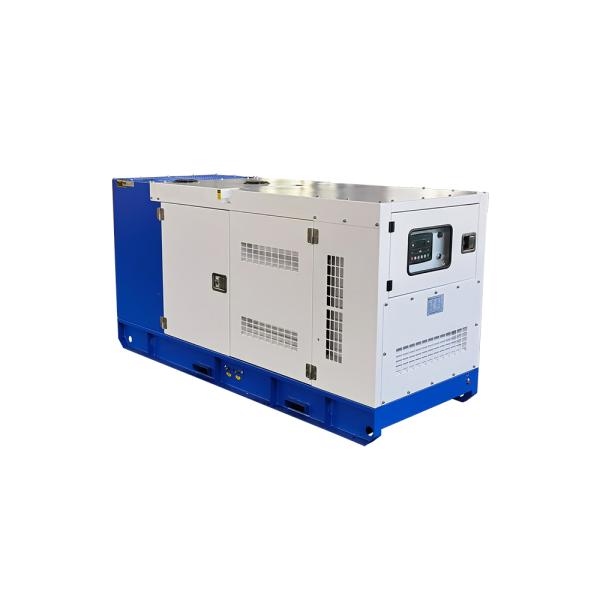

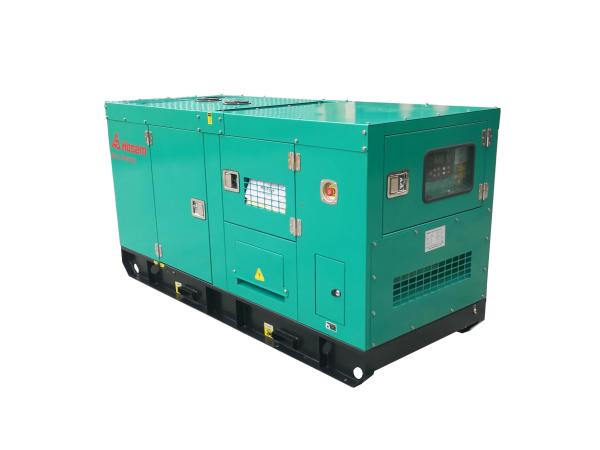

50kW Diesel Generator Powered by SDEC SC4H95D2
50kW Diesel Generator Powered by SDEC SC4H95D2
50kW Diesel Generator Powered by SDEC SC4H95D2
50kW Diesel Generator Powered by SDEC SC4H95D2
50kW Diesel Generator Powered by SDEC SC4H95D2
50kW Diesel Generator Powered by SDEC SC4H95D2
Specifications
Brand Name :
Hosem
Model Number :
A-SH69S
Certification :
CE/ ISO
Place of Origin :
China
MOQ :
1 SET
Payment Terms :
L/C, T/T
Supply Ability :
1000 Set / Months
Delivery Time :
30 days
Packaging Details :
Plastic films or ply-wood
Model :
A-SH69S
Continuous Output :
63kVA
Standby Power :
69kVA
Diesel Engine Power :
68kW at 1500RPM
Governor :
Electric Governor
Engine Type :
4-stroke, water-cooled
Cooling Method :
Water Cooling
Phase :
Three Phase
Fuel Consusmption :
15L/H
Rated Current :
90.2A
Options :
ATS/Trailer
Diesel Engine :
SDEC Brand Model 4HT4.3-G22
Standard :
ISO 8528/5 (2005)
Cooling System :
Air/Water
Description

50kW Diesel Generator Powered by SDEC | SC4H95D2

Description

  • Premium Engine Performance: The 50kW Diesel Generator is powered by the high-performance SDEC SC4H95D2 diesel engine—featuring a 4-cylinder, 4.3 L displacement, and water-cooled design. It delivers a reliable 50 kW (63 kVA) prime power output and up to 55 kW (69 kVA) standby power for critical applications.
  • Reliable & Efficient Operation: With low fuel consumption and stable operation at 1500 rpm, the 50kW Diesel Generator ensures consistent power supply during both continuous and peak-load conditions.
  • Flexible Optional Configurations: Available upgrades include an ATS for seamless power transfer, remote control system for easy operation, and virtual load cabinet for simplified testing. Add stainless galvanized zinc plates for corrosion resistance or a water jacket preheater, oil heater, and double air cleaner to keep the 50kW Diesel Generator performing reliably even in harsh conditions.
  • International Quality & Certifications: Manufactured to meet ISO 8528/5 (2005) standards, the generator comes with global warranty support and comprehensive after-sales service.

Specification of 69kVA SDEC Diesel Generator Set

Generator Set Specification
Model A-SH69
Max. Power kVA 69.0
kW 55.0
Rate Power kVA 63.0
kW 50.0
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 90.2
Dimension For Open-type Genset mm 1950 X 900 X 1350
Weight For Open-type Genset kg 970
Dimension For Soundproof Genset mm 2500 X 1050 X 1350
Weight For Soundproof Generator kg 1470
Noise Level at 7 Meters dBA 72
Fuel Tank Capacity Litres 120
Battery Two of 80A Free Maintenance Battery

Engine Specification
Engine Manufacturer Shanghai Diesel Engine Co., Ltd.
Engine Brand SDEC
Engine Model 4HT4.3-G22
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged
Governor Electric
Engine Max. Output Power kW 68
Displacement L 4.300
Starting Voltage V 24
Bore mm 105
Stroke mm 124
Lubrication Oil Capacity L 15
Compression Ratio 17.3 : 1
Intake Air Flow M3/Min 5
Fuel Consumption at 100% Load L/H 15.0

Alternator Specification
Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
Alternator Model ASF224FS
Alternator Brand Hosem
Rate Output kVA 62
Frequency Hz 50Hz
Current A 89.5
Insulation Class H
Voltage Regulation SX460
Protection Grade IP23
Working Temperature without Output Decrease ≤1000m
Phase 3 Phase
Temperature Rise 125 Degree Celsius
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Specification
Controller Brand Deepsea
Controller Model DSE7320
Breaker Brand Delixi
Breaker Capacity A 100
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with AMF Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

50kW Diesel Generator Powered by SDEC SC4H95D2

Why Choose SDEC Diesel Generator?

1.Advanced Noise Reduction:
Equipped with specialized air silencing channels for both air intake and exhaust, effectively reducing noise levels.

2.Good Vibration Control:

Integrates advanced vibration damping technology to minimize operational vibration and noise.

Reduces wear and tear, enhancing the generator’s durability and lifespan.

3.Reliable Emergency Power:
Provides quick and dependable backup power during utility outages or temporary blackouts, ensuring uninterrupted operation of critical systems and preventing potential business losses.

4.Optimized for Quiet Environments:
Perfect for locations where low noise is essential, such as libraries, hospitals, and high-end conference facilities, improving comfort and maintaining a peaceful environment.

5.Consistent Power for Critical Applications:
Specifically designed for sectors that require continuous power supply, including data centers, healthcare institutions, and critical manufacturing processes, ensuring smooth operations with minimal risk of downtime.
