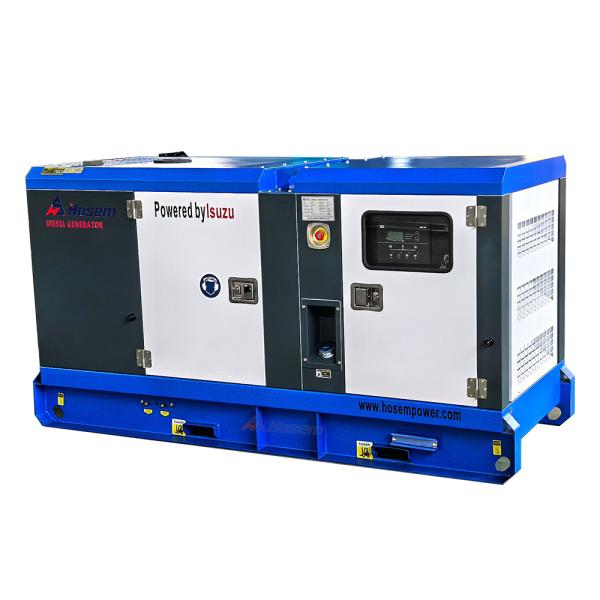

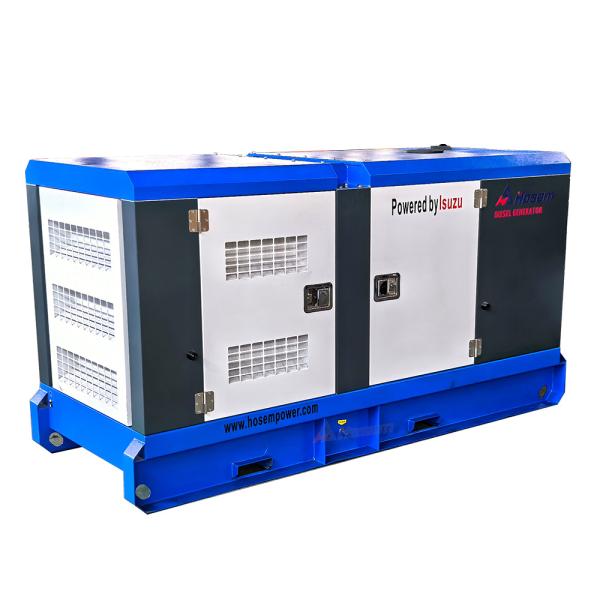

4-cylinder diesel generator| 48kVA Soundproof by Isuzu diesel engine
4-cylinder diesel generator| 48kVA Soundproof by Isuzu diesel engine
4-cylinder diesel generator| 48kVA Soundproof by Isuzu diesel engine
4-cylinder diesel generator| 48kVA Soundproof by Isuzu diesel engine
Specifications
Brand Name :
Hosem Power
Model Number :
A-I52HS
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
500 unit per month
Delivery Time :
30 days
Packaging Details :
Ply-wood or plastic film
Standby Power :
52kVA 42kW
Prime Power :
48kVA 38kW
Rated Speed :
1800rpm
Rated Voltage :
220/127V
Engine Brand :
Isuze
Engine Model :
JE493ZLDB-01
Power Factor :
0.8 Lagging
Rated Current :
126A
Cooling System :
Water Cooled
Exciation System :
Self Excitation
Description

Reliable 4 cylinder diesel generator with quiet soundproof diesel generator design. High-performance Isuzu genset ensures efficient power anytime.

Product Description

Generator Set Specification
Model A-I52HS
Max. Power kVA 52
kW 41.6
Rate Power kVA 48
kW 38.4
Frequency Hz 60
Rate Voltage V 220/127
Rate Current A 126.0
Dimension For Open-type Genset mm 1550 X 680 X 1000
Weight For Open-type Genset kg 520
Dimension For Soundproof Genset mm 2300 X 960 X 1200
Weight For Soundproof Generator kg 1000

Engine Specification
Engine Manufacturer Isuzu Engine Co., Ltd.
Engine Brand Isuzu
Engine Model JE493ZLDB-01
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged
Governor Mechanical
Engine Max. Output Power kW 51
Displacement L 2.8
Starting Voltage V 12
Bore mm 93
Stroke mm 102
Lubrication Oil Capacity L 5.6

4-cylinder diesel generator| 48kVA Soundproof by Isuzu diesel engine

Alternator Specification
Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
Alternator Model ASF184J
Alternator Brand Hosem
Rate Output kVA 52
Frequency Hz 60Hz
Altitude M ≤1000
Insulation Class H
Voltage Regulation AVR Model SX460
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Specification
Controller Brand Smartgen
Controller Model HGM 6120N
Breaker Brand Delixi
Breaker Capacity 160A
Battery Charger Supply
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

4-cylinder diesel generator| 48kVA Soundproof by Isuzu diesel engine

Product Features

1. Reliable Isuzu genset – Genuine Isuzu engine for stable and long-lasting power.

2. Efficient Isuzu diesel generator – Optimized for fuel savings and consistent 60Hz output.

3. Quiet soundproof diesel generator – Advanced enclosure minimizes noise for urban and residential use.

4. Powerful 4 cylinder diesel generator – Prime power output suitable for industrial and commercial needs.

5. Durable design – Heavy-duty frame with vibration-resistant construction.

6. Easy-to-read control panel – Clear meters and alarms for safe operation.

7. Fuel-saving performance – Efficient engine reduces fuel consumption.

8. Automatic safety features – Overload protection, low-oil shutdown, and temperature alarms.
