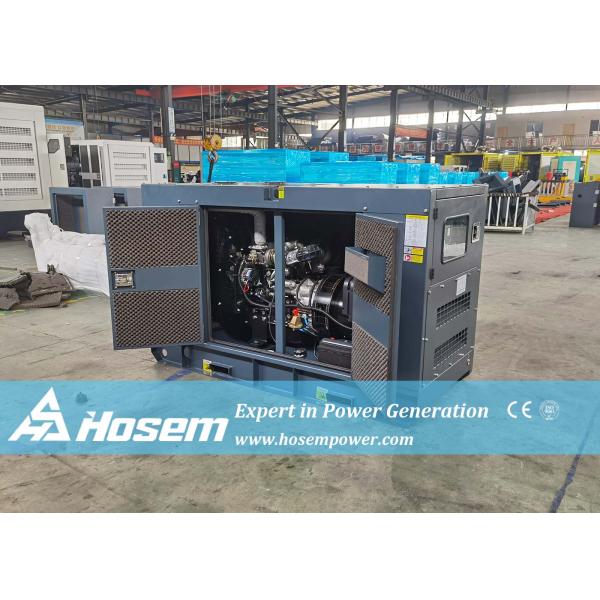

This 50kVA diesel generator is powered by a premium Perkins engine, delivering superior performance with efficient fuel consumption, low operating costs, and quiet operation.
In addition, the 50kVA Perkins generator is backed by global after-sales support, easy access to spare parts, and reliable service worldwide. It is the perfect power solution for both prime (continuous) and standby (backup) applications.
Specification of 50kVA Perkins Diesel Generator Set
Generator Set Specification | ||
Model | A-P50 | |
Max. Power | kVA | 50 |
kW | 39.6 | |
Rate Power | kVA | 45 |
kW | 36 | |
Frequency | Hz | 50 |
Rate Voltage | V | 400/230 |
Rate Current | A | 65.0 |
Fuel Tank Capacity | L | 60 |
Dimension For Open-type Genset | mm | 1560 X 750 X 1200 |
Weight For Open-type Genset | kg | 870 |
Dimension For Soundproof Genset | mm | 2150 X 900 X 1150 |
Weight For Soundproof Generator | kg | 1226 |
Noise Level for Soundproof Generator at 7M | dBA | 72 |
Battery for Starting | Two of Free Maintenance Battery |
Engine Specification | ||
Engine Manufacturer | Perkins Engines Company Limited | |
Engine Brand | Perkins | |
Engine Model | 1103A-33TG1 | |
No. of Cylinder | 3 Cylinder in line | |
Aspiration | Turbocharged | |
Governor | Electric | |
Engine Max. Output Power | kW | 46.5 |
Displacement | L | 3.3 |
Compression Ratio | 17.25 : 1 | |
Starting Voltage | V | 12 |
Bore | mm | 105 |
Stroke | mm | 127 |
Lubrication Oil Capacity | L | 7.8 |
Intake Air Flow | M3/Min | 2.9 |
Fuel Consumption at 100% Load | L/H | 10.7 |
Alternator Specification | ||
Alternator Manufacturer | Cummins Generator Technologies | |
Alternator Model | UCI 224 D | |
Alternator Brand | Stamford | |
Rate Output | kVA | 50 |
Frequency | Hz | 50Hz |
Altitude | M | ≤1000 |
Insulation | Class H | |
Phase | 3 Phase | |
Working Temperature without power decrease | ≤40℃ | |
Working Altitude without power decrease | ≤1000m | |
Automatic Voltage Regulation | SX460 | |
Protection Grade | IP23 | |
Alternator for optional | Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional | |
Control Panel Specification | ||
Controller Brand | Deepsea | |
Controller Model | DSE7320 | |
Breaker Brand | Delixi | |
Breaker Capacity (A) | 80 | |
Battery Charger | Smartgen Model BAC06A | |
Emergency Stop Button | Supply | |
Automatic Mains Fail (AMF) | Supply | |
Fuel Level | Supply | |
Automatic Transfer Switch | ATS as optional part | |
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm). | ||
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller. |
Our generators are engineered for durability, reliability, and superior performance. Each unit is built with premium components and includes the following standard features:
Enclosure & Construction:
Performance & Protection:
Contact us today to learn more and get a quote for a generator that meets your exact needs.
FQA
Q: Is the 50kVA diesel generator suitable for home use?
A: Yes, the 50kVA diesel generator can be used for large homes, villas, or residential complexes that require a reliable backup power source. With its silent canopy design and noise level of just 72dBA at 7 meters, it is suitable for residential environments. Moreover, it's equipped with robust Perkins engine 1103A-33TG1, making it an ideal choice for small businesses, offices, or industrial applications.
If you are considering a generator for your home, be sure to check out this helpful article: Diesel Generators for Home – Buying Guide.
