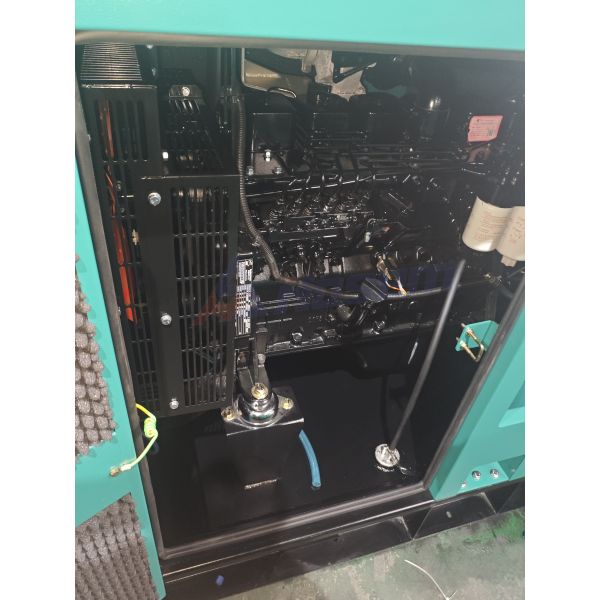

135kVA 150kVA Perkins 3 Phase Diesel Generator With 1106A-70TG1 Engine
135kVA 150kVA Perkins 3 Phase Diesel Generator With 1106A-70TG1 Engine
135kVA 150kVA Perkins 3 Phase Diesel Generator With 1106A-70TG1 Engine
135kVA 150kVA Perkins 3 Phase Diesel Generator With 1106A-70TG1 Engine
135kVA 150kVA Perkins 3 Phase Diesel Generator With 1106A-70TG1 Engine
135kVA 150kVA Perkins 3 Phase Diesel Generator With 1106A-70TG1 Engine
Specifications
Brand Name :
Hosem
Model Number :
A-P150S
Certification :
CE
Place of Origin :
Fuzhou, CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
500 unit per month
Delivery Time :
30 days
Packaging Details :
Wooden Package or Plastic Foam Package
Prime Power :
135kVA
Standby Power :
150kVA
Controller :
Smartgen HGM6120
Breaker Capacity (A) :
250A
Alternator Model :
ASF 274E
Frequency :
50Hz
Phase :
3 Phase
Engine Model :
1106A-70TG1
Rate Current :
194.9A
Governor :
Electric
Description

135kVA 150kVA Perkins 3 Phase Diesel Generator With 1106A-70TG1 Engine

Our 135kVA 150kVA Perkins diesel generator is a reliable 3 phase power solution powered by the proven 1106A-70TG1 engine. Featuring a Hosem ASF274E phase alternator and Smartgen HGM6120 control panel, the generator ensures stable voltage, complete protection, and easy monitoring. Optional upgrades include Deepsea, Smartgen, ComAp controllers, ATS, and alternative alternator brands, including Stamford and Leroy Somer. Designed to operate under ambient temperatures ≤40°C and altitudes ≤1000m, it is dependable even in demanding conditions.

Specification

Generator Set Specification
Model A-P150S
Max. Power kVA 150
kW 120
Rate Power kVA 135
kW 108
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 194.9
Fuel Tank Capacity L 250
Dimension For Open-type Genset mm 2450 X 800 X 1400
Weight For Open-type Genset kg 1390
Dimension For Soundproof Genset mm 3200X 1080 X 1600
Weight For Soundproof Generator kg 1850
Noise Level for Soundproof Generator at 7M dBA 75
Battery for Starting Two of Free Maintenance Battery

Datasheet​--Engine

Engine Specification
Engine Manufacturer Perkins Engines Company Limited
Engine Brand Perkins
Engine Model 1106A-70TG1
No. of Cylinder 6 Cylinder in line
Aspiration Turbocharged
Governor Electric
Engine Max. Output Power kW 136.9
Displacement L 7.0
Compression Ratio 18.2 : 1
Starting Voltage V 12
Bore mm 105
Stroke mm 135
Lubrication Oil Capacity L 16.5
Intake Air Flow M3/Min 9.4
Fuel Consumption at 100% Load L/H 30.2

Datasheet​--Alternator

Alternator Specification
Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
Alternator Model ASF274E
Alternator Brand Hosem
Rate Output kVA 140
Frequency Hz 50Hz
Altitude M ≤1000
Insulation Class H
Phase 3 Phase
Working Temperature without power decrease ≤40℃
Working Altitude without power decrease ≤1000m
Automatic Voltage Regulation SX460
Protection Grade IP23
Alternator for optional Leroy Somer, Stamford and Hosem Brushless alternator for optional
Datasheet​--Controller
Control Panel Specification
Controller Brand Smartgen
Controller Model HGM6120
Breaker Brand Delixi
Breaker Capacity (A) 250
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.
135kVA 150kVA Perkins 3 Phase Diesel Generator With 1106A-70TG1 Engine

FAQ:

Q1: Is the frequency of the 150kVA Perkins diesel generator 50Hz or 60Hz?

A: We can provide both 50Hz and 60Hz diesel generator sets, and we will be configured according to customer’s country.

Q2: What brands can you provide?

A: In addition to Perkins, we can also provide Doosan, Deutz, SDEC, Weichai and other well-known diesel engine brands.

Q3: What is your MOQ of this 150kVA diesel generator?

A: 1 Unit.

Q4:What is the lead time?

A: 30-35 workings days.
