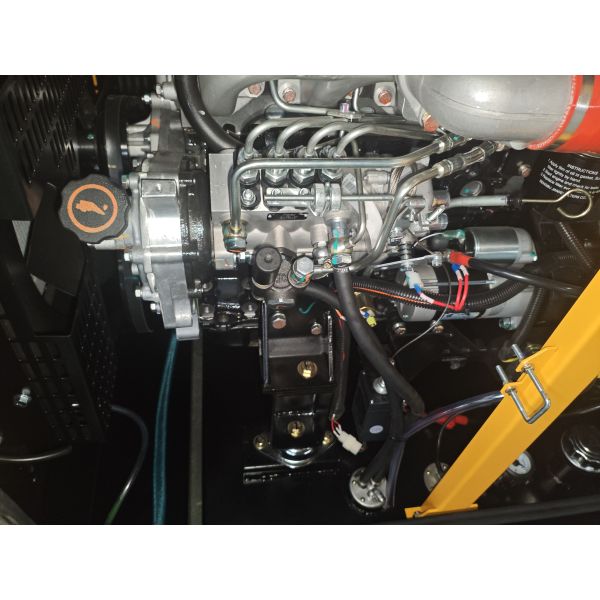

30kVA 33kVA Isuzu Silent Diesel Generator Powered by JE493ZDB-04 Engine
30kVA 33kVA Isuzu Silent Diesel Generator Powered by JE493ZDB-04 Engine
30kVA 33kVA Isuzu Silent Diesel Generator Powered by JE493ZDB-04 Engine
30kVA 33kVA Isuzu Silent Diesel Generator Powered by JE493ZDB-04 Engine
30kVA 33kVA Isuzu Silent Diesel Generator Powered by JE493ZDB-04 Engine
30kVA 33kVA Isuzu Silent Diesel Generator Powered by JE493ZDB-04 Engine
Specifications
Brand Name :
Hosem
Model Number :
A-I33S
Certification :
CE
Place of Origin :
Fuzhou, CHINA
MOQ :
1 SET
Price :
$3500-$4300
Payment Terms :
T/T, L/C
Supply Ability :
500 unit per month
Delivery Time :
30 days
Packaging Details :
Wooden Package or Plastic Foam Package
Prime Power :
24kW
Standby Power :
26kW
Phase :
3 Phase
Frequency :
50/60Hz
Rate Voltage :
400/230
Engine Model :
JE493ZDB-04
Alternator Model :
ASF 184GS
Protection Grade :
IP23
Insulation :
Class H
Breaker Brand :
Delixi
Description

30kVA 33kVA Isuzu Silent Diesel Generator Powered by JE493ZDB-04 Engine

The 30kVA 33kVA Isuzu silent diesel generator is powered by the reliable JE493ZDB-04 engine, delivering stable performance, low fuel consumption, and long service life. This generator set is well suited for small workshops, commercial facilities, and residential backup power applications, where dependable and economical power supply is required.

It can support household essentials such as lighting, air conditioners, refrigerators, water pumps, as well as small machinery and ventilation equipment. The compact design ensures easy installation and convenient maintenance for long-term use.With proven Isuzu engine technology, this genset ensures dependable operation even under demanding working conditions.

Specification

Generator Set Specification
Model A-I33S
Max. Power kVA 33
kW 26.4
Rate Power kVA 30
kW 24
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 43.3
Fuel Tank Capacity L 60
Dimension For Open-type Genset mm 1560 X 680 X 1350
Weight For Open-type Genset kg 630
Dimension For Soundproof Genset mm 2050 X 860 X 1100
Weight For Soundproof Generator kg 960
Noise Level for Soundproof Generator at 7M dBA 70
Battery One of Free Maintenance Battery

Datasheet​--Engine

Engine Specification
Engine Manufacturer Isuzu Engine Co., Ltd.
Engine Brand Isuzu
Engine Model JE493ZDB-04
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged
Governor Mechanical
Engine Max. Output Power kW 31
Displacement L 2.8
Compression Ratio 18.2 : 1
Starting Voltage V 12
Bore mm 93
Stroke mm 102
Lubrication Oil Capacity L 5.6
Intake Air Flow M3/Min 18.2
Fuel Consumption at 100% Load L/H 8.254216867

Datasheet​--Alternator

Alternator Specification
Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
Alternator Model ASF184GS
Alternator Brand Hosem
Rate Output kVA 32
Frequency Hz 50Hz
Altitude M ≤1000
Insulation Class H
Phase 3 Phase
Working Temperature without power decrease ≤40℃
Working Altitude without power decrease ≤1000m
Automatic Voltage Regulation SX460
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Datasheet​--Controller

Control Panel Specification
Controller Brand Smartgen
Controller Model HGM6120N
Breaker Brand Delixi
Breaker Capacity (A) 100
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.
30kVA 33kVA Isuzu Silent Diesel Generator Powered by JE493ZDB-04 Engine

FAQ:

Q1: What is the price?

A: The price of our diesel generator is based on several factors, including the brand, power capacity, order quantity, payment terms(such as FOB, EXW, CIF) and the customer’s specific requirements etc. For an accurate quotation, please feel free contact me for quotation.

Q2: How long does it take to deliver this diesel generator set?

A: The delivery time for diesel generators is usually around 30 days.

Q3:What is the packaging of diesel generator?

A: The packaged in a wooden package or plastic foam package.

Q4: Where is the 30kVA Isuzu Generator Set from?
A: The Isuzu Diesel Generator Set is made in China.
