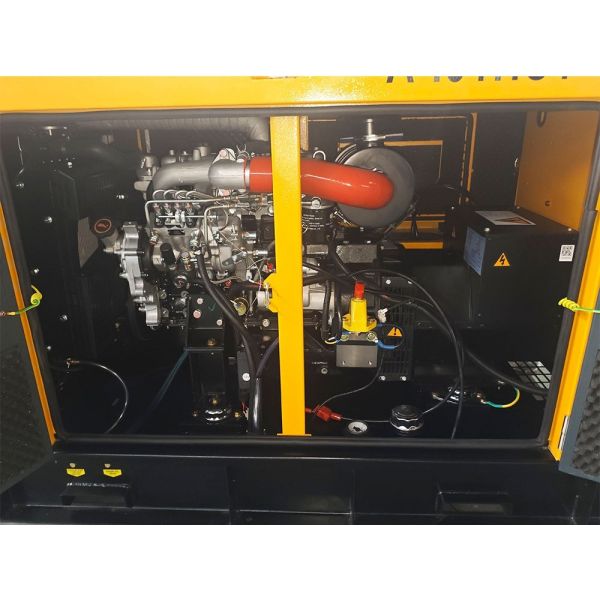

The 25kVA Soundproof Isuzu Diesel Generator JE493DB-03 is a compact and reliable Isuzu diesel generator designed for prime and continuous power applications. Powered by a proven Isuzu diesel engine, it delivers a stable 60Hz output with low fuel consumption. The fully enclosed soundproof diesel generator design ensures quiet operation, making it suitable for commercial and residential use.

| Generator Set Specification | ||
| Model | A-I28HS | |
| Max. Power | kVA | 28 |
| kW | 22.4 | |
| Rate Power | kVA | 25 |
| kW | 20 | |
| Frequency | Hz | 60 |
| Rate Voltage | V | 220/127 |
| Rate Current | A | 65.6 |
| Dimension For Open-type Genset | mm | 1350 X 650 X 1000 |
| Weight For Open-type Genset | kg | 450 |
| Dimension For Soundproof Genset | mm | 2050 X 860 X 1100 |
| Weight For Soundproof Generator | kg | 890 |
1. Powered by an Isuzu diesel engine JE493DB-03, the generator delivers stable performance and low fuel consumption.
2. The soundproof diesel generator canopy effectively reduces operating noise, making it suitable for residential, commercial, and urban environments.
3. Design with hanging holes, forklift holes, and reinforced dragging for easy handling. Allow easy installation and transportation on site.
4. User-friendly control panel provides clear monitoring, alarms, and automatic protection for safe operation.
| Engine Specification | ||
| Engine Manufacturer | Isuzu Engine Co., Ltd. | |
| Engine Brand | Isuzu | |
| Engine Model | JE493DB-03 | |
| No. of Cylinder | 4 Cylinder in line | |
| Aspiration | Naturally Aspirated | |
| Governor | Mechanical | |
| Engine Max. Output Power | kW | 28 |
| Displacement | L | 2.8 |
| Starting Voltage | V | 12 |
| Bore | mm | 93 |
| Stroke | mm | 102 |
| Lubrication Oil Capacity | L | 5.6 |
1. Brushless self-excited, single bearing, 4 poles
2. Class H insulation
3. IP23 protection standard
4. Self-exciting and self-regulating
5. Automatic voltage regulator (AVR)
Q1: Is this 25kVA diesel generator suitable for continuous operation?
A: Yes. The generator is designed for prime and continuous power applications, delivering stable 60Hz output under varying load conditions.
Q2: How noisy is the soundproof diesel generator during operation?
A: The soundproof diesel generator is equipped with an acoustic enclosure that significantly reduces operating noise, making it suitable for residential and commercial environments.
Q3: Does the generator include safety protection features?
A: Yes. The generator is equipped with protections such as overload, low oil pressure, high coolant temperature, and automatic shutdown for safe operation.
