38kVA 41kVA Isuzu Compact Soundproof Diesel Generator Set For Home Backup Power
38kVA 41kVA Isuzu Compact Soundproof Diesel Generator Set For Home Backup Power
38kVA 41kVA Isuzu Compact Soundproof Diesel Generator Set For Home Backup Power
38kVA 41kVA Isuzu Compact Soundproof Diesel Generator Set For Home Backup Power
38kVA 41kVA Isuzu Compact Soundproof Diesel Generator Set For Home Backup Power
38kVA 41kVA Isuzu Compact Soundproof Diesel Generator Set For Home Backup Power
Specifications
Brand Name :
Hosem
Model Number :
A-I41S
Certification :
CE, ISO9001, ISO14001, ISO45001
Place of Origin :
Fuzhou, CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
400 unit per month
Delivery Time :
30 days
Packaging Details :
Wooden Package or Plastic Foam Package
Prime Power :
38kVA
Standby Power :
41kVA
Engine Model :
JE493ZLDB-02
Frequency :
50Hz
No. of Cylinder :
4 Cylinder in line
Governor :
Mechanical
Phase :
3 Phase
Protection Grade :
IP23
Automatic Voltage Regulation :
SX460
Breaker Brand :
Delixi
Description

38kVA 41kVA Isuzu Compact Soundproof Diesel Generator Set For Home Backup Power

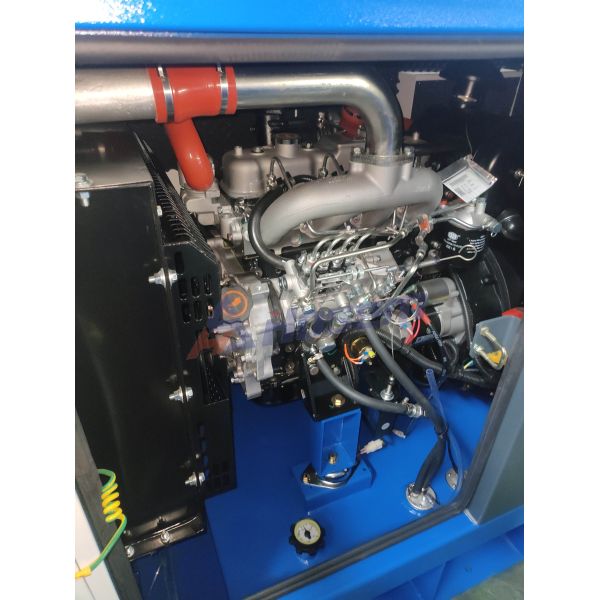

The 38kVA / 41kVA ISUZU Compact Soundproof Diesel Generator Set is powered by the reliable JE493ZLDB-02 diesel engine, provides stable and efficient backup power for homes during power outages or grid instability. Featuring a mechanical governor and a 4-cylinder in-line configuration, ensuring stable speed control, reliable performance, and easy maintenance.

Key Features:

1.Its direct injection combustion chamber ensures efficient fuel use, easy starting, and stable performance, making it a cost-effective solution for home backup power and light commercial applications.

2.Easy to install and Inyout,light weight and compect structure.

3.Delivers powerful performance with low vibration and stable speed control.
4.The power interface conforms to SAE standards, ensuring good market interchangeability and versatility.
Specification
Generator Set Specification
Model A-I41S
Max. Power kVA 41
kW 32.8
Rate Power kVA 38
kW 30.4
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 54.8
Fuel Tank Capacity L 90
Dimension For Open-type Genset mm 1560 X 680 X 1350
Weight For Open-type Genset kg 630
Dimension For Soundproof Genset mm 2300 X 960 X 1200
Weight For Soundproof Generator kg 1050
Noise Level for Soundproof Generator at 7M dBA 70
Battery One of Free Maintenance Battery
Datasheet​--Alternator
Engine Specification
Engine Manufacturer Isuzu Engine Co., Ltd.
Engine Brand Isuzu
Engine Model JE493ZLDB-02
No. of Cylinder 4 Cylinder in line
Aspiration Turbocharged, Aftercooled
Governor Mechanical
Engine Max. Output Power kW 42
Displacement L 2.8
Compression Ratio 18.2 : 1
Starting Voltage V 12
Bore mm 93
Stroke mm 102
Lubrication Oil Capacity L 5.6
Intake Air Flow M3/Min 18.2
Fuel Consumption at 100% Load L/H 11.18313253

Datasheet​--Alternator

Alternator Specification
Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
Alternator Model ASF 184 H
Alternator Brand Hosem
Rate Output kVA 40
Frequency Hz 50Hz
Altitude M ≤1000
Insulation Class H
Phase 3 Phase
Working Temperature without power decrease ≤40℃
Working Altitude without power decrease ≤1000m
Automatic Voltage Regulation SX460
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Datasheet​--Controller

Control Panel Specification
Controller Brand Smartgen
Controller Model HGM6120N
Breaker Brand Delixi
Breaker Capacity (A) 63
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

38kVA 41kVA Isuzu Compact Soundproof Diesel Generator Set For Home Backup Power

FAQ:


Q1: Where is the 41kVA Isuzu Generator Set from?
A: The Isuzu Diesel Generator Set is made in China.

Q2: How long does it take to deliver this diesel generator set?
A: The delivery time for diesel generators is usually around 30 days.

Q3:What is the packaging of 41kVA isuzu diesel generator?
A: The packaged in plastic foam package.

Q4: What is the power output of the Isuzu Generator Set?
A4: The prime power is 38kva, standby power is 41kva
