150kVA Kofo Economic Silent Diesel Generator Powered By 6RT80-132D Engine
150kVA Kofo Economic Silent Diesel Generator Powered By 6RT80-132D Engine
150kVA Kofo Economic Silent Diesel Generator Powered By 6RT80-132D Engine
150kVA Kofo Economic Silent Diesel Generator Powered By 6RT80-132D Engine
150kVA Kofo Economic Silent Diesel Generator Powered By 6RT80-132D Engine
150kVA Kofo Economic Silent Diesel Generator Powered By 6RT80-132D Engine
Specifications
Brand Name :
Hosem
Model Number :
A-KF165S
Certification :
CE, ISO9001, ISO14001, ISO45001
Place of Origin :
Fuzhou, CHINA
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
400 unit per month
Delivery Time :
30 days
Packaging Details :
Wooden Package or Plastic Foam Package
Prime Power :
150kVA
Standby Power :
165kVA
Rate Voltage :
400/230V
Battery :
Two of Free Maintenance Battery
Frequency :
50Hz
Engine Model :
6RT80-132D
No. of Cylinder :
6 Cylinder in line
Governor :
Mechanical
Alternator Model :
Hosem ASF 274FS
Phase :
3 Phase
Description

150kVA Kofo Economic Silent Diesel Generator Powered By 6RT80-132D Engine

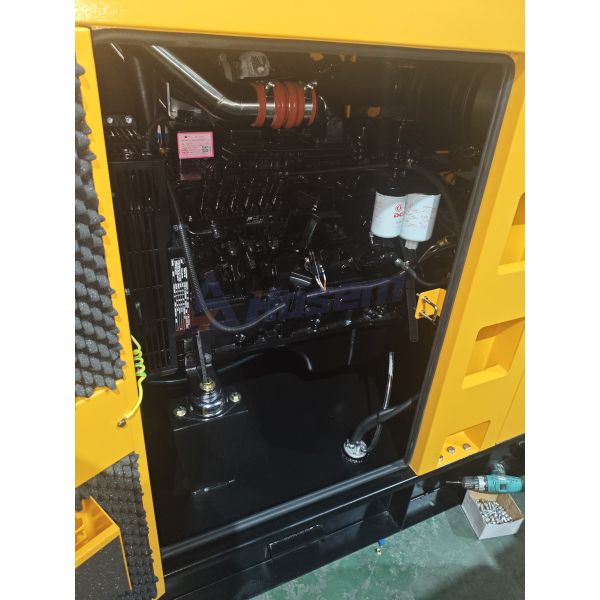

The 150kVA KOFO Economic Silent Diesel Generator, powered by the reliable 6RT80-132D diesel engine, with three-phase output, this generator set is suitable for both standby and prime power use.

The soundproof type is equipped with a 50°C radiator, ensuring reliable operation even in high ambient temperature environments, while the open type is fitted with a 40°C radiator to meet standard operating conditions. The soundproof canopy effectively reduces noise levels, making the generator suitable for residential areas, commercial buildings, construction sites, and other noise-sensitive locations. A lockable battery isolator switch is included as standard, enhancing operational safety and maintenance convenience.

150kVA Kofo diesel generator with its compact structure, durable components, and economical configuration, this economic silent diesel generator offers dependable performance while helping customers effectively control initial investment and operating costs.

Specification

Generator Set Specification
Model A-KF165S
Max. Power kVA 165.0
kW 132.0
Rate Power kVA 150.0
kW 120.0
Frequency Hz 50
Rate Voltage V 400/230
Rate Current A 216.5
Dimension For Open-type Genset mm 2350 X 950 X 1400
Weight For Open-type Genset kg 1150
Dimension For Soundproof Genset mm 3400 X 1130 X 1800
Weight For Soundproof Generator kg 1650
Noise Level at 7 Meters dBA 78
Fuel Tank Capacity Litres 250
Battery Two of Free Maintenance Battery

Datasheet​--Engine

Engine Specification
Engine Manufacturer Kofo
Engine Brand Ricardo
Engine Model 6RT80-132D
No. of Cylinder 6 Cylinder in line
Aspiration Turbocharger and After-cooled
Governor Mechanical
Engine Max. Output Power kW 132
Displacement L 7.010
Starting Voltage V 24
Bore mm 105
Stroke mm 130
Lubrication Oil Capacity L 18
Compression Ratio 16 : 1
Engine Speed RPM 1500
Fuel Consumption at 100% Load L/H 35.8

Datasheet​--Alternator

Alternator Specification
Alternator Manufacturer Fuzhou Hosem Power Co., Ltd.
Alternator Model ASF274FS
Alternator Brand Hosem
Rate Output kVA 150
Frequency Hz 50Hz
Current A 216.5
Insulation Class H
Voltage Regulation SX460
Protection Grade IP23
Working Temperature without Output Decrease ≤1000m
Phase 3 Phase
Temperature Rise 125 Degree Celsius
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Datasheet​--Controller

Control Panel Specification
Controller Brand Smartgen
Controller Model HGM6120N
Breaker Brand Delixi
Breaker Capacity A 250
Battery Charger Smartgen Model BAC06A
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
Fuel Level Supply
Automatic Transfer Switch ATS as optional part
Mains Monitor Supply with AMF Function
The control panel supply the full protection with alarm and shutdown of the diesel generator include Start-up fault (generator set shutdown), High coolant temperature (alarm and generator set shutdown), Low oil pressure (alarm and generator set shutdown), Low fuel level (alarm), Low cooling fluid level alarm (as optional), Overload (alarm and generator set shutdown), Battery voltage high (alarm).
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

150kVA Kofo Economic Silent Diesel Generator Powered By 6RT80-132D Engine

FAQ:

Q1: Is the frequency of the 150kVA Kofo diesel generator 50Hz or 60Hz?

A: We can provide both 50Hz and 60Hz diesel generator sets, and we will be configured according to customer’s country.

Q2: What brands can you provide?

A: In addition to Perkins, we can also provide Doosan, Deutz, SDEC, Weichai and other well-known diesel engine brands.

Q3: What is your MOQ of this 150kVA diesel generator?

A: 1 Unit.

Q4:What is the lead time?

A: 30-35 workings days.
