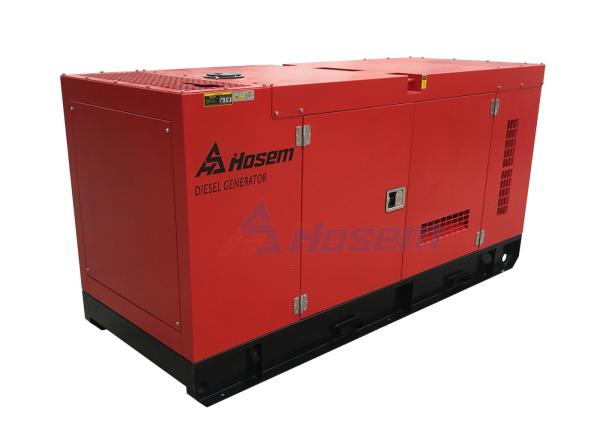

63kva 50kw 60Hz 4BTA3.9-G2 Engine Cummins Generator Set Silent 50kw
63kva 50kw 60Hz 4BTA3.9-G2 Engine Cummins Generator Set Silent 50kw
63kva 50kw 60Hz 4BTA3.9-G2 Engine Cummins Generator Set Silent 50kw
63kva 50kw 60Hz 4BTA3.9-G2 Engine Cummins Generator Set Silent 50kw
Specifications
Brand Name :
Hosem Power
Model Number :
A-C69HS
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
L/C, T/T
Supply Ability :
500 unit per month
Delivery Time :
30 days
Packaging Details :
Ply-wood or plastic film
Product Name :
Cummins Diesel Generator Set
Prime Power :
63kVA 50kW
Standby Power :
69kVA 55kW
Voltage :
220/127V
Frequency :
60Hz
Phase :
3-phase
Cooling System :
Water Cooled
Engine Brand :
Cummins 4BTA3.9-G2
Alternator Brand :
Stamford UCI 224 D
Controller Modul :
Deepsea DSE7320
Description

63kva 50kw silent electric diesel generator set by 60Hz Cummins 4BTA3.9-G2 engine

Generator Set Specification
Model A-C69HS
Max. Power kVA 69
kW 55.2
Rate Power kVA 63
kW 50
Frequency Hz 60
Rate Voltage V 220/127
Rate Current A 164.0
Dimension For Open-type Genset mm 1820 X 750 X 1050
Weight For Open-type Genset kg 2500 X 1050 X 1490
Dimension For Soundproof Genset mm 70
Weight For Soundproof Generator kg 350

Engine Specification
Engine Manufacturer Dongfeng Cummins Engine Co., Ltd.
Engine Brand Cummins
Engine Model 4BTA3.9G2
No. of Cylinder 4 Cylinder in line
Aspiration Turbocarged & Aftercooed
Governor Electric
Engine Max. Output Power kW 66
Displacement L 3.9
Starting Voltage V 24
Bore mm 102
Stroke mm 120
Lubrication Oil Capacity L 11

Alternator Specification
Alternator Manufacturer Cummins Generator Technologies
Alternator Model UCI 224 D
Alternator Brand Stamford
Rate Output kVA 65
Frequency Hz 60Hz
Altitude M ≤1000
Insulation Class H
Voltage Regulation AVR Model SX460
Protection Grade IP23
Alternator for optional Leroy Somer, Marathon, Mecc Alte and Hosem Brushless alternator for optional

Control Panel Specification
Controller Brand Deepsea
Controller Model DSE7320
Breaker Brand Delixi
Breaker Capacity 80A
Battery Charger Supply
Emergency Stop Button Supply
Automatic Mains Fail (AMF) Supply
The control panel supply the full protection with Alarm and Shutdown of the diesel generator include High Temp, Low Oil Pressure, Over / Under Speed, Over Load, Start / Stop Fail, Under / Over Voltage etc.
Optional controller: Each model of Deepsea, Smartgen, ComAp brand controller.

Product Description

Δ Main Features

1. Cooperate with Cummins which is a world brand with a global warranty.
2. Genset design: Open, Supper silent, Soundproof, Trailer and container type.
3. Reliable quality with fewer failures and less maintenance.
4. Integrated design, prevents oil leakage, and greatly reduces the failure rate.
5. Intake preheating, better-starting performance, and faster acceleration.
6. Cooperate with Leroy Somer, Mecc Alte, and Stamford.
7. Optional manual and ATS control panels
8. Optional air filter, fuel filter, and oil filter
9. Comply with CE and ISO standards
10. All generator sets are gone through strict testing before being shipped, including 25% load, 50% load, 75% load, 100% load, and all protection functions (over speed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)

63kva 50kw 60Hz 4BTA3.9-G2 Engine Cummins Generator Set Silent 50kw

63kva 50kw 60Hz 4BTA3.9-G2 Engine Cummins Generator Set Silent 50kw

Δ FAQ

Q1: What is the power range of your diesel generator?
A: We can provide power from 0.7kVA-2000kVA.

Q2: The valid period of the offer?

A: 30 days.

Q3: What is the exact address of your factory?

A: Our company is located in C2 Building, Cangshan Wanda Plaza, No. 216 Pushang Road, Fuzhou City, Fujian, China.

Q4: Which trade term can you accept?

A: Available trade terms: FOB, CIF, CFR, EXW, etc.
