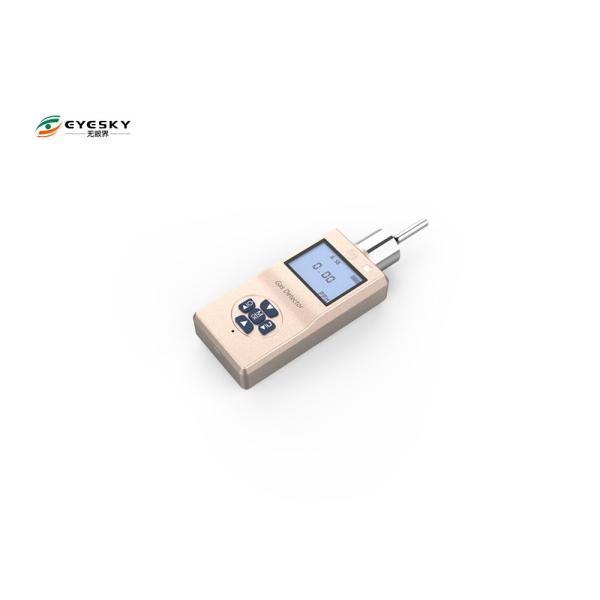

ES20B-VOC Pump-Suction Voc Gas Detector Principle Of PID Detection Volatile Organic Compounds Detector
ES20B-VOC Pump-Suction Voc Gas Detector Principle Of PID Detection Volatile Organic Compounds Detector
ES20B-VOC Pump-Suction Voc Gas Detector Principle Of PID Detection Volatile Organic Compounds Detector
ES20B-VOC Pump-Suction Voc Gas Detector Principle Of PID Detection Volatile Organic Compounds Detector
ES20B-VOC Pump-Suction Voc Gas Detector Principle Of PID Detection Volatile Organic Compounds Detector
ES20B-VOC Pump-Suction Voc Gas Detector Principle Of PID Detection Volatile Organic Compounds Detector
ES20B-VOC Pump-Suction Voc Gas Detector Principle Of PID Detection Volatile Organic Compounds Detector
ES20B-VOC Pump-Suction Voc Gas Detector Principle Of PID Detection Volatile Organic Compounds Detector
Specifications
Brand Name :
EYESKY
Model Number :
ES20B-VOC
Certification :
CE,ROSH,FCC,SIL
Place of Origin :
CHINA
MOQ :
1
Price :
$ 1250
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Delivery Time :
2-3Days
Supply Ability :
1000pcs per year
Packaging Details :
carton packaging
Material :
Aluminum alloy
Color :
silver
Weight :
1200g
Usage :
Safety protection
Description

Production Introduction:

ES20B portable high precision methane detector, is a method of continuous detection of methane gas concentration in the nature of safety equipment, the use of imported non dispersive infrared technology sensor, can accurately and quickly detect the concentration of methane, effectively guarantee the life safety of the staff, intelligent level two alarm function greatly meet the requirements of industrial field safety monitoring equipment. Beautiful and professional portable design for mobile use, the product is widely used in the fields of petroleum, chemical, metallurgy, petrochemical, bio pharmaceutical, environmental protection at home and school laboratory.


Features:


English menu, the simple operation of the five keys, can quickly and accurately set the parameters and calibration data

Large capacity rechargeable lithium battery can be used for long time continuous operation.

Clear digital LCD backlight LCD design, the user can set the level of its own alarm point

Built in super suction pump, easy to be unable to enter the test environment

Sensor using original imported infrared methane sensor

Can control the data and restore factory settings and other functions for the user to solve the trouble caused by the improper operation of the

Unique aluminum alloy shell design, non slip, dust, not easy to wear

Self zero point and target point calibration function

Technical Paremeters:

Item Description
Detecting gas: voc
Working principle: PID
Sampling method: Pump suction/dispersive
Measure range: 0-20,50,100,500,1000,2000,5000ppm(Optional, other range can be customized)
Resolution: 0.01ppm,0.1ppm,1ppm
Accuracy: ±3%FS
Repeatability: <3%
Respond time: T90 ≤30 sec
Alarm method: Sound and light alarm, double color LED lamp, sound or 75 db @ 25 cm
Operation method: Key operation(Life time of keys:2000000 times)
Material of host: Full metal jacket, strong wear resistant corrosion, feel is good
Working temperature: -20℃~+50℃(poisonous gas)
Working humidity: 10%RH ~95%RH,No condensation
Working pressure: 86kPa~106kPa
Battery: Built-in high-performance lithium-ion batteries, import core: nominal voltage 3.7 VDC, 2500 mah
Charger: Travel charger with USB interface, USB power supply DC5V, charging temperature range: 0 ℃ to 40 ℃
Charging time: ≤6 hours, total charged time 12 hours
Continuous working time: ≥12 hours
Dimension: 135x65x35mm(LxWxH)
Weight About 0.46Kg
Protection grade: IP66
Execution standard: GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010
Quality assurance: One year warranty, the warranty period free maintenance, sensitive components such as sensors, according to the standard of sensor manufacturers.
