Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion
Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion
Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion
Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion
Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion
Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion
Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion
Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion
Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion
Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion

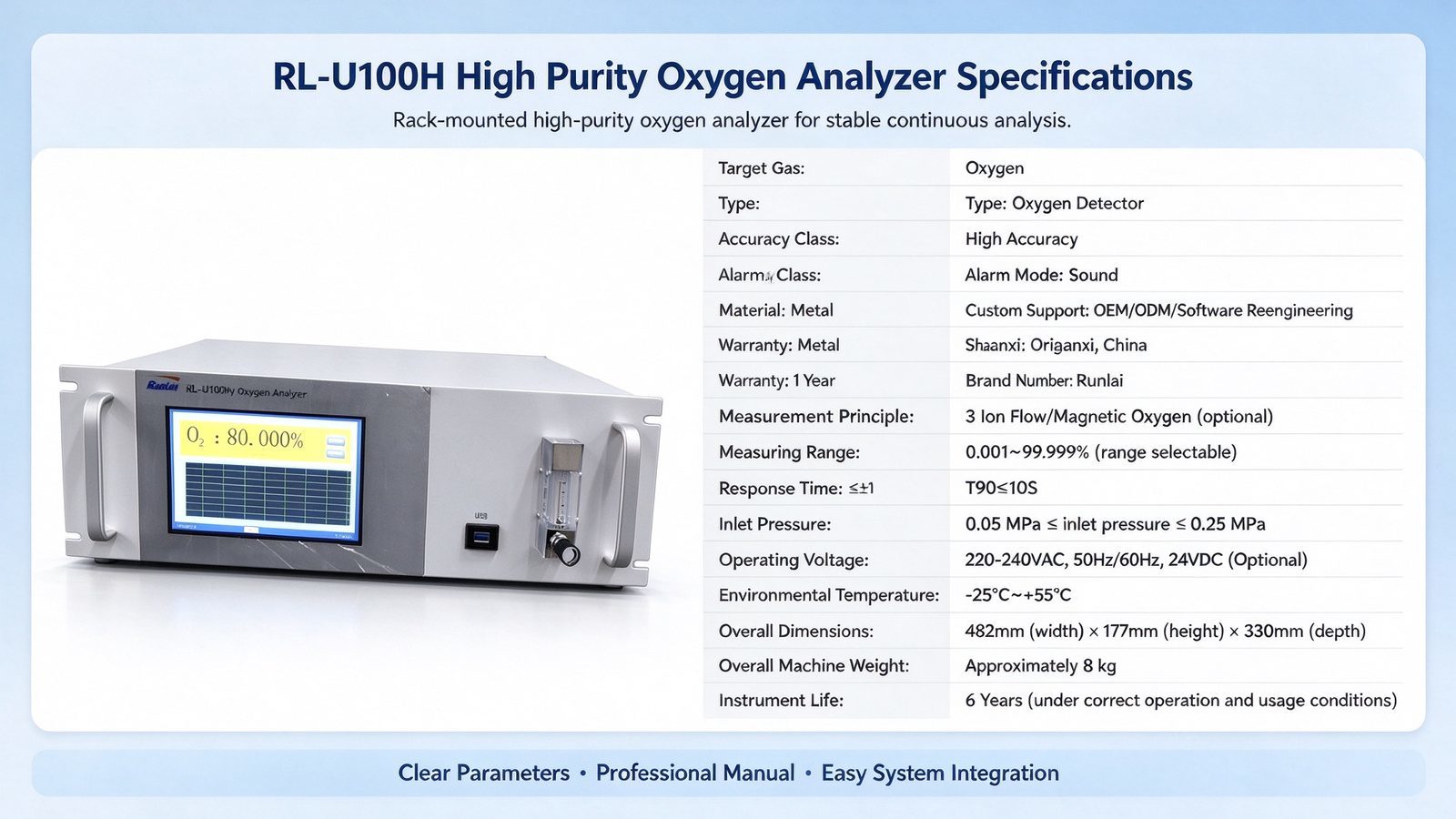

Specifications
Payment Terms :
L/C、D/A、D/P、T/T
type :
Oxygen Detector
material :
Metal
Precision :
≤±1%F.S

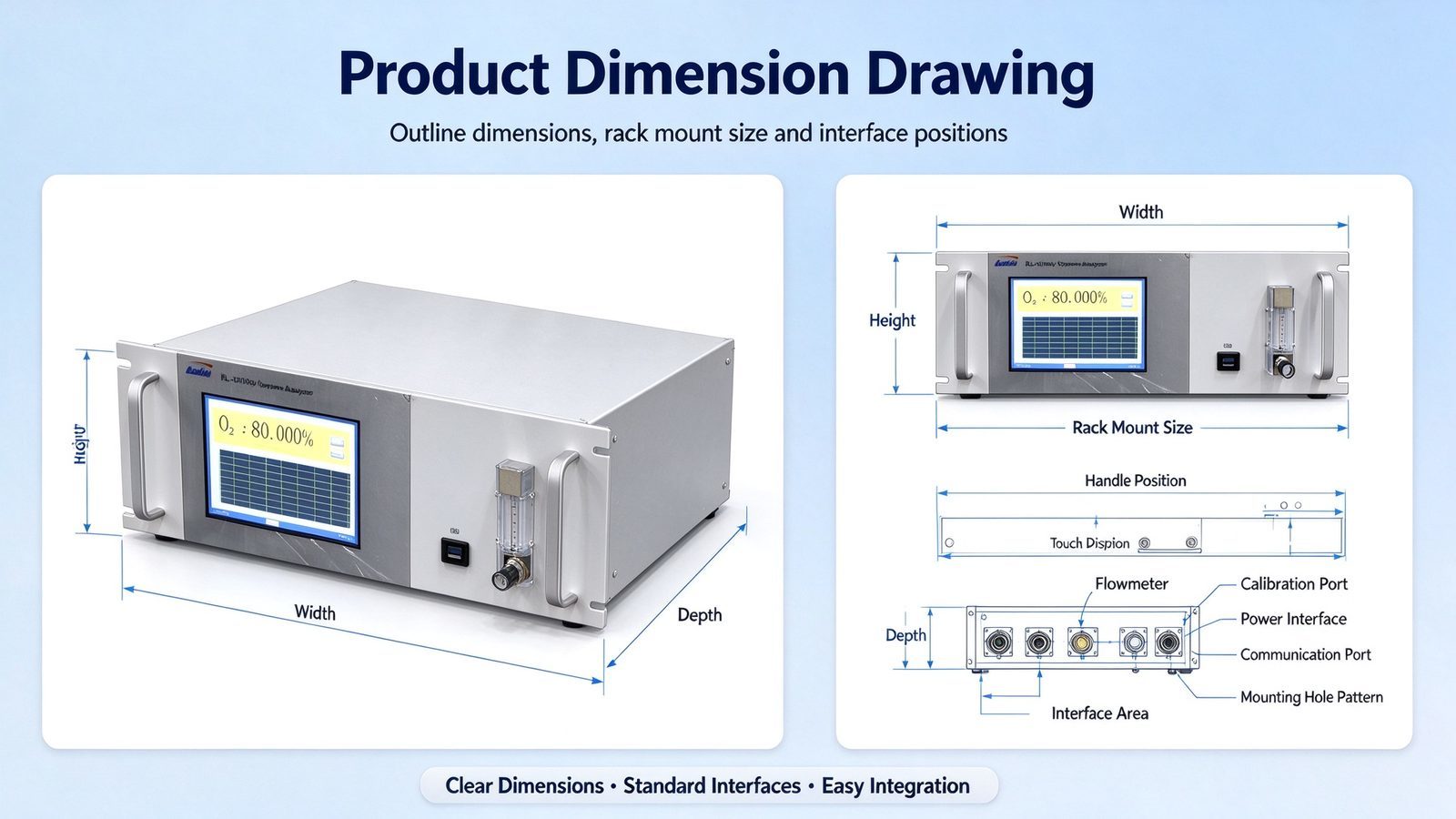

Overall dimensions :
482mm (width) x 136mm (height) x 370mm (depth)
Accuracy Class :
High Accuracy
Response time :
T90≤10S
Measure principle :
3D Ion Flow/Magnetic Oxygen (Optional)
Environmental temperature :
-25°C ~ +55°C
Overall machine weight :
Approximately 8 kg
Delivery Time :
appointed time
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Alarm Mode :
Sound
Brand Name :
Runlai
Packaging Details :
Export Standard
Model Number :
RL-U100H
MOQ :
1
Target Gas :
Oxygen
customized support :
OEM/ODM/OBM/Software Reengineering
Operating voltage (customizable) :
220-240VAC, 50\60Hz, 24VDC (Optional)
Price :
Negotiable
Measuring range :
0.00%~99.99% (range selectable)
Inlet pressure :
0.05 MPa ≤ Inlet pressure ≤ 0.25 MPa
Certification :
ISO certification
Place of Origin :
Xi'an, Shaanxi, China
Description

High Accuracy Metal Oxygen O2 Gas Analyzer Digital LCD Display 0.00%-99.99% Range Fast Response T9010S Meter 3D Ion Runlai U100H

Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D IonProduct Introduction

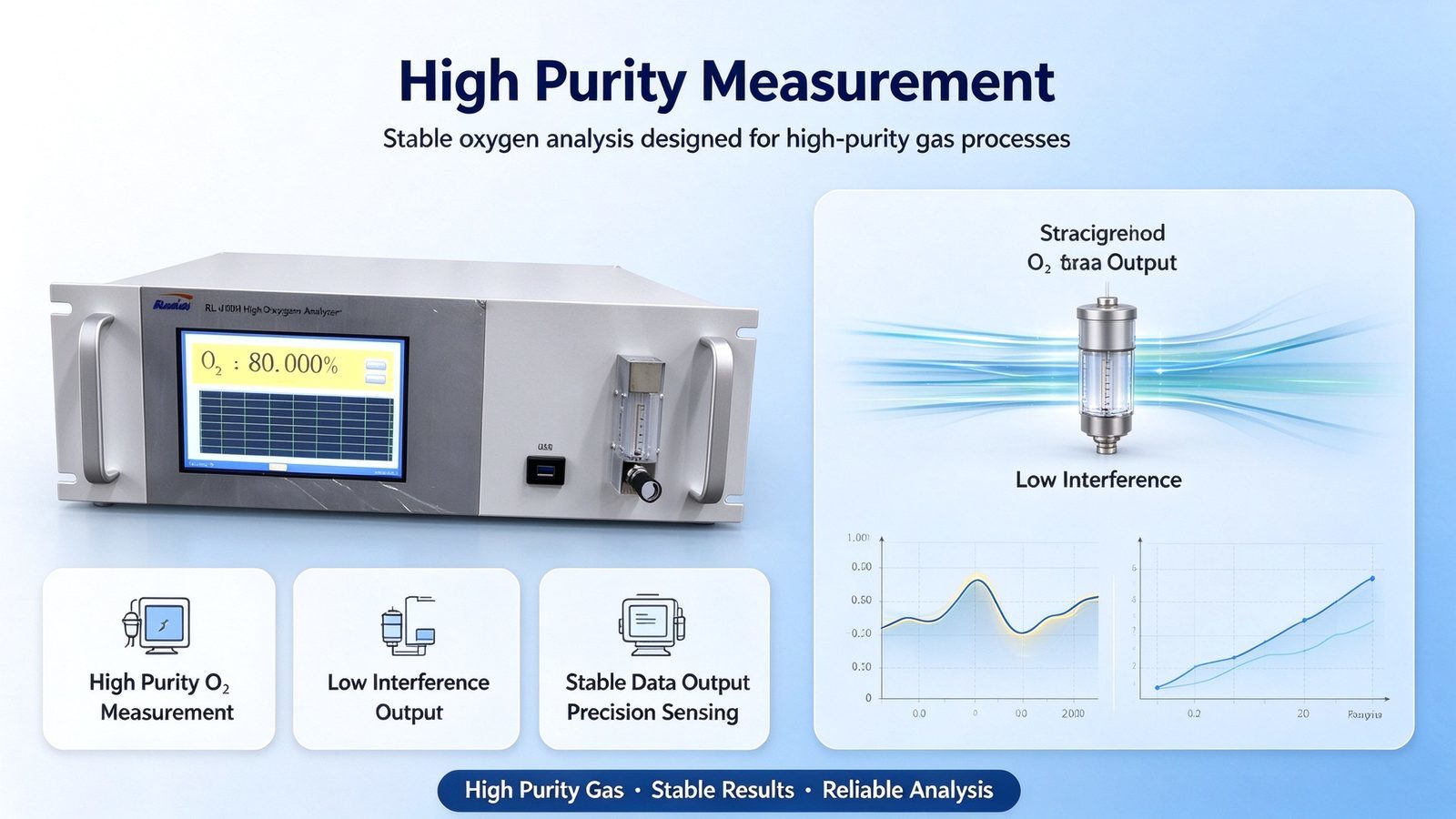

The RL-U100H uses advanced 30-ion flow or magnetic oxygen technology (optional) and is designed specifically for accurate oxygen content analysis in industrial process gases. This instrument features automatic temperature and pressure compensation, supports touchscreen operation, data logging, and remote communication. Optional features include automatic calibration and built-in pump sampling systems. It offers fast response, high stability, and easy maintenance, making it ideal for long-term, stable operation in various industrial environments.

Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion

It is widely used in air separation nitrogen production, chemical processes, protective gases for high-temperature sintering furnaces in magnetic materials, protective gases in the electronics industry, as well as online oxygen content monitoring in industries such as metallurgy, glass, and building materials.Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion

Product Features

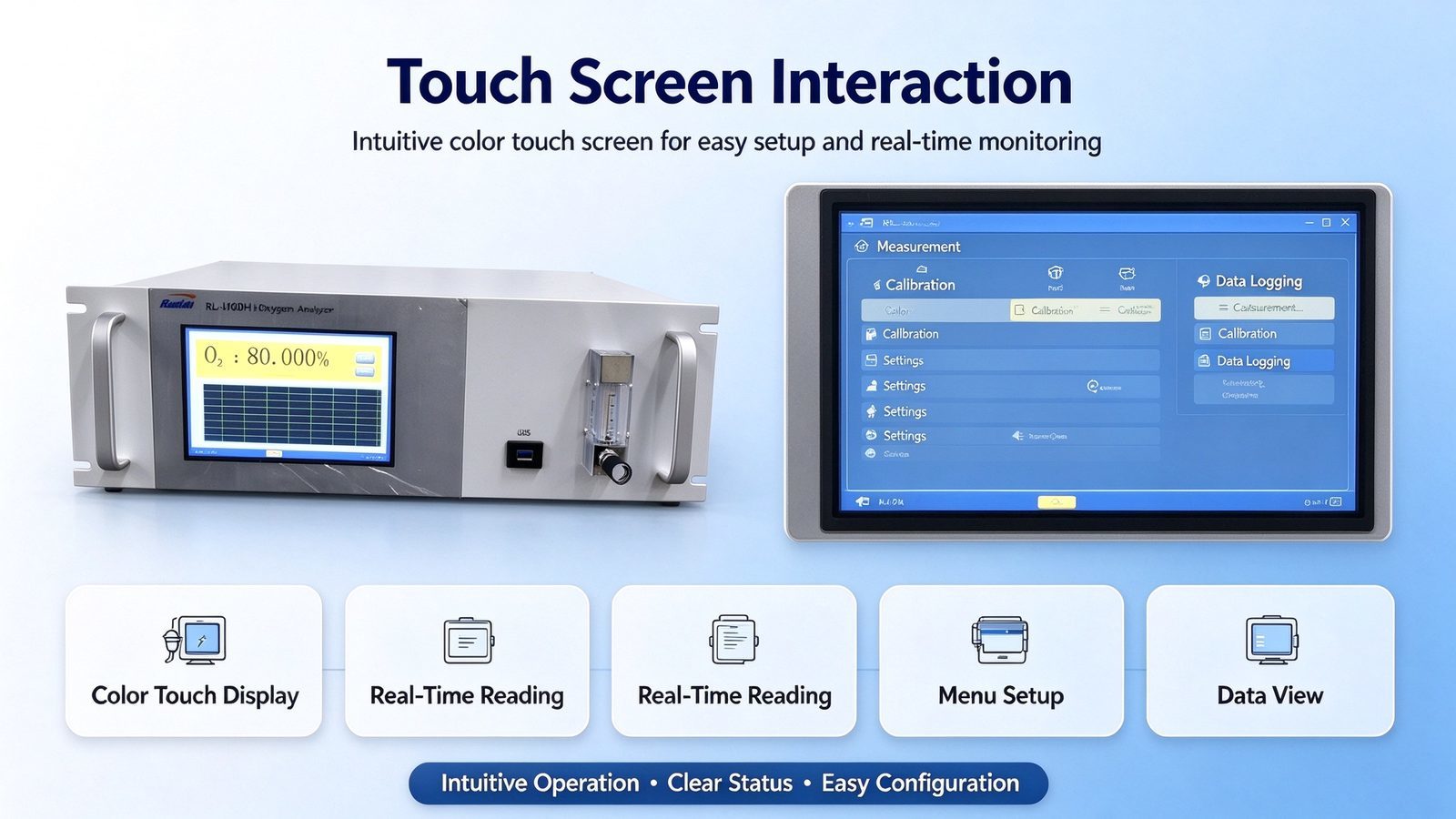

Intelligent Touch Control and Multi-Interface Display
Features a full Chinese touch menu, supports parameter setting, calibration, and testing. It can display real-time measurement values, historical curves, and system status simultaneously, making operation intuitive and convenient.

Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion

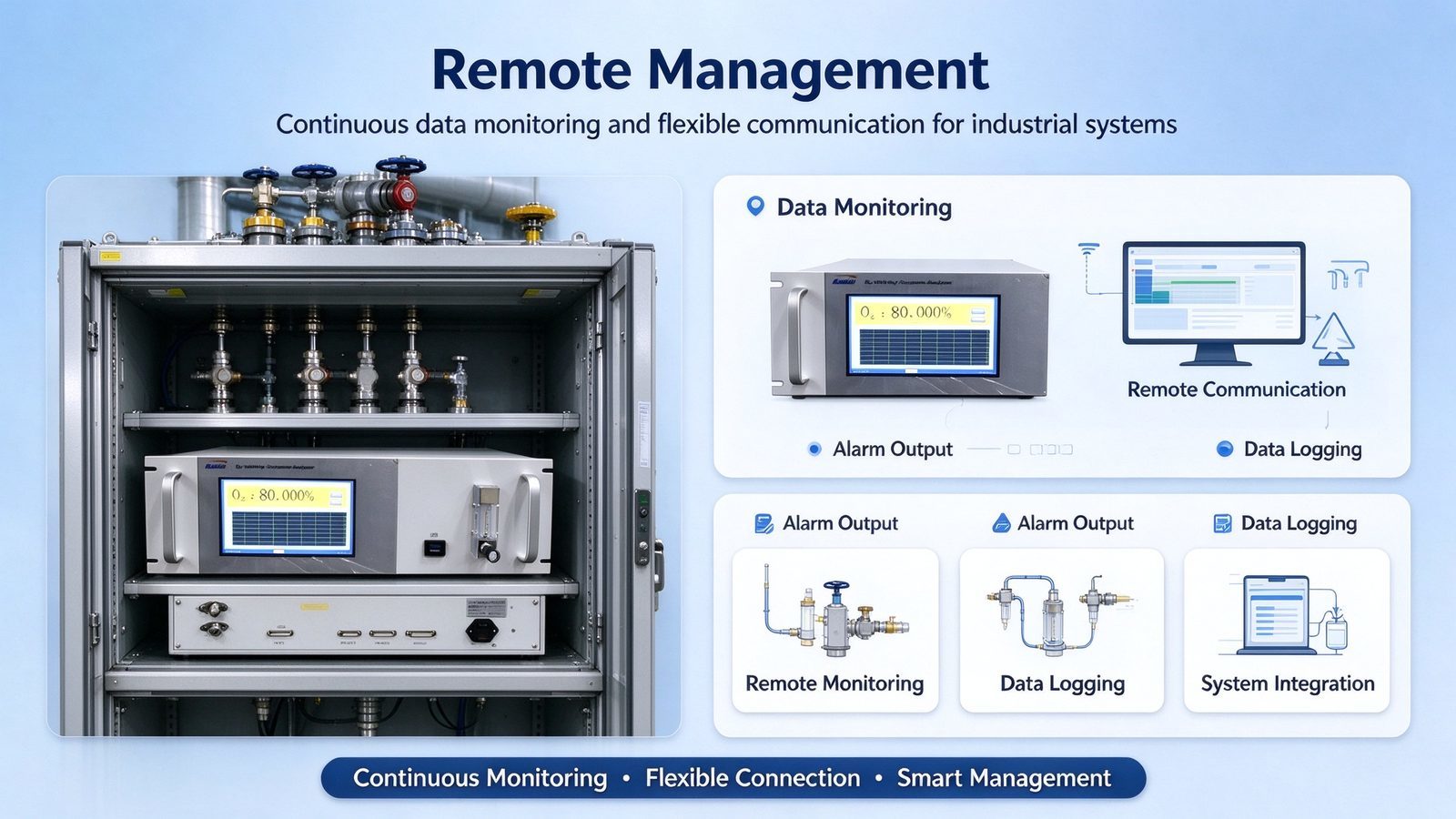

Data Storage and Remote Communication
Features automatic scheduled storage and data traceability. Supports USB interface for additional storage, with optional Ethernet connection for wide-area network communication and remote monitoring.Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion

High-Precision Sensing and Intelligent Compensation
Equipped with imported sensors for fast response and accurate measurement. Built-in temperature and pressure compensation effectively overcomes the impact of environmental and sample gas conditions on measurement results.Metal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D IonMetal Oxygen O2 Gas Analyzer 0.00%-99.99% Range Fast Response Meter 3D Ion
