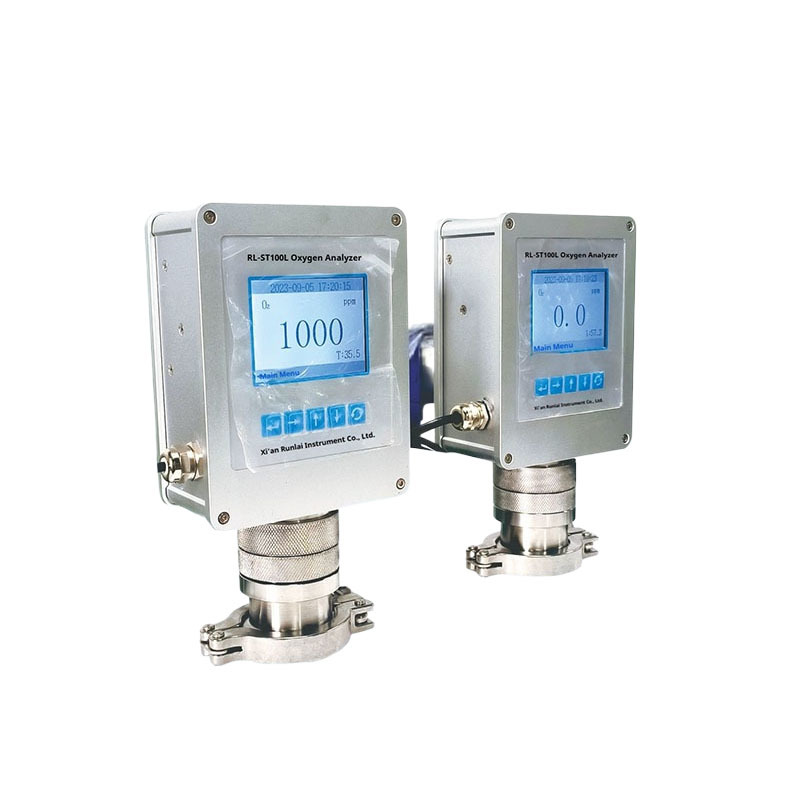

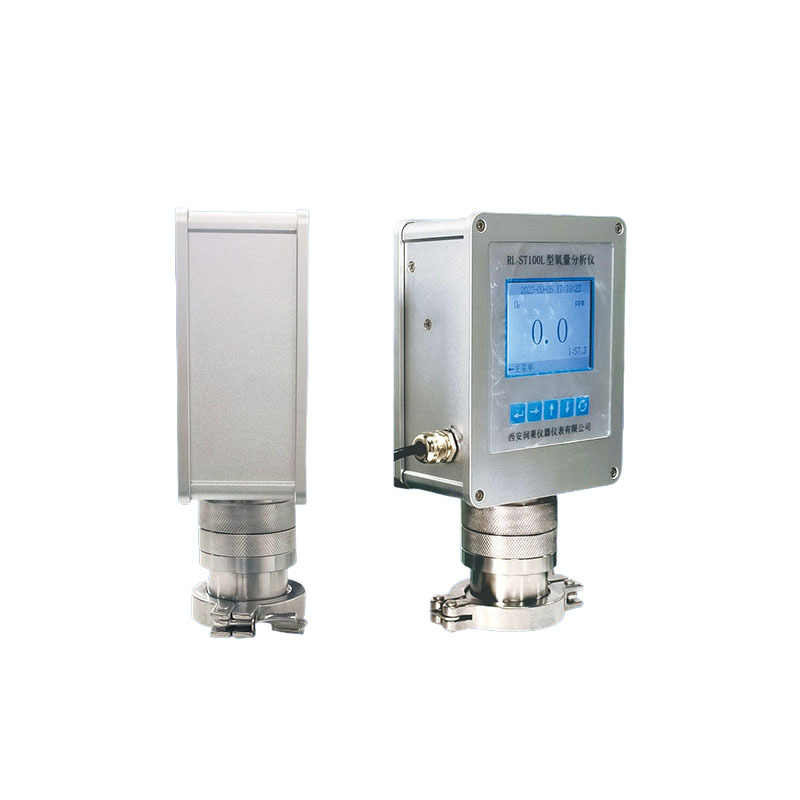

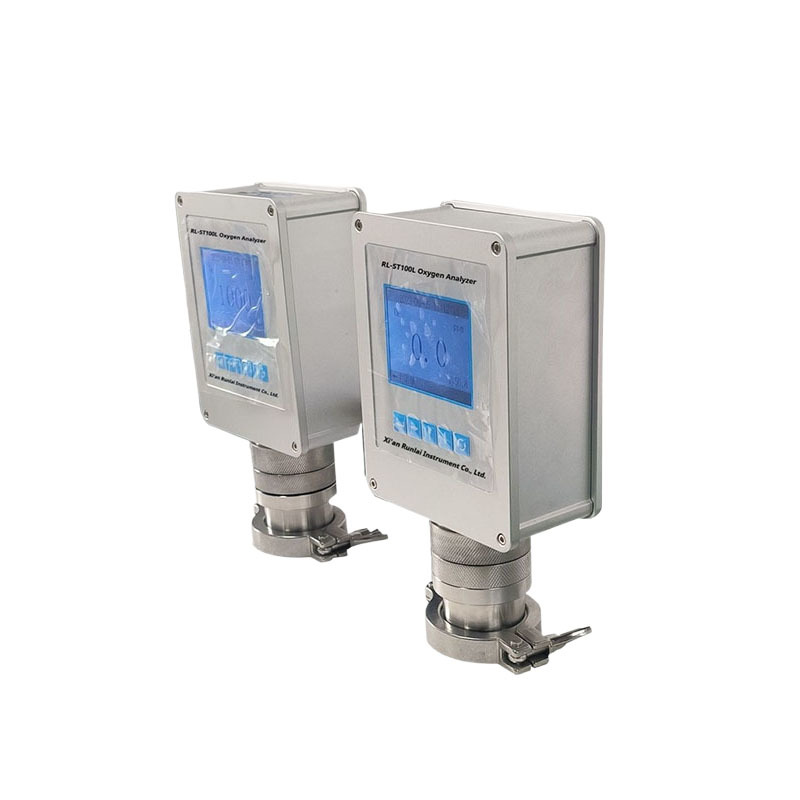

Digital LCD Trace Oxygen Gas Analyzer Electrochemical O2 Gas Meter With Alarm
Digital LCD Trace Oxygen Gas Analyzer Electrochemical O2 Gas Meter With Alarm
Digital LCD Trace Oxygen Gas Analyzer Electrochemical O2 Gas Meter With Alarm
Digital LCD Trace Oxygen Gas Analyzer Electrochemical O2 Gas Meter With Alarm
Digital LCD Trace Oxygen Gas Analyzer Electrochemical O2 Gas Meter With Alarm
Digital LCD Trace Oxygen Gas Analyzer Electrochemical O2 Gas Meter With Alarm
Digital LCD Trace Oxygen Gas Analyzer Electrochemical O2 Gas Meter With Alarm
Digital LCD Trace Oxygen Gas Analyzer Electrochemical O2 Gas Meter With Alarm
Digital LCD Trace Oxygen Gas Analyzer Electrochemical O2 Gas Meter With Alarm
Digital LCD Trace Oxygen Gas Analyzer Electrochemical O2 Gas Meter With Alarm
Specifications
type :
Oxygen Detector
MOQ :
1
Accuracy Class :
High Accuracy
Certification :
ISO certification
Price :
Negotiable
Packaging Details :
Export Standard
Delivery Time :
appointed time
Alarm Mode :
Sound
Payment Terms :
L/C、D/A、D/P、T/T
Place of Origin :
Xi'an, Shaanxi, China
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Target Gas :
Oxygen
Brand Name :
Runlai
Description

glove compartment Digital LCD Trace Oxygen Gas Analyzer , Electrochemical O2 Meter with Alarm

Technical Specifications
Measurement Principle Electrochemical
Measurement Range 0.00–10/100/1000PPm
Resolution 0.01ppm / 0.1ppm
Accuracy ≤±3%FS (0.00–10PPm) ≤±2%FS (0–100PPm) ≤±2%FS (0–1000PPm)
Repeatability ≤±1%
Stability Zero drift ≤±1%FS/7d Range drift ≤±1%FS/7d
Sample Gas Flow Rate 400+50ml/min
Response Time T90≤15 seconds
Sample Gas Pressure 0.05 MPa ≤ inlet pressure ≤ 0.25MPa
Operating Environment Temperature: –15°C～+45°C Humidity: ≤90%RH
Power Supply 24VDC

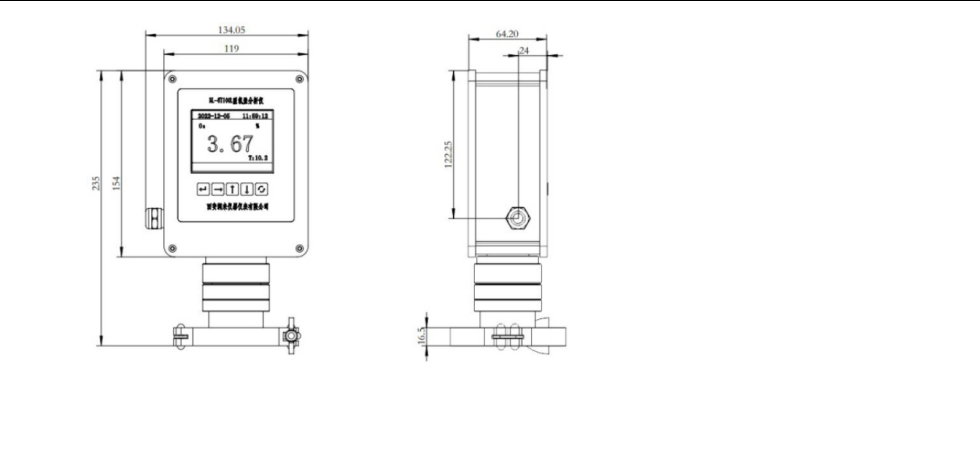

Dimensions 235mmX135mmX64.2mm (height*width*depth)
Key Features
  • The instrument features a fully Chinese menu interface, making it easy to understand, simple, and reliable. It provides self-alarm when limits are exceeded (buzzer and screen display), and the control mode can be set as desired.
  • Imported sensors are used, offering long lifespan, high accuracy, and fast response.
  • With automatic storage function at set intervals when unattended, stored data can be viewed at any time.
  • Built-in temperature compensation minimizes the impact of sample gas temperature and environmental changes on measurement accuracy.
  • A new type of gas flow stabilization system is used, featuring advanced technology, high accuracy, fast response, stable performance, comprehensive functions, easy operation, and continuous gas analysis process.
Applications

Portable and rapid detection and analysis of trace amounts of oxygen in air separation nitrogen production, chemical processes, protective gases for high-temperature sintering furnaces in magnetic materials, protective gases in the electronics industry, as well as in glass, tank cars, nitrogen-filled food packaging bags or gas cylinders, the construction materials industry, and various mixed gases. (Glove box oxygen analyzer)
