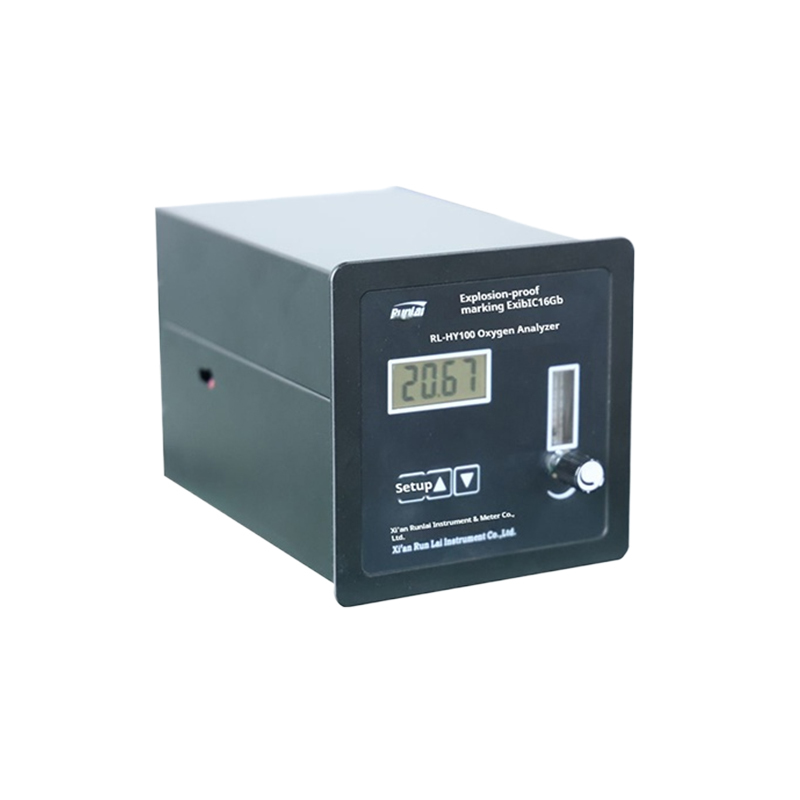

Intrinsically Safe Hydrogen Oxygen Gas Analyzer Explosion Proof With 24VDC Supply
Intrinsically Safe Hydrogen Oxygen Gas Analyzer Explosion Proof With 24VDC Supply
Intrinsically Safe Hydrogen Oxygen Gas Analyzer Explosion Proof With 24VDC Supply
Intrinsically Safe Hydrogen Oxygen Gas Analyzer Explosion Proof With 24VDC Supply
Intrinsically Safe Hydrogen Oxygen Gas Analyzer Explosion Proof With 24VDC Supply
Intrinsically Safe Hydrogen Oxygen Gas Analyzer Explosion Proof With 24VDC Supply
Specifications
MOQ :
1
type :
Oxygen Detector
Brand Name :
Runlai
Delivery Time :
appointed time
Accuracy Class :
High Accuracy
Certification :
ISO certification
Place of Origin :
Xi'an, Shaanxi, China
Payment Terms :
L/C、D/A、D/P、T/T
Target Gas :
Oxygen
Alarm Mode :
Sound
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Price :
Negotiable
Packaging Details :
Export Standard
Description

Intrinsically Safe Explosion Proof High Accuracy Oxygen Analyzer with 24VDC Supply Hydrogen Oxygen Analyzer

Product Specifications
Measurement principleElectrochemistry
Measurement range0.00–2.00% / 25.00% (Range can be selected arbitrarily)
Accuracy±1%F.S
Repeatability±1%F.S
Stability±0.5%F.S/7 days
Response timeT90 ≤ 10 seconds
Contact capacity120VAC, 1A; 24VDC, 1A
Output signal4–20mA current output
Power supply24VDC

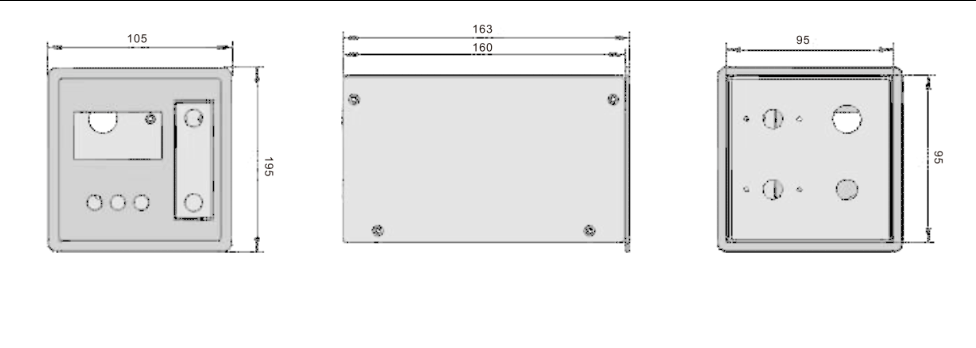

Dimensions145mm (width) × 145mm (height)
Opening dimensions133mm (width) × 133mm (height)
Explosion-proof ratingEx ib IIC T6 Gb
Weight1.0kg
Required grid parametersVo ≤ 28VDC, Io ≤ 93mA, Cp ≤ 0.02uF, Lp ≤ 1mH
Service life>6 years (Under normal operating conditions)
Gas interfaceΦ3 stainless steel pipe (Can be customized according to customer requirements)
Installation methodEmbedded installation
Product Features
  • Imported electrochemical sensor, featuring long life, high accuracy, and fast response;
  • Small size and light weight, easy to install;

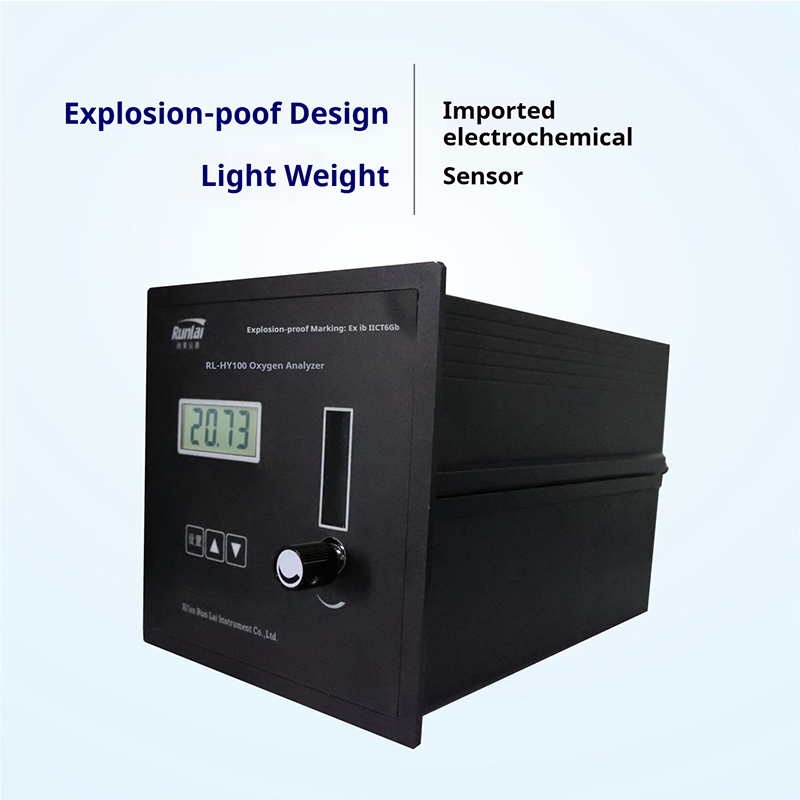

  • Split explosion-proof design;

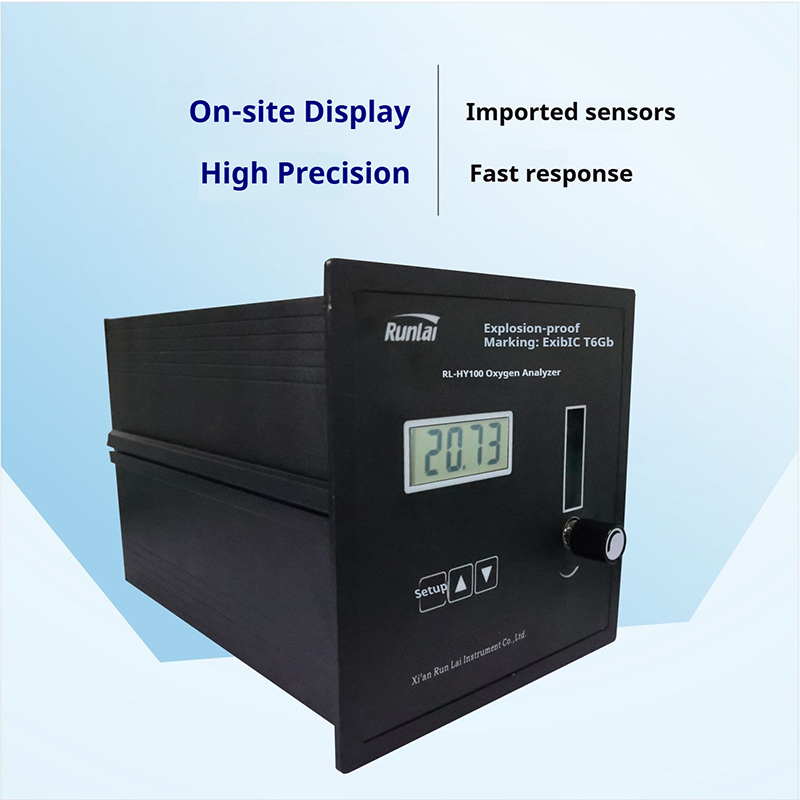

  • On-site display function with primary meter;
  • Upper and lower limit control points can be set arbitrarily within the full range;
  • Alarm points can be set arbitrarily within the full range.
Application areas

Online detection and analysis of oxygen content in industrial production processes such as fertilizers, petrochemicals, air separation and biofermentation, both in intrinsically safe explosion-proof and non-explosion-proof environments.
