Portable Magnetic Oxygen Gas Analyzer High Precision Digital LCD Display O2 Detector
Portable Magnetic Oxygen Gas Analyzer High Precision Digital LCD Display O2 Detector
Portable Magnetic Oxygen Gas Analyzer High Precision Digital LCD Display O2 Detector
Portable Magnetic Oxygen Gas Analyzer High Precision Digital LCD Display O2 Detector
Portable Magnetic Oxygen Gas Analyzer High Precision Digital LCD Display O2 Detector
Portable Magnetic Oxygen Gas Analyzer High Precision Digital LCD Display O2 Detector
Specifications
type :
Oxygen Detector
Accuracy Class :
High Accuracy
Brand Name :
Runlai
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
MOQ :
1
Place of Origin :
Xi'an, Shaanxi, China
Delivery Time :
appointed time
Certification :
ISO certification
Price :
Negotiable
Packaging Details :
Export Standard
Payment Terms :
L/C、D/A、D/P、T/T
Target Gas :
Oxygen
Alarm Mode :
Sound
Description

Portable Magnetic Oxygen Analyzer High Precision Digital Oxygen Detector, LCD Display & Sound Alarm, Customizable O2 Measurement

Product specs
Name number
Measurement principle 3D ion flow/magnetic oxygen (optional depending on customer requirements)
Measurement range 10.00–99.99% (range can be selected arbitrarily)
Accuracy ≤±2%F.S
Resolution 0.01%
Repeatability ≤±1%F.S
Stability Zero drift ≤±2%F.S/7d; Range drift ≤±2%F.S/7d
Response time T90 ≤15 S
Storage interval 1S–99min (adjustable)
Number of storage points 1824
Instrument lifespan 6 years (under proper operating conditions)
Charging voltage 220VAC, 50Hz; charger comes with built-in protection features
Total power consumption ≤25W

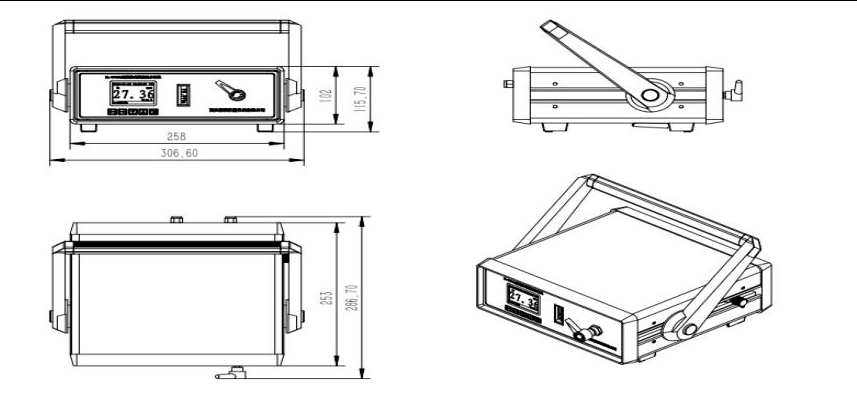

Dimensions 306mm (width) × 115mm (height) × 253mm (depth)
Inlet and outlet ports Φ6 (outer diameter) stainless steel tubing (customizable sizes available)
Weight Approximately 3Kg
Operating temperature –25°C to +55°C
Humidity ≤90%RH
Inlet pressure 0.05 MPa ≤ inlet pressure ≤ 0.25Mpa
Sample gas flow rate 400±50ml/min
Sample gas requirements Dust-free, water-free, oil-free
Core strengths
  • The instrument features a fully Chinese-language menu for easy and reliable operation. It automatically alarms when limits are exceeded (via buzzer and screen display), and alarm settings can be customized.
  • For unattended operation, it has a scheduled automatic data storage feature, allowing for real-time data retrieval.
  • Built-in temperature compensation minimizes the impact of sample gas temperature and environmental changes on measurement accuracy.
  • Utilizes a new type of gas flow stabilization system, offering advantages such as advanced technology, high precision, fast response, stable performance, comprehensive functionality, ease of operation, and continuous gas analysis.
  • Equipped with a high-capacity battery, providing over 30 hours of continuous operation on a single charge.
  • Optional built-in vacuum pump.
Application areas

Widely used in industries such as air separation, PSA oxygen production equipment, chemical and metallurgical industries, healthcare, tank trucks, oxygen tanks, glass, and building materials for portable and rapid oxygen content detection and analysis.

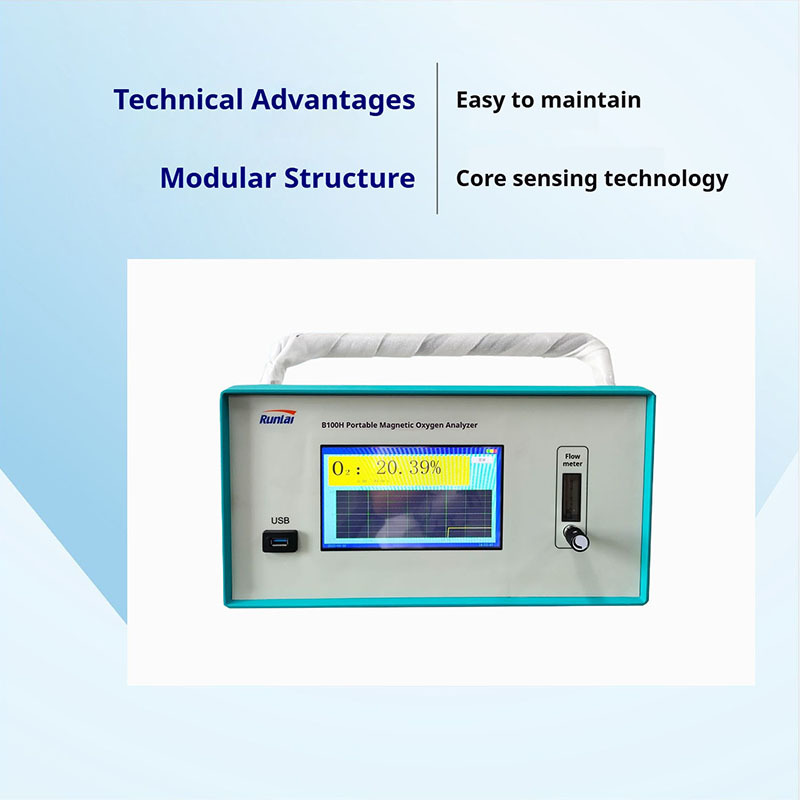

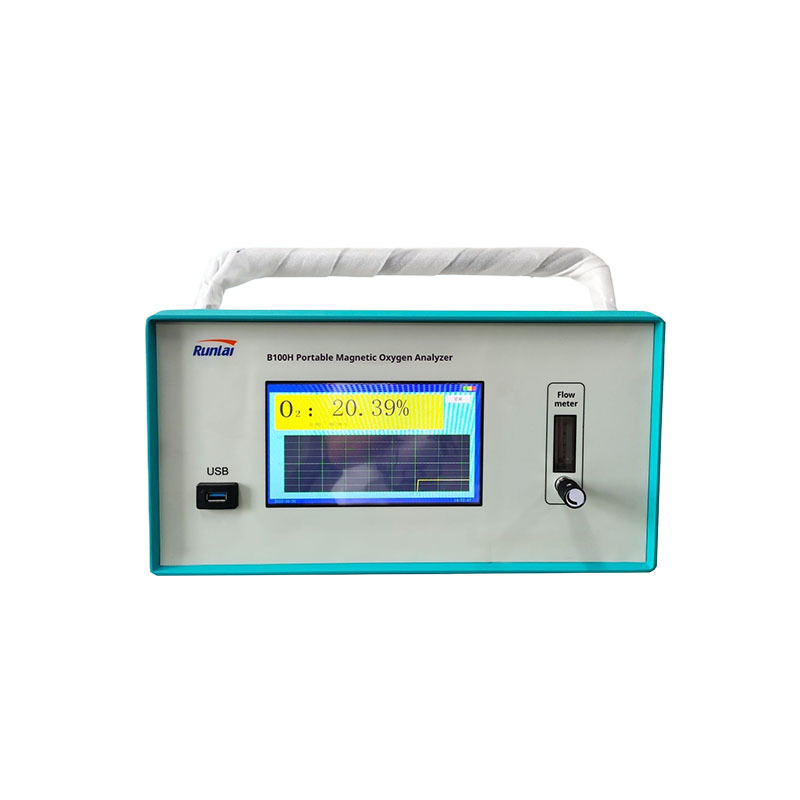

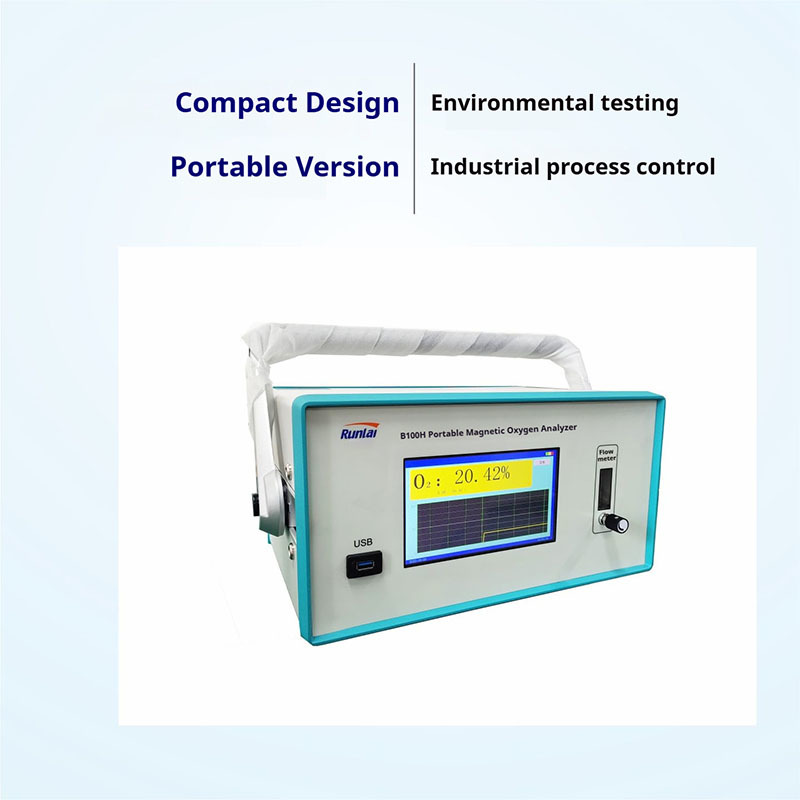

Product pictures
