Explosion Proof Oxygen Gas Analyzer Exd IICT6 Certification Online Continuous O2 Monitoring For Chemical
Explosion Proof Oxygen Gas Analyzer Exd IICT6 Certification Online Continuous O2 Monitoring For Chemical
Explosion Proof Oxygen Gas Analyzer Exd IICT6 Certification Online Continuous O2 Monitoring For Chemical
Explosion Proof Oxygen Gas Analyzer Exd IICT6 Certification Online Continuous O2 Monitoring For Chemical
Specifications
type :
Oxygen Detector
Place of Origin :
Xi'an, Shaanxi, China
Certification :
ISO certification
Packaging Details :
Export Standard
Accuracy Class :
High Accuracy
Brand Name :
Runlai
MOQ :
1
Delivery Time :
appointed time
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Payment Terms :
L/C、D/A、D/P、T/T
Target Gas :
Oxygen
Alarm Mode :
Sound
Price :
Negotiable
Description

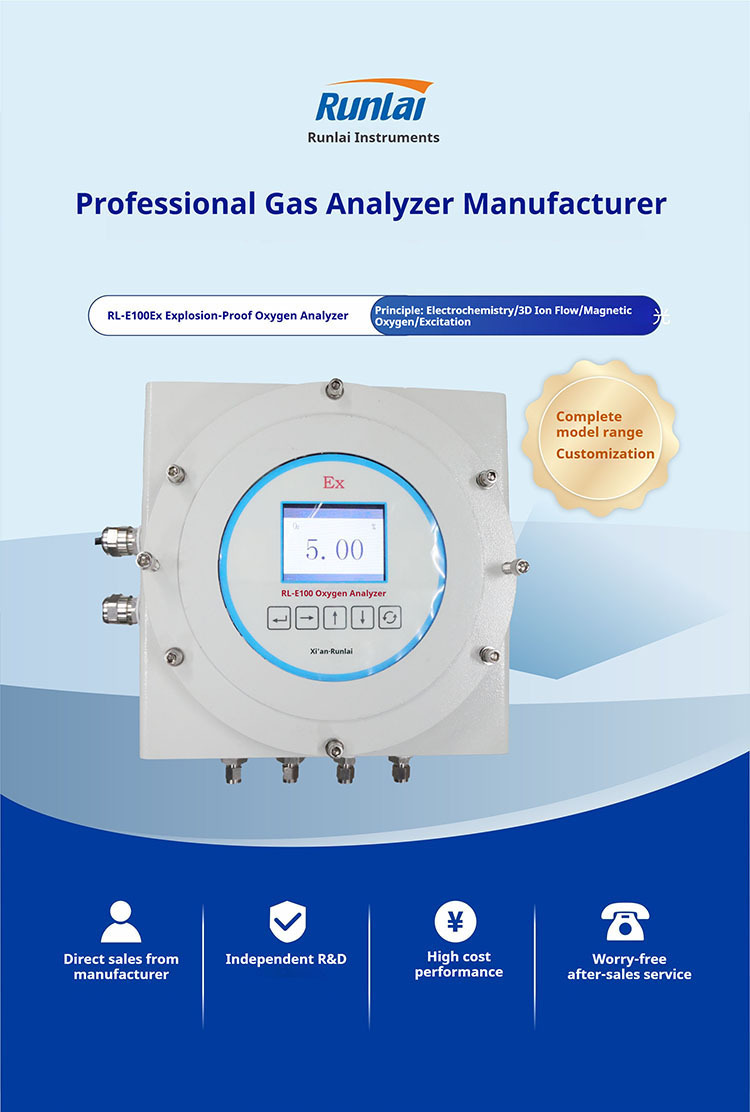

explosion-proof oxygen analyzer, Exd IICT6 certification, online continuous O2 monitoring for chemical, Runlai E100EX

Product Specifications
Parameter Value
Measurement principle Electrochemical/3D ion flow/magnetic oxygen/laser (optional based on customer requirements)
Measurement range 0.00PPm to 1 (range selectable)
Accuracy ≤±3%FS (0.00~10ppm)
≤±2%FS (0~100ppm)
≤±2%FS (0~1000ppm)
≤±1%FS (1000ppm~25%)
Stability Zero drift ≤ ±1% F.S/7d; Range drift ≤ ±1% F.S/7d
Sample gas flow rate (400±50) mL/min; Repeatability ≤ ±0.5%
Storage interval Seconds (adjustable); Number of storage points: Millions+
Sample gas pressure 0.05MPa ≤ inlet pressure ≤ 0.25MPa
Analog output (4~20) mA standard signal
Digital output Standard RS485/RS232 communication ports for two-way communication with computer
Contact output Dual relay outputs: 220VAC, 10A or 24VDC, 2A
Operating environment Temperature: −10℃~+45℃; Humidity: ≤90% RH
Power supply (220±22) VAC, (50±5) Hz

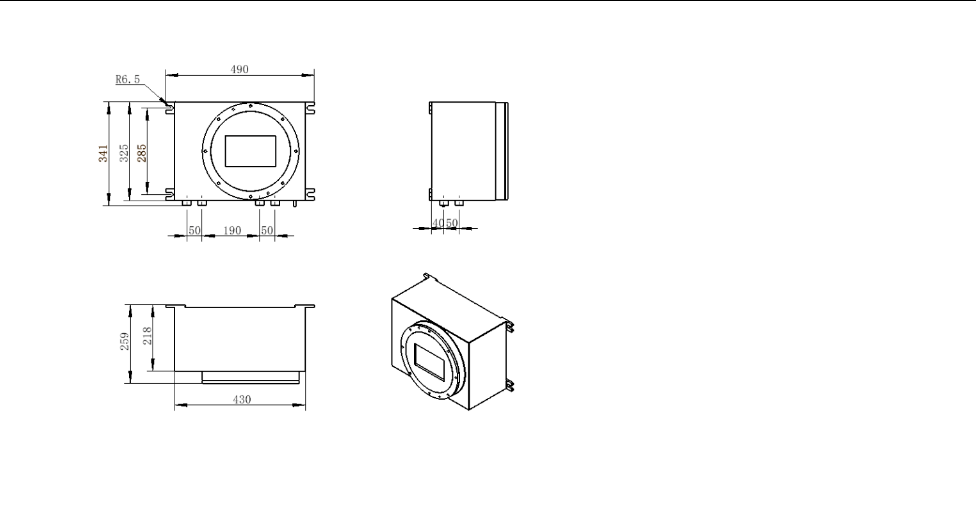

Dimensions 210mm (width) × 154mm (height) × 210mm (depth)
Weight Approximately 15Kg
Explosion-proof rating Ex db IIC T6 Gb
Mounting options Wall-mounted or horizontal installation
Key Features

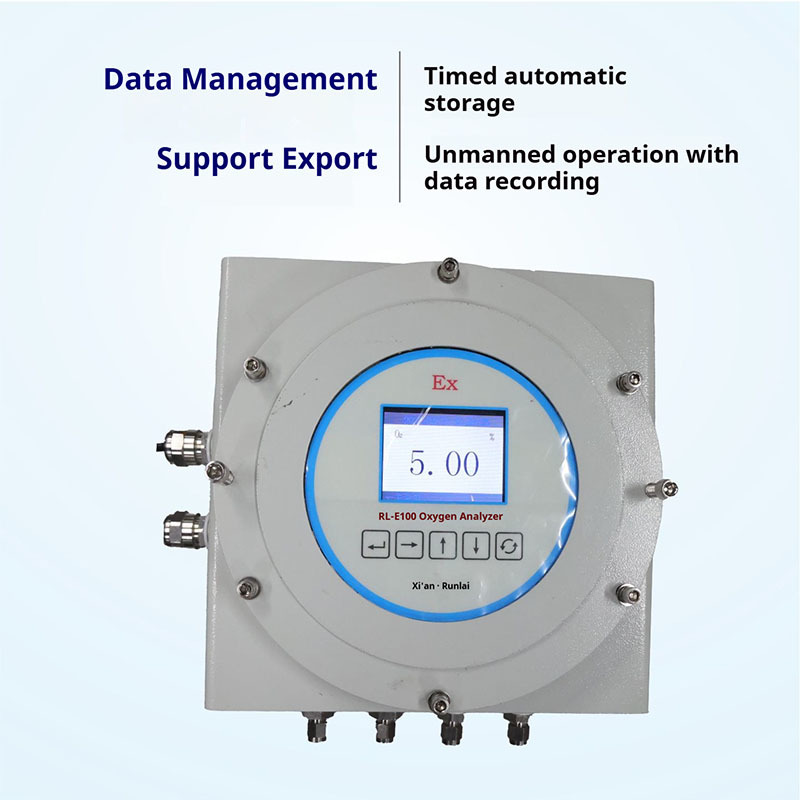

  • Features high-performance embedded integrated touch and TFT true-color display screen;
  • Can simultaneously display measurement values, historical curves, measurement range, status, and various parameter setting interfaces;
  • Uses imported sensors with long lifespan, high sensitivity, and fast response speed;
  • Explosion-proof design with fully Chinese user interface menu, and infrared remote control for intuitive and convenient operation;
  • New type of gas path flow stabilization system: features advanced technology, high precision, fast response, stable performance, and continuous gas analysis process.
Application areas

Widely used as protective gas in high-temperature sintering furnaces for air separation nitrogen production, storage, chemical processes, and magnetic materials; protective gas in the electronics industry; and for online oxygen content analysis in the glass and building materials industries.

Explosion Proof Oxygen Gas Analyzer Exd IICT6 Certification Online Continuous O2 Monitoring For Chemical
Explosion Proof Oxygen Gas Analyzer Exd IICT6 Certification Online Continuous O2 Monitoring For ChemicalExplosion Proof Oxygen Gas Analyzer Exd IICT6 Certification Online Continuous O2 Monitoring For Chemical
