Industrial Zirconia Flue Gas Oxygen Analyzer T90 15s Rapid Response Online Oxygen Analyzer
Industrial Zirconia Flue Gas Oxygen Analyzer T90 15s Rapid Response Online Oxygen Analyzer
Industrial Zirconia Flue Gas Oxygen Analyzer T90 15s Rapid Response Online Oxygen Analyzer
Industrial Zirconia Flue Gas Oxygen Analyzer T90 15s Rapid Response Online Oxygen Analyzer
Specifications
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
type :
Oxygen Detector
Packaging Details :
Export Standard
Place of Origin :
Xi'an, Shaanxi, China
Delivery Time :
appointed time
Accuracy Class :
High Accuracy
MOQ :
1
Brand Name :
Runlai
Certification :
ISO certification
Price :
Negotiable
Payment Terms :
L/C、D/A、D/P、T/T
Target Gas :
Oxygen
Alarm Mode :
Sound
Description

ndustrial Zirconia Flue Gas Oxygen Analyzer Runlai Y100, Online O2 Detector with 1%F.S High Precision, T90 15s Rapid Response, 0.4-1.5m Custom Insertion Probe

Product Specifications
  • Measurement principle: Zirconia;
  • Measurement range: 0.00PPm to 25.00% (automatic switching);
  • Accuracy: ±1%FS;
  • Repeatability: ±1%FS;
  • Stability: ±0.5%FS/7 days;
  • Preheating time: ≤15 minutes (zirconia cell potential);
  • Operating furnace temperature: 750°C (zirconia);
  • Response time: τ90 ≤15 seconds;
  • Sample gas flow rate: (400±50)ml/min;
  • Sample gas pressure: 0.05Mpa ≤ inlet pressure ≤ 0.25Mpa;
  • Analog output: Dual analog signal output of 4–20mA, 0-10V;
  • Digital output: Standard RS485/RS232 communication port for two-way communication with computers;
  • Contact output: Dual relay outputs of 220VAC, 10A or 24VDC, 2A;
  • Operating power supply: (220±22)VAC, (50±5)Hz;
  • Dimensions: 267mm (width) x 143 (height) x 305mm (depth);
  • Opening dimensions: 220mm (width) x 128mm (height);
  • Weight: Approximately 3.0kg;
  • Service life: >6 years (under normal operating conditions);

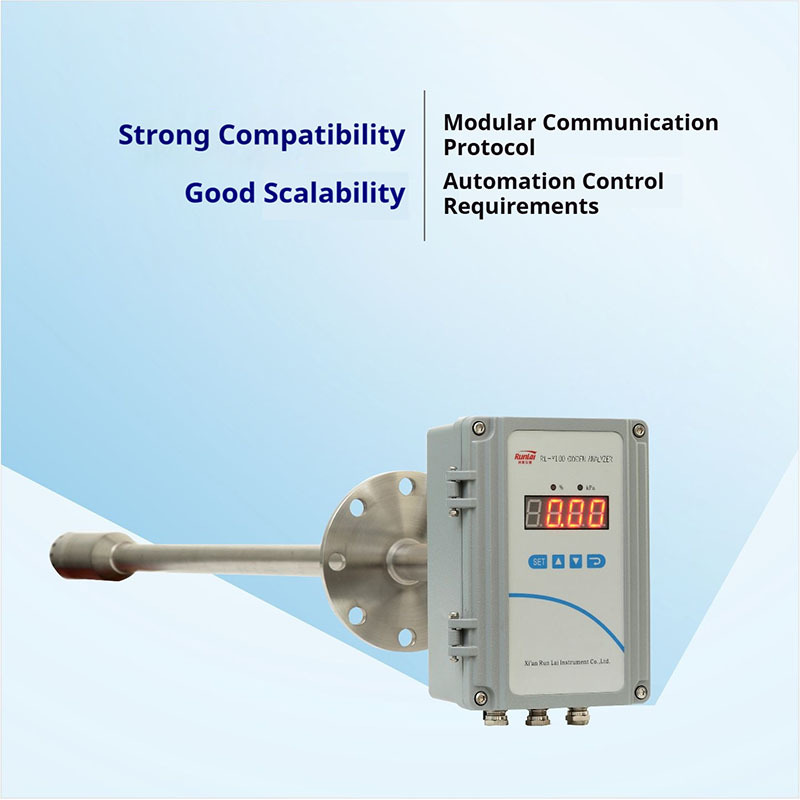

  • Mounting method: Plug-in type;
  • Detector lengths available: 0.4m, 0.6m, 0.8m, 1.0m, 1.2m, 1.5m;
Key Features
  • Integrated design, compact size, lightweight, simple structure, and reasonable layout;
  • Original imported zirconia sensors featuring fast response, high measurement accuracy, long service life, and extended calibration intervals;
  • Can display oxygen content, date, time, and other parameters simultaneously;
  • Alarm points can be set arbitrarily within the full range; temperature out-of-control alarm;
  • Accurate measurement from ppm to % achievable with a single calibration point in the air, making calibration simple and convenient;
  • Built-in original imported sampling pump with long life and reliable operation (optional);
  • Measurement does not require reference gas and is not affected by oxygen concentration in the working environment;
  • Convenient and fast communication protocol selection, compatible with most oxygen analyzer manufacturers' protocols.
  • Automatic analysis of oxygen content in flue gases from power, metallurgy, heating, building materials, electronics, power plants, industrial boilers, and various combustion systems.
