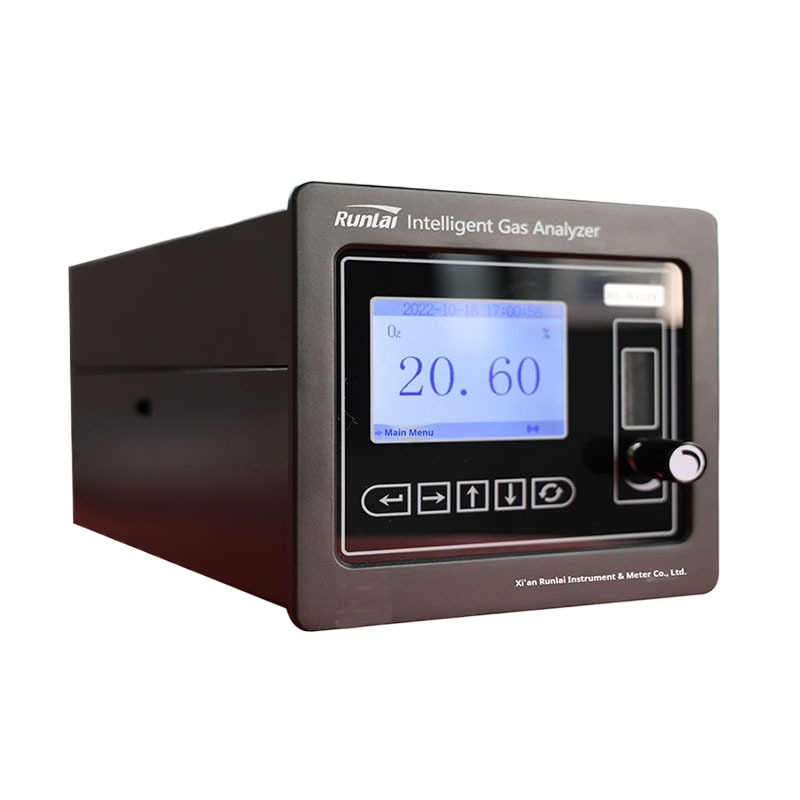

Metal Portable O2 Purity Analyzer For Gas Measurement
Metal Portable O2 Purity Analyzer For Gas Measurement
Metal Portable O2 Purity Analyzer For Gas Measurement
Metal Portable O2 Purity Analyzer For Gas Measurement
Metal Portable O2 Purity Analyzer For Gas Measurement
Metal Portable O2 Purity Analyzer For Gas Measurement
Specifications
MOQ :
1
Place of Origin :
Xi'an, Shaanxi, China
Payment Terms :
L/C、D/A、D/P、T/T
Accuracy Class :
High Accuracy
Target Gas :
Oxygen
Alarm Mode :
Sound
Delivery Time :
appointed time
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
type :
Oxygen Detector
Brand Name :
Runlai
Certification :
ISO certification
Price :
Negotiable
Packaging Details :
Export Standard
Description

High Accuracy Metal Portable O2 Purity Analyzer for Gas Measurement

Overview

The oxygen analyzer is a precision instrument used to measure the oxygen content in industrial processes and is widely applied in various industrial fields. Its main function is to detect and control the oxygen concentration in industrial processes to ensure the safety and efficiency of the production process.

Technical Specifications

Parameter Value
Measurement Principle Electrochemical (zirconia current type/magnetic mechanical type, etc.) (optional according to customer requirements)
Measurement Range 0.00–25.00% (range can be selected arbitrarily)
Accuracy ±1%FS
Repeatability ±1%FS
Stability ±1%FS/7 days
Sample Gas Flow Rate 400±50ml/min
Response Time T90≤15 seconds
Analog Output 4–20mA standard output signal, load resistance less than 500 ohms (0–10V optional)
Digital Output Standard RS485/RS232 communication port, enabling two-way communication with computers
Contact Output Dual relay outputs of 220VAC, 10A or 24VDC, 2A
Sample Gas Pressure 0.05 MPa ≤ inlet pressure ≤ 0.25MPa
Operating Environment Temperature: –15°C to +45°C; Humidity: ≤90%RH
Power Supply 220–240VAC, 50/60Hz

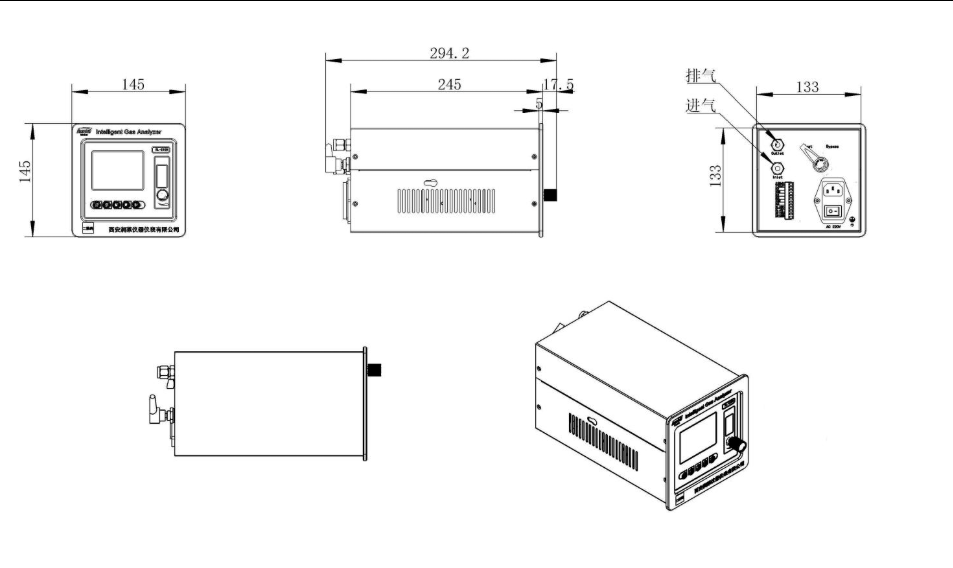

Dimensions 168mm (width) × 168mm (height) × 265mm (depth); 138mm (width) × 138mm (height) × 265mm (depth)
Mounting Dimensions 153mm (width) × 153mm (height)
Weight Approximately 2.5Kg
Service Life >6 years (under normal operating conditions with proper maintenance)
Installation Method Embedded installation

Key Features

  • The instrument features a fully Chinese menu interface, which is easy to understand, simple, and reliable. It includes control contact outputs, automatic alarm for exceeding limits (buzzer and screen display), and allows for custom alarm settings;
  • Imported sensors are used, offering high accuracy and fast response;
  • Automated data storage function during unattended operation, with stored data available for viewing at any time;
  • Built-in temperature compensation to reduce the impact of sample gas temperature and environmental changes on measurement accuracy;

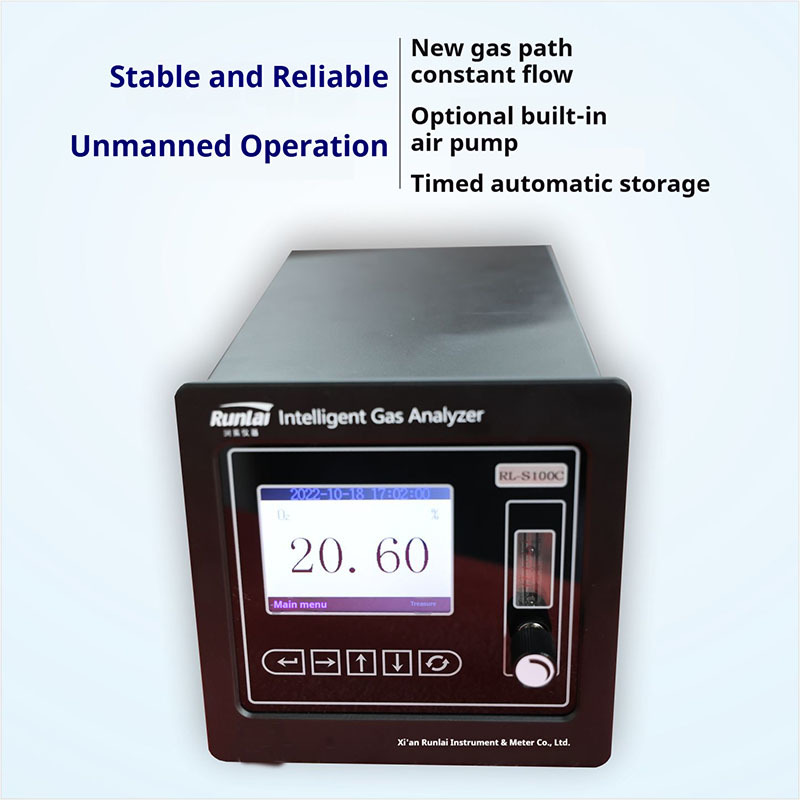

  • Adopts a new type of gas flow stabilization system, featuring advanced technology, high accuracy, fast response, stable performance, comprehensive functionality, easy operation, and continuous gas analysis process;
  • Optional built-in pump.

Applications

Widely used in oxygen content online analysis for air separation nitrogen production, storage, chemical processes, protective gases for high-temperature sintering furnaces in magnetic materials, protective gases in the electronics industry, as well as in the glass and building materials industries.
