Zirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response O2 0.4-1.5m
Zirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response O2 0.4-1.5m
Zirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response O2 0.4-1.5m
Zirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response O2 0.4-1.5m
Zirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response O2 0.4-1.5m
Zirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response O2 0.4-1.5m
Specifications
Model Number :
RL-Y100
Sample Gas Pressure :
0.1 to 0.5 MPa
MOQ :
1
Delivery Time :
appointed time
Applications :
Industrial gas monitoring, environmental analysis, medical, combustion control
Power Supply :
AC 110-240V or DC 12V/24V
Dimensions :
Varies by model, typically 200x150x100 mm
Certification :
ISO certification
Operating Temperature :
-10°C to 50°C
Packaging Details :
Export Standard
Calibration :
Automatic or manual calibration
Payment Terms :
L/C、D/A、D/P、T/T
Measurement Principle :
Electrochemical / Paramagnetic / Zirconia
Sample Gas Flow Rate :
0.5 to 2 L/min
Brand Name :
Runlai
Accuracy :
±0.1% to ±1% (depending on model)
Place of Origin :
Xi'an, Shaanxi, China
Oxygen Concentration Range :
0-100% O2
Price :
Negotiable
Display :
Digital LCD/LED display
Output Signal :
4-20mA, 0-10V, RS485, Modbus
Supply Ability :
Supply Ability: ＞10000 Sets Per Year
Weight :
1.5 to 3 kg
Response Time :
Typically less than 10 seconds
Description

Zirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response T9015S Customizable O2 0.4-1.5m Runlai Y100

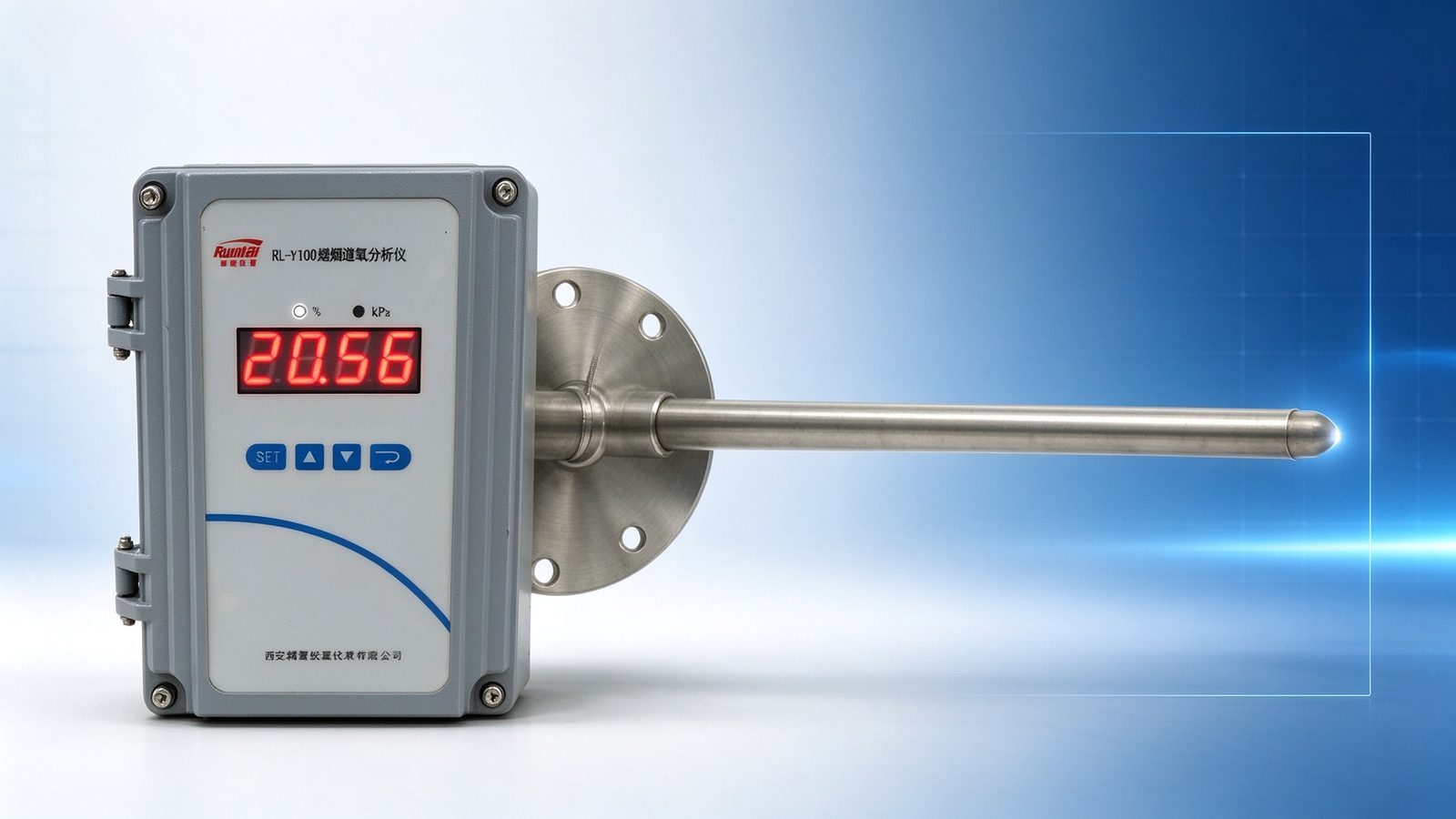

RL-Y100 flue gas oxygen analyzer is a dedicated device for monitoring oxygen concentration in flue gas, with core functions of optimizing combustion efficiency and reducing pollution emissions.Zirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response O2 0.4-1.5m

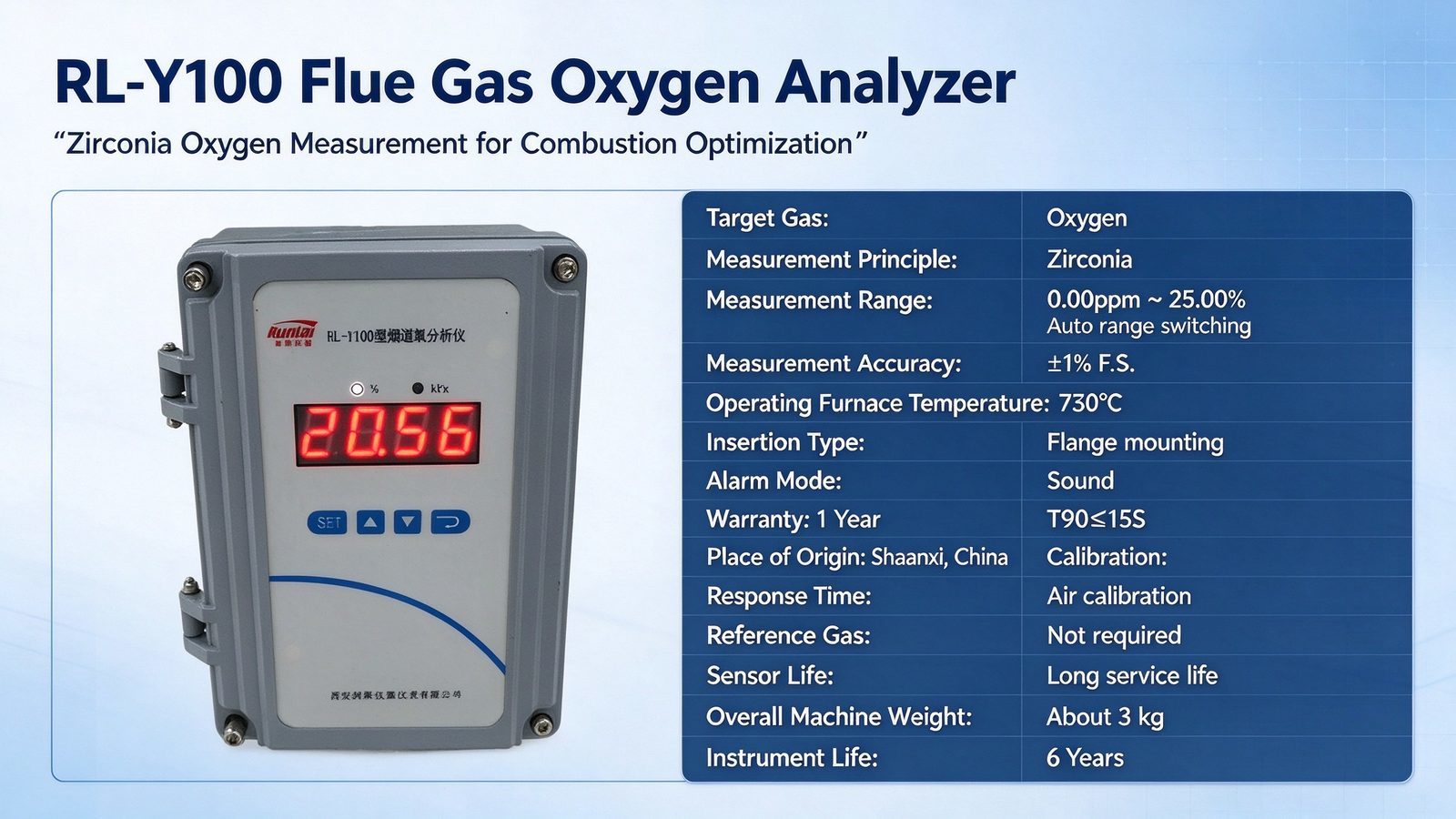

Technical Specifications
  • Measurement Principle: Zirconia
  • Measurement Range: 0.00ppm ~ 25.00% (Auto range switching)
  • Measurement Accuracy: +1%Fs
  • Operating Furnace Temperature: 750°C (Zirconia)Zirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response O2 0.4-1.5m
Application Range

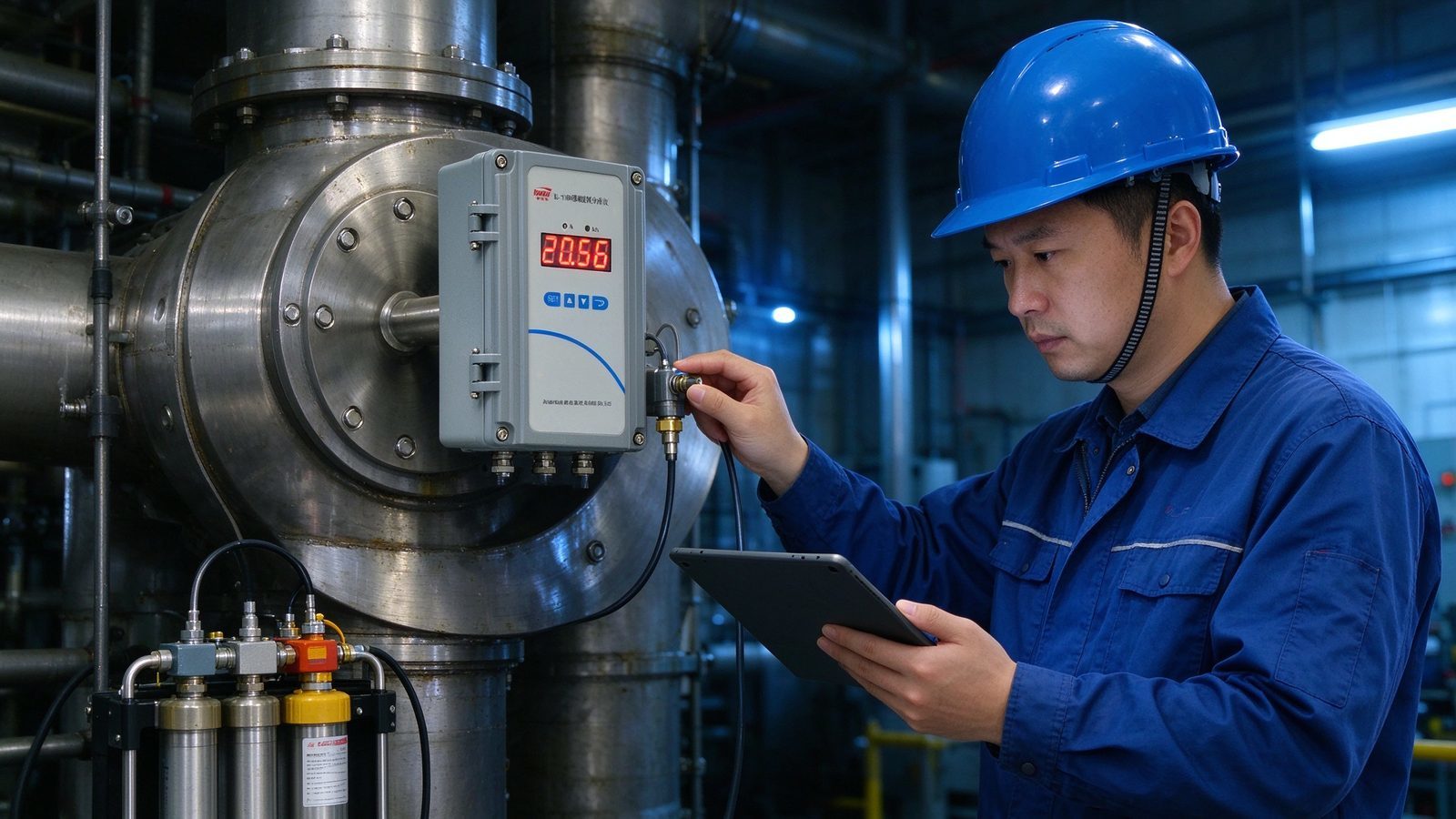

Automatic analysis of oxygen content in flue gas from power, metallurgical, heating, building materials, electronic, power station, industrial boiler and various combustion systems.Zirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response O2 0.4-1.5mZirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response O2 0.4-1.5m

Key Features
  • Integrated design
    • Small volume, light weight, simple structure, reasonable layout.
  • Imported zirconia sensor
    • Fast response, high measurement accuracy,
    • long service life, long calibration cycle, etc.
  • Calibrate through a point in the air
    • Can achieve accurate measurement from PPm to % of the instrument, making its calibration simple and convenient.
  • No reference gas needed for measurement
    • Not affected by the oxygen concentration in the working environment.Zirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response O2 0.4-1.5mZirconia Flue Gas Oxygen Analyzer Detector High Precision 1%F.S Fast Response O2 0.4-1.5m
